T-MOTOR Velox CINE F7 FC+V50A SE 4-in-1 ESC Stack HD Analog Flight Controller Double BEC For RC FPV Racing Freestyle Drone
| Part No.: | CINE-F7-V50A |
| Manufacturer: | T-MOTOR |
Send to a friend
Features
T-MOTOR Velox CINE F7 FC+V50A SE 4-in-1 ESC Stack HD Analog Flight Controller Double BEC For RC FPV Racing Freestyle Drone
Product Details
Specifications
Weight：9g
Size：37.5*40*6.4mm
Installation hole：30.5*30.5/φ4mm
Input voltage：12-27V(3-6S)
Typical application：170-450multi-rotor

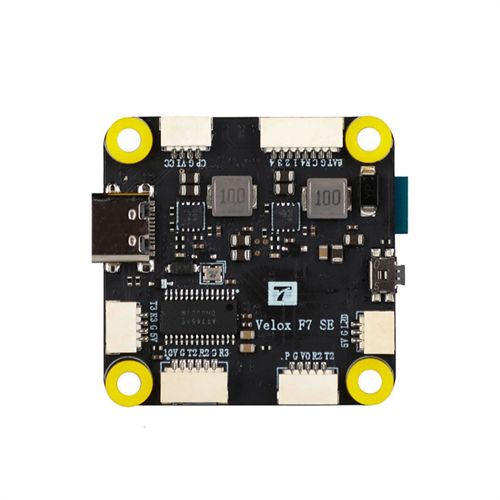

VELOX F7 SE FC
Model：VELOX F7 SE
Firmware：STM32F7X2
Unified target：TMTR-TMOTORVELOXF7
MCU：STM32F722
Gyroscope：ICM-42688-P(SPI)
BEC：5V2A&10V1.5A
Uarts：6
Bluetooth：TMFC
OSD：AT7456E&HD
Black box：128MB
USB：TYPE-C

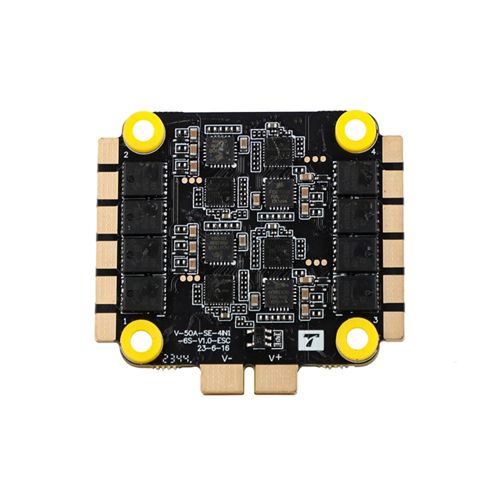

VELOX F7 SE ESC
MCU：AT32F421
Input voltage：3-6S
Current：50A
Peak Current (5S)：60A
Size：41*44.4*5.8mm
Mounting holes：30.5*30.5/Φ4mm
Weight：12.3g
Item Packing
Velox CINE F7 FC+V50A SE 4-in-1 ESC Stack x 1

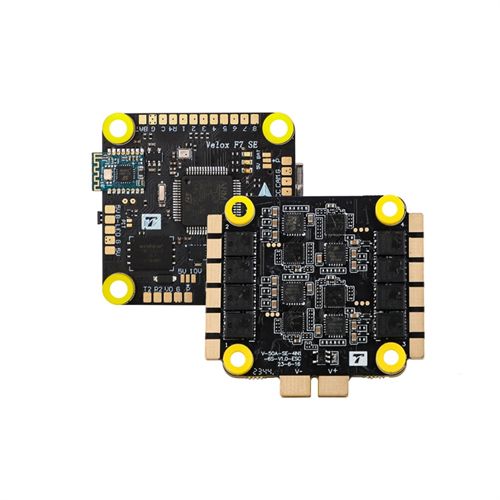

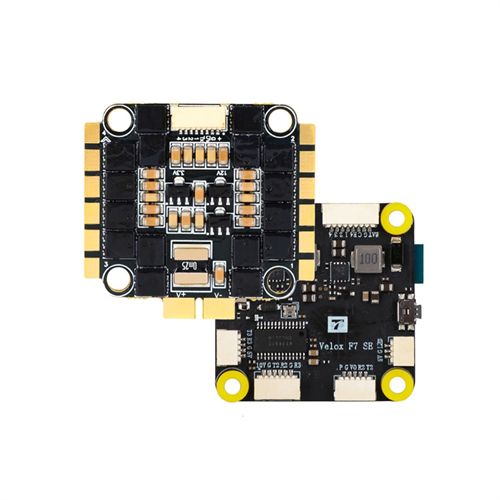

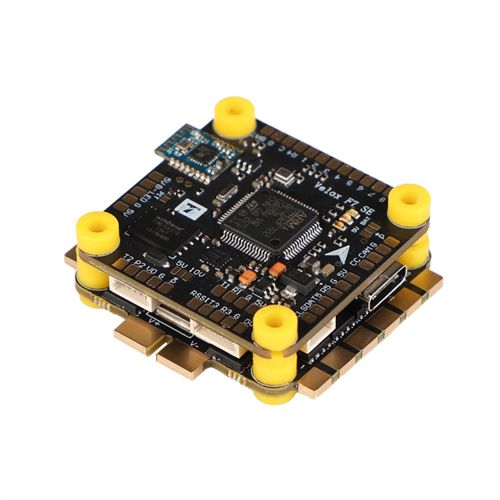

Detailed Images
