IFlight Protek35 HD BNF DJI Beast AIO F7 45A 5.8G Micro Force XING 2203.5 3600KV 4S 3.5inch Cinewhoop Ducted Drone
| Part No.: | ProTek35-DJI |
| Manufacturer: | IFlight |
Send to a friend
Features
- High performance True-AIO Board Beast Whoop F7 AIO 45A to save weight and space
- T700 Quality Carbon (40% more tensile strength compared to common 3K carbon)
- Lightweight one-piece frame design (Less flexibility, more Rigid, more Durable)
- Low Resonance frame construction (Less Jello, more Cinematic footage)
- Butter smooth 2203.5 3600KV (4S)
- Pre-tuned with smooth freestyle setting
Product Details
ProTek35 BNF Specs:
- Board Beast Whoop F7 AIO 45A
- Motor: XING 2203.5 3600KV (4S)

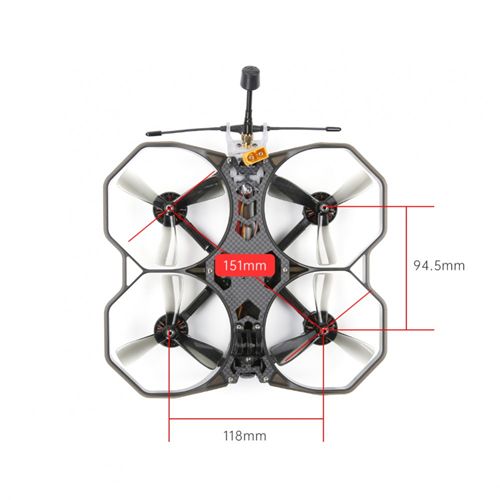

- Wheelbase: 151mm
- Body Size: 118*94.5mmmm
- Bottom plate thickness: 3.5mm
- Top plate thickness: 2mm
- Top and bottom plate spacing: 20mm (aluminum standoff height)
- Propeller size: 3.5 inch
- FC pattern: 25.5*25.5mm / 20*20mmmm
- FPV cam spacing: 20mm
- Weight: 305g (without battery)
FC // Beast F7 AIO
Specification:
- MCU: BGA-STM32F745
- Gyro: MPU6000
- Blackbox: 8Mb Onboard Flash
- BEC output: 5V 2.5A
- Barometer: BMP280
- Connector: Micro-USB
- OSD: AT7456E
- FC Firmware：IFLIGHT_F745_AIO
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensions: 32.5*32.5mm
- Weight: 8.5g
ESC // 45A 2-6S
Specification:
- Uarts: 5
- Current Sensor: Yes
- Input: 2-6S LIPO
- Current scale: 200
- Constant: 45A / Burst: 50A
- BLHeli: BLHeli-S
- Telemetry: no
- ESC Firmware: BlheliS G-H-30
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensions: 32.5*32.5mm

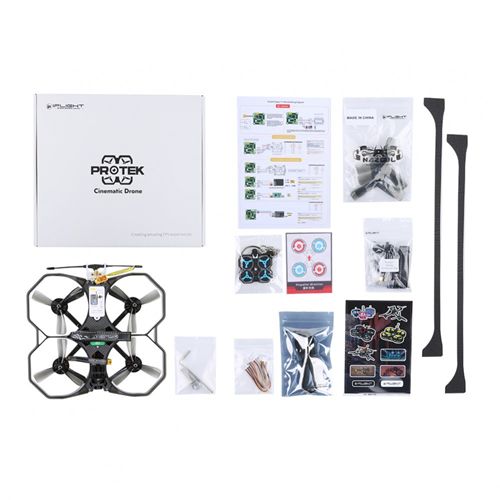

Item Packing
Propeller x 4
Battery Tie x 1
Screw Set x 1
EVA Cotton Strip x 1

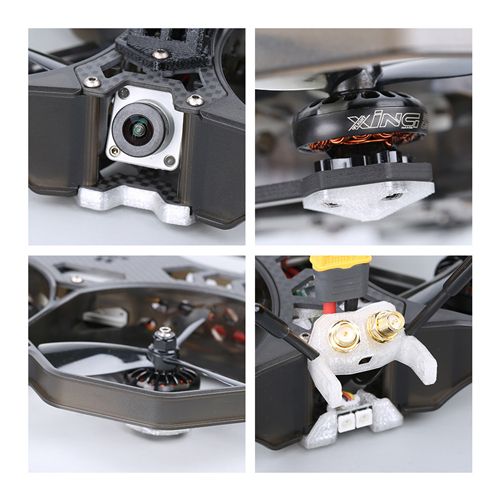

Detailed Images
