HifionRC F7 AIO 45A Flight Control MPU6000 F722 BLheli_S 4in1 ESC for RC FPV Racing Freestyle Cinewhoop Toothpick Duct Drone
| Part No.: | HIF-F7-45A |
| Manufacturer: | Feixiang |
Send to a friend
Features
This is a new initiative. On this AIO device , we abandoned the incomplete STM32F411 MCU and replaced it with the faster and more powerful STM32F722 MCU. This upgrade brought a huge change to the Race drone.
First is a change in computing speed, from 100Mhz for the F411 to 216Mhz for the F722, which brings more computation to your compact FPV and makes flying easier.
After using STM32F722 MCU, we also brought us as many as 6 groups of UART ports. Please note that the UART pads reserved on this AlO are complete, so we can add more external devices for the Race Drone. such as

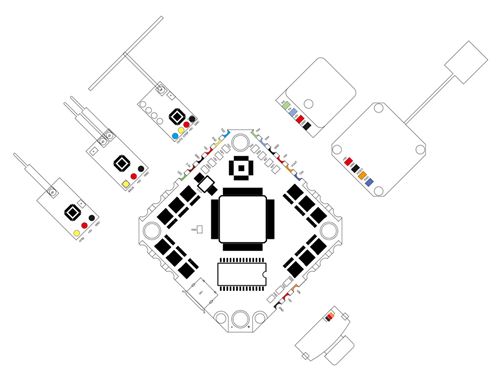

GPS, vtx, dji HD, wireless parameter adjustment and other external devices
Another very big breakthrough on the AlO was to get the rated current up to 40A, which was attributed to the unique optimization of the AlO circuit by HIFIONRC engineers. Motor 1206, 1306, 1408, 1507, 1806, 2205, 2207, 2306 are recommended.
Product Details
Flight Controller

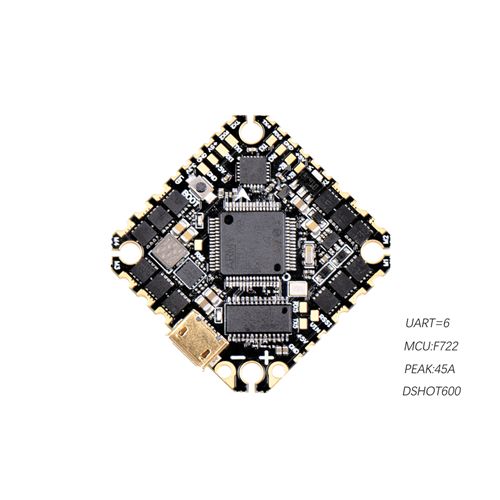

CPU: STM32F722_Coretx-M7
MPU: MPU6000 (SPI)
UARTs: 6
Firmware: BETAFLIGHT_HIFIONRC F7 4.2
Built-in Betaflight OSD (AT7456E)
Built-in Current Sensor
Support WS2812 LED
Size: 33x33mm
Mounting Hole: 25.5x25.5mm

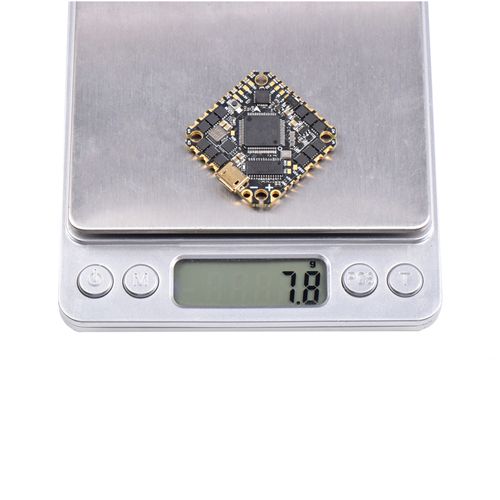

Weight: 7.8g

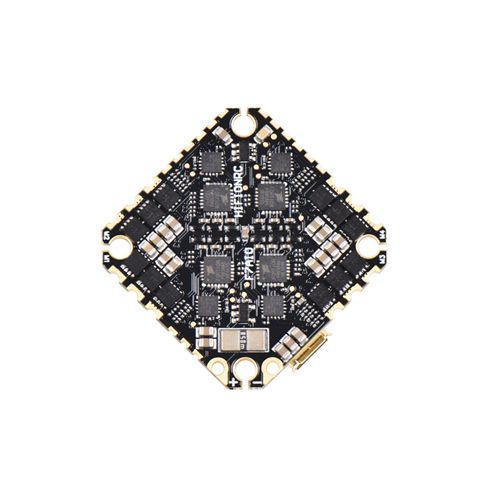

ESC
Con. Current: 45A
Input Voltage: 2-6S Lipo
Firmware: BLHELI_S GH30
Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600
Item Packing

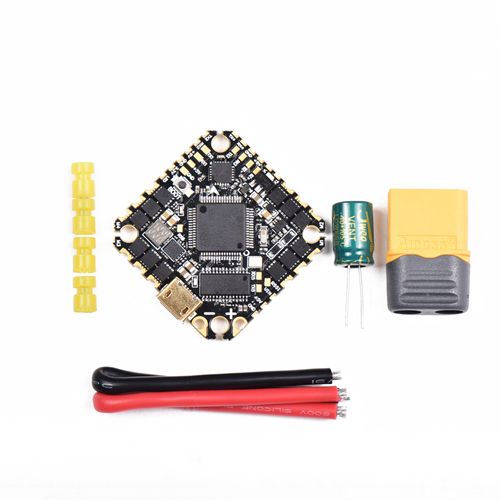

HifionRC F7 AIO 45A Flight Control 4in1 ESC x 1
Detailed Images
