Makeflyeasy PixPilot C3 Flight Control Entry-Level Open Source Flight Control for VTOL Fixed Wing
| Part No.: | MFE-PIXPILOT-C3 |
| Manufacturer: | Feixiang |
Send to a friend
Features
PixPilot C3 is a high-performance, small-size, lightweight autopilot, suitable for small fixed-wing, vertical take-off and landing fixed-wing, multi-rotor autopilot systems, with stable and reliable, simple installation, user-friendly features.
Product Details
Model：PixPilot C3
Main processor：STM32F427(32 Bit Arm Cortex-M4 180Mhz 2M Flash 256K RAM)
Coprocessor：STM32F103(32 Bit Arm Cortex-M3 72Mhz 64K Flash 20K RAM)
Sensor：ICM-42688-P X2(Acceleration and Gyro）,BMP388 X 2（Barometer）
UART：5
I2C：2
CAN：2
PWM：8+6
PPM/SBUS-IN：1
SBUS-OUT：1
Power：2
USB-Type-C：1
TF-card slot：1
Shell material：Engineering plastics
Operating temperature：-10 ℃~55℃
Size：76×45×16(mm)
Weight：37g
Main processor：STM32F427(32 Bit Arm Cortex-M4 180Mhz 2M Flash 256K RAM)
Coprocessor：STM32F103(32 Bit Arm Cortex-M3 72Mhz 64K Flash 20K RAM)
Sensor：ICM-42688-P X2(Acceleration and Gyro）,BMP388 X 2（Barometer）
UART：5
I2C：2
CAN：2
PWM：8+6
PPM/SBUS-IN：1
SBUS-OUT：1
Power：2
USB-Type-C：1
TF-card slot：1
Shell material：Engineering plastics
Operating temperature：-10 ℃~55℃
Size：76×45×16(mm)
Weight：37g
Item Packing
PixPilot C3 Flight control x1
4Pin Wire Material x2
6Pin Wire Material x2
TYPE-C Data cable x1
Safety switch x1
32G TF Card x1
Double-sided tape x2
4Pin Wire Material x2
6Pin Wire Material x2
TYPE-C Data cable x1
Safety switch x1
32G TF Card x1
Double-sided tape x2

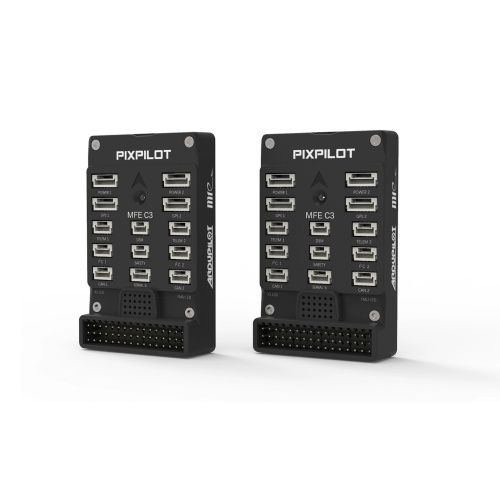

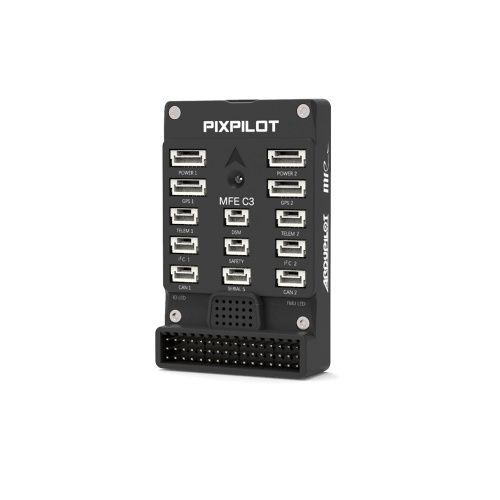

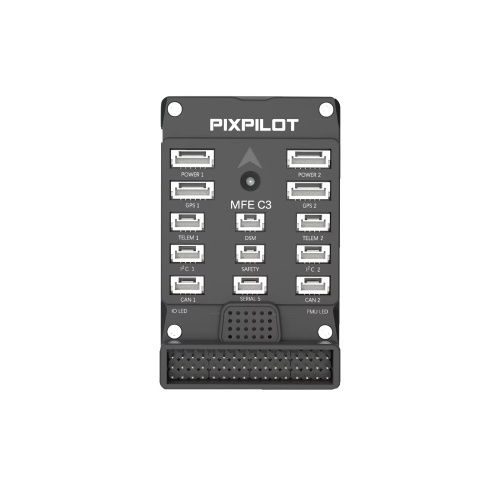

Detailed Images
