RadioMaster Nexus Balance Flybarless Flybarless Control Unit Rotorflight CNC Case Flight Controller
| Part No.: | RM-Nexus |
| Manufacturer: | RadioMaster |
Send to a friend
Features
*Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer
*Built-in Black Box: A large 128Mb of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment

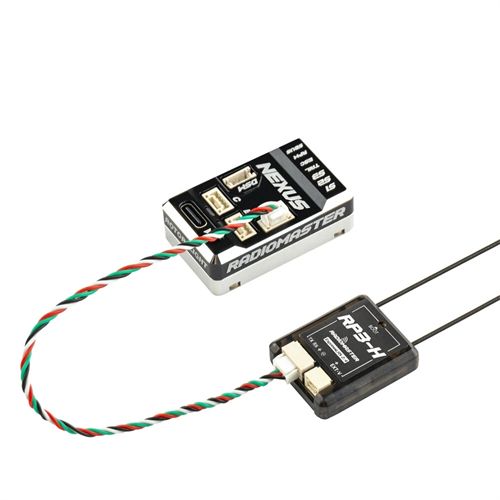

*Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
*Features multi-function ports (UART) for future expansion

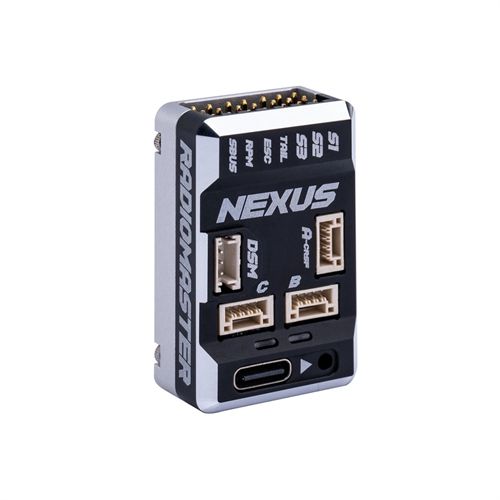

*The Nexus flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
*The Nexus measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters
*The Nexus flight controller supports a wide range of Tail Motors and Tail ESCs (760μs / 1520μs)
*A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT
*The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface
*Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and using flexible silicone wires to prevent vibration transfer to the control unit
*Built-in Black Box: A large 128Mb of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment
*Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, You can rest assured that there will be a stable connection between the control unit and the receiver (RP3-H not included)
*Features multi-function ports (UART) for future expansion
*The Nexus flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool
*The Nexus measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters
*The Nexus flight controller supports a wide range of Tail Motors and Tail ESCs (760μs / 1520μs)
*A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT
*The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface
*Ultra light-weight and flexible USB-C extender cable is included to help in situations where the USB-C port may not be easy to reach. Made as light as possible because every gram counts and using flexible silicone wires to prevent vibration transfer to the control unit
Product Details
Item: Nexus Heli Flight Controller
Firmware: Rotorflight 2.0
MCU: STM32F722RET6
GYRO (IMU): ICM-42688-P
FLASH MEMORY (BLACK BOX. IC): 128Mb (W25N01GVZEIG)
BAROMETER: SPL06-001

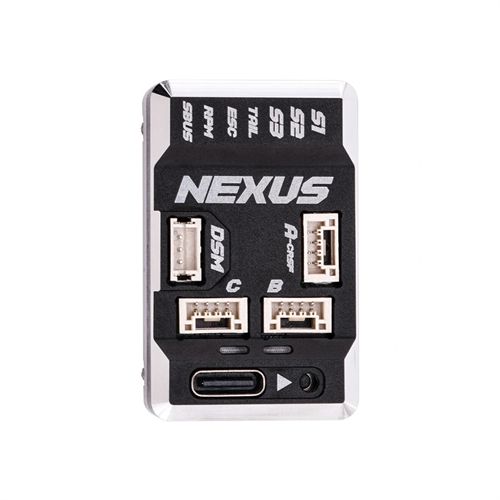

UART:
6 - DSM[UART1]. S.BUS[UART2]. A-CRSF[UART4]
PORT-B[UART6]. PORT-C[UART3]

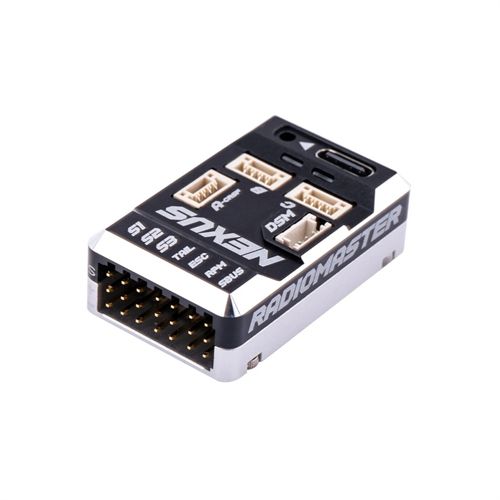

SERVO: 4 - S1, S2. S3. TAIL
RPM SENSOR: 1 - FROM ESC FREQUENCY SENSOR
RECEIVER SUPPORT: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUSEXBUS, PPM, MSP, DSM2, DSMX
VOLTAGE SUPPLY (DC): 5 - 12.6V
A-B-C SERIAL PORT POWER OUTPUT: 5V - 2.0A
DSM SERIAL PORT POWER OUTPUT: 3.3V - 0.5A
Telemetry: S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
ESC: Oneshot, Multishot, Dshot
Support Tail ESC: 760ps/1520ps Servo
Support Tail motor: Yes
DIMENSIONS: 41.3× 25.4×13.1mm

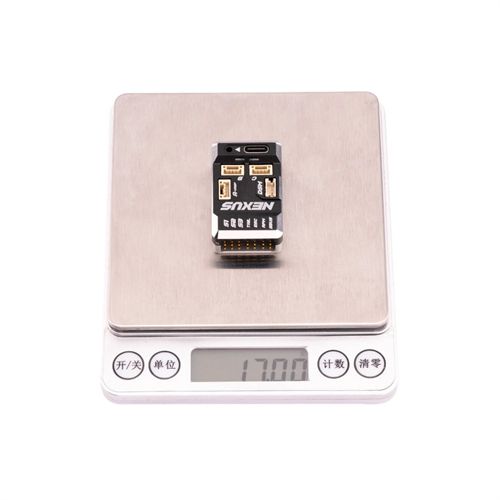

WEIGHT: 16.8g
Firmware: Rotorflight 2.0
MCU: STM32F722RET6
GYRO (IMU): ICM-42688-P
FLASH MEMORY (BLACK BOX. IC): 128Mb (W25N01GVZEIG)
BAROMETER: SPL06-001
UART:
6 - DSM[UART1]. S.BUS[UART2]. A-CRSF[UART4]
PORT-B[UART6]. PORT-C[UART3]
SERVO: 4 - S1, S2. S3. TAIL
RPM SENSOR: 1 - FROM ESC FREQUENCY SENSOR
RECEIVER SUPPORT: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUSEXBUS, PPM, MSP, DSM2, DSMX
VOLTAGE SUPPLY (DC): 5 - 12.6V
A-B-C SERIAL PORT POWER OUTPUT: 5V - 2.0A
DSM SERIAL PORT POWER OUTPUT: 3.3V - 0.5A
Telemetry: S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
ESC: Oneshot, Multishot, Dshot
Support Tail ESC: 760ps/1520ps Servo
Support Tail motor: Yes
DIMENSIONS: 41.3× 25.4×13.1mm
WEIGHT: 16.8g

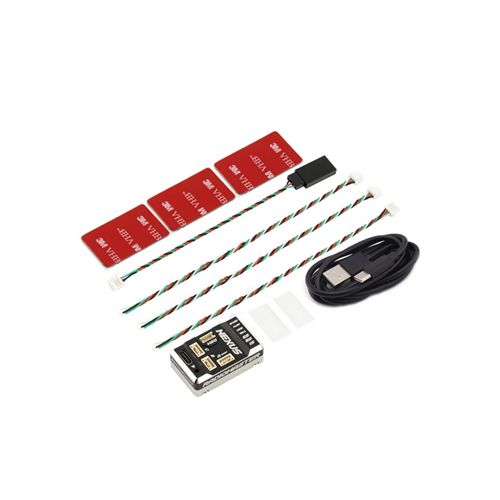

Item Packing
1x JST-GH to Servo Plug (dupont 3 pin connector)
1x Type C extension cable
3x JST-GH 4 Wire pigtail cables
1x Nexus Hell Flight Controller
1x Ultra light weight and flexible USB-C extender
2x Heat shrink tubing
3x 3M double-sided mounting tape
1x Type C extension cable
3x JST-GH 4 Wire pigtail cables
1x Nexus Hell Flight Controller
1x Ultra light weight and flexible USB-C extender
2x Heat shrink tubing
3x 3M double-sided mounting tape
Detailed Images
