HGLRC SPECTER 15A ELRS AIO Flight Controller
| Part No.: | 15A-ELRS-AIO |
| Manufacturer: | Feixiang |
Send to a friend
Features
* Supports input voltage up to 2-4s.
* Newly upgraded and expanded UARTS port
* The flight control uses F411 main control with MPU6000 gyroscope to make flight control feel smoother
* The flight controller reserves a direct plug-in motor base and an extra large motor pad, which can be used selectively
* Built-in independent serial port ELRS receiver can reduce installation space and is very suitable for indoor /toothpick frame
* Bluejay firmware is flashed by default to improve flight efficiency and is the best choice for flying drone
* Newly upgraded and expanded UARTS port
* The flight control uses F411 main control with MPU6000 gyroscope to make flight control feel smoother
* The flight controller reserves a direct plug-in motor base and an extra large motor pad, which can be used selectively
* Built-in independent serial port ELRS receiver can reduce installation space and is very suitable for indoor /toothpick frame
* Bluejay firmware is flashed by default to improve flight efficiency and is the best choice for flying drone
Product Details
Brand: HGLRC
Model: SPECTER 15A AIO
Item Name: F4 Flight Controller AIO 15A 4in1 ESC and UARTS R1 ExpressLRS 2.4G Receiver
MCU: STM32F411
MPU: MPU6000
BEC: 5V2A
Black box: 8MB
OSD: support
LED: support
Buzzer: support
UARTS: UARTS3
Built-in receiver: UARTS R1 ExpressLRS 2.4G
Built-in receiver frequency: 2.4GHZ
Continuous current: 15A
Peak current: 18A (10s)
ESC protocol: Dshot300, Dshot600, Oneshot, Multishot
Flight control firmware: ZEUSF4EVO
ESC firmware: Q-H-50 (Bluejay)
Input voltage: 2-4S 7.4V-14.8v (Lipo)
Size: 42.5x42.5mm
Mounting hole: 25.5X25.5mm.M2

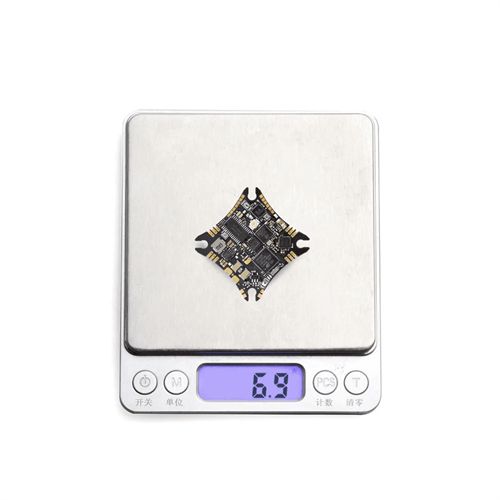

Weight: 6.9g
Model: SPECTER 15A AIO
Item Name: F4 Flight Controller AIO 15A 4in1 ESC and UARTS R1 ExpressLRS 2.4G Receiver
MCU: STM32F411
MPU: MPU6000
BEC: 5V2A
Black box: 8MB
OSD: support
LED: support
Buzzer: support
UARTS: UARTS3
Built-in receiver: UARTS R1 ExpressLRS 2.4G
Built-in receiver frequency: 2.4GHZ
Continuous current: 15A
Peak current: 18A (10s)
ESC protocol: Dshot300, Dshot600, Oneshot, Multishot
Flight control firmware: ZEUSF4EVO
ESC firmware: Q-H-50 (Bluejay)
Input voltage: 2-4S 7.4V-14.8v (Lipo)
Size: 42.5x42.5mm
Mounting hole: 25.5X25.5mm.M2
Weight: 6.9g

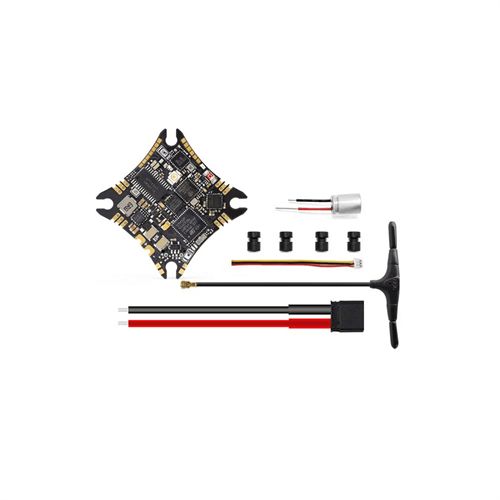

Item Packing
1x SPECTER 15A AIO Board
1x 35V 220UF solid capacitor
1x XT30U-M 18AWG 70mm male power cord
1x MX1.25-3P 30AWG 75mm camera cable
1x HGLRC 2.4G T-shaped antenna
4x M2*6.6 Shock-absorbing column
1x 35V 220UF solid capacitor
1x XT30U-M 18AWG 70mm male power cord
1x MX1.25-3P 30AWG 75mm camera cable
1x HGLRC 2.4G T-shaped antenna
4x M2*6.6 Shock-absorbing column
Detailed Images
