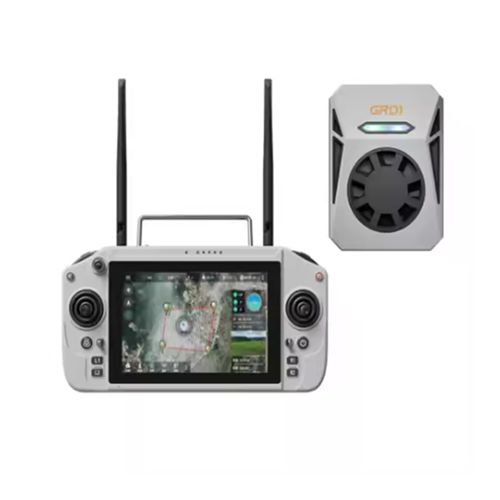

Skydroid G20 Remote Controller with GR01 Receiver 2.4GHz/5.8GHz Dual Band 30KM Image Transmission

Skydroid G20 Remote Controller with GR01 Receiver 2.4GHz/5.8GHz Dual Band 30KM Image Transmission
Part No.: SD-G20-GR01
Manufacturer: Skydroid

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Skydroid's unique digital image control link technology enables the G20 to achieve a 30KM image transmission and remote control distance.
G20 is equipped with dual frequency bands of 2.4GHz and 5.8GHz.It can automatically switch according to the actual flight environment and requirements to ensure the stability of the signal and transmission efficiency, and further improve the anti-interference ability of communication.

Product Details

G20 Remote Control
Display：7 inch industrial touch screen + vision viewable screen
Resolution：1920*1200
Processor：Qualcomm 6nm processor
Computer Type：Android 13
Size：277(L)*138(W)*96(H)mm
Weight：1.2kg
Battery：20000mA/H
Endurance：6~8hours
Operating Memory：8G
System Storage Memory：128G
Operating Frequency Band：2.4G/5.8G
Channels Number：16
Dynamic FM：Automatic frequency hopping
RF Power：23dBm@CE/FCC
Remote Control Distance：5-30KM(ground-to-air, visual)
Operating Temperature：-10°C~55°C
Charging Interface：TYPE-C
External Interface：USB port, SIM card slot, TYPE - C

GR01 receiver
Frequency Band：2.4G/5.8G
Serial Baud Rate：57600/115200/921600
Supply Voltage：7.2 - 72V(XT30)
Operating Current：12V/300mA
Data Transmission Port：1 channel
Empty Port Rate：200Kbps~160Mbps
Network Port：1 channel
Dimension：45.5(L)*60(W)*21.5(H)mm
SBUS Output：1 channel
Weight：37g
PWM Interface：3 channels
Operating Temperature：-10°C~60°C
RF Power：23dBm@CE/FCC
Channel Bandwidth：1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz

Item Packing

Skydroid G20 Remote Control x1
Skydroid GR01 receiver x1
