Hobbywing Platinum 260A OPTO V5 electric tuning is suitable for RC Remote Control Model Aircraft Fixed-wing Helicopter

Hobbywing Platinum 260A OPTO V5 electric tuning is suitable for RC Remote Control Model Aircraft Fixed-wing Helicopter
Part No.: PL-260A-OPTO-V5
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

* High-quality brushless ESC for a smooth and efficient performance.
* Comes with a built-in fan for effective heat dissipation and improved durability.
* Designed specifically for use with brushless motors in helicopters.
* Offers Telemetry functionality for enhanced performance and safety.
* VBar Telemetry Ready for advanced monitoring and control of your helicopter.

Product Details

Product Name: Platinum 260A HV OPTO V5
Product Number: 30203101
Type:
brushless (BL) and high voltage (High Voltage):BL High Voltage

Specification Parameters
Continuous/Peak Current: 260A / 400A
Input Voltage: 6 - 14S LiPo
BEC Output:
Platinum 260A HV OPTO V5: No
Wires & Connectors:
Input wires: 1 x black and 1 x red 8AWG silicone wires.
Output wires: 3 x black 10AWG silicone wires.
Input connectors: None.
Output connectors: None.

Programming Methods
Platinum 260A HV OPTO V5: Not supported by transmitter, LED program card, or LED program box; supported by LCD program box, OTA programmer, and separate program port.
Firmware and Telemetry Functions
Firmware Upgrade: Both supported.
Telemetry Function: Supported for Mikado VBar, Futaba S.Bus2, MSH Brain, iKon, etc.

Size and Weight
Size: 89 x 50 x 34mm
Weight:
Platinum 260A HV OPTO V5: 287g (with wires).
VI. Application Scope
For 700 - 800 class electric helicopters (main rotor length 690 - 880mm) or fixed-wing aircraft.

Item Packing

1x Hobbywing Platinum 260A OPTO V5 VBar Telemetry Brushless ESC

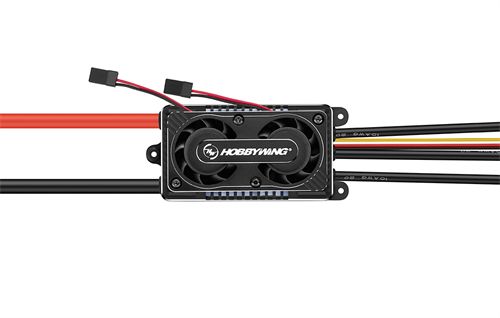

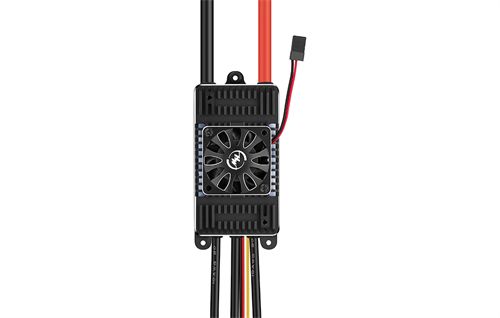

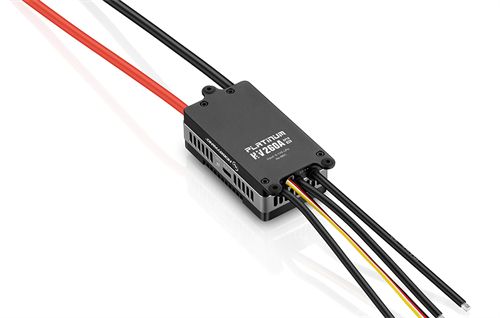

Detailed Images
