IFlight BLITZ E80 Pro 4-IN-1 ESC 80A for RC FPV Drone

IFlight BLITZ E80 Pro 4-IN-1 ESC 80A for RC FPV Drone
Part No.: BLITZ-E80-ESC
Manufacturer: IFlight

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection
*G071 MCU, 48mHz maximum clock speed;
*TDK MLCC Low ESR ceramic capacitors;
*Top grade PSMN1R0-40YLD MOSFET;
*8 layers double-sided PCB board

Product Details

Product Name: BLITZ E80 4-IN-1 ESC
Input Voltage: 2-8S
Max. Continuous Current: 80A
Max. Burst Current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2

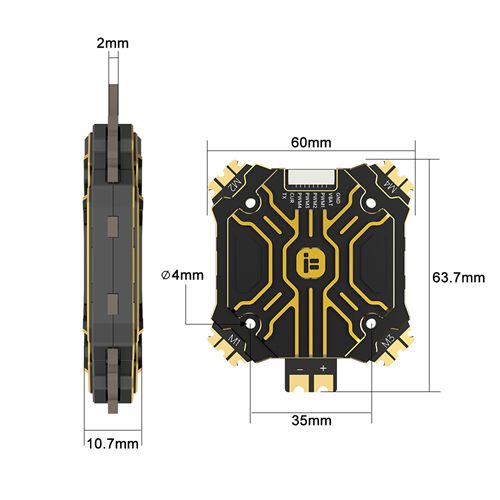

Mounting Dimensions: 35x35mm/Φ4mm
Dimensions: 35x42mm
Weight: 65g(±10)
Protocal:Supports DShot DShot150/300/600/MultiShot/ OneShot etc

Item Packing

1 x BLITZ E80 4-IN-1 Pro ESC

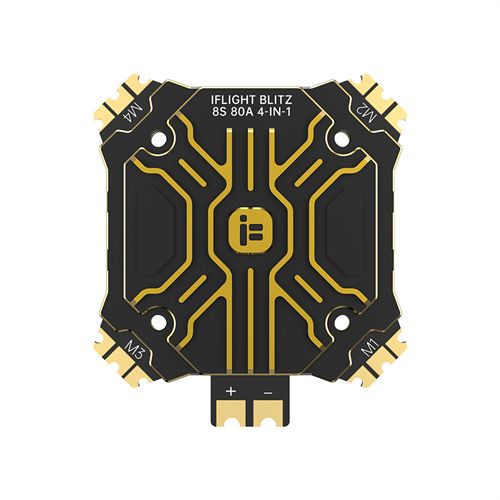

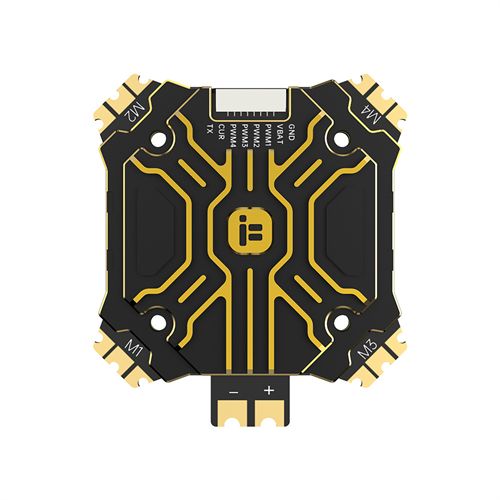

Detailed Images
