BS20D 20A Blheli_S 2IN1 2-4S ESC Supports OneShot125 OneShot42 MultiShot Dshot ready for Piko BLX FC

BS20D 20A Blheli_S 2IN1 2-4S ESC Supports OneShot125 OneShot42 MultiShot Dshot ready for Piko BLX FC
Part No.: XP141
Manufacturer: happymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

BLHeli-S firmware for excellent performance

 CLEANFLIGHT / BETAFLIGHT Pass-through ready

 Hardware generated motor PWM for ultra smooth throttle response / quite operation

 All coding utilized damped light mode functionality

Damped light mode provides regenerative braking capability for rapid motor rpm decay

Active freewheeling capability

Supports regular 1-2ms pulse width inputs, along with OneShot125, OneShot42, and MultiShot

Most powerful 8BB2 48MZH frequency chips

Product Details

Continuous Current: 20A
Item type: BS20D
BEC: no
Lipo: 2s - 4s
Programming: Yes

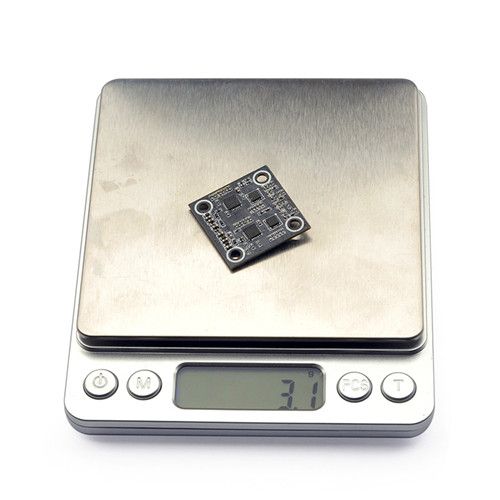

Weight: 4g(without cable)
Size: 27x 27mm, distance hole to hole is 20.5x20.5m

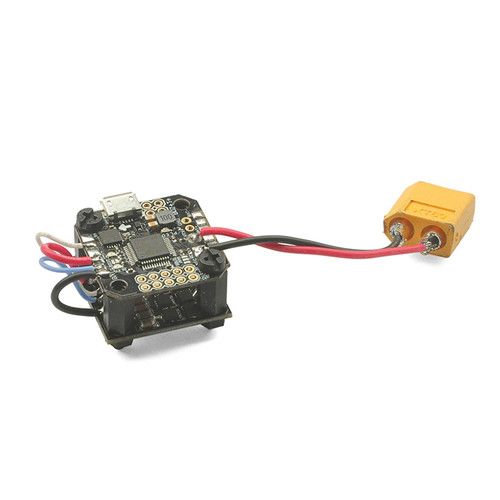

Special design for Piko BLX FC

Item Packing

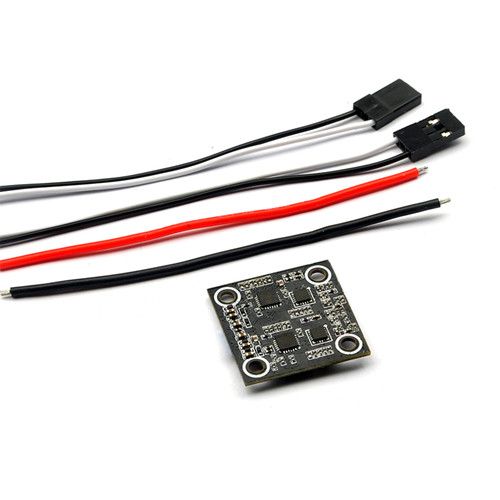

1 x BS20D 20A Blheli_S 2IN1 2-4S ESC

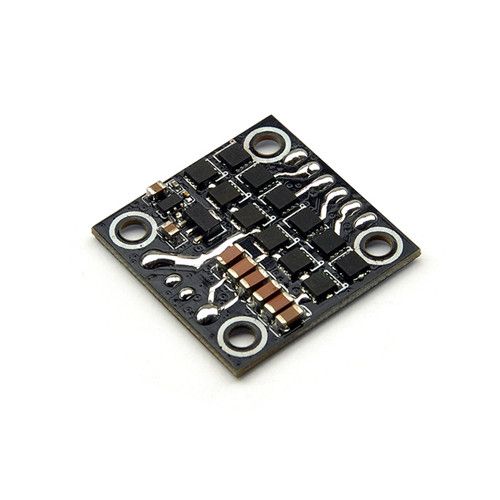

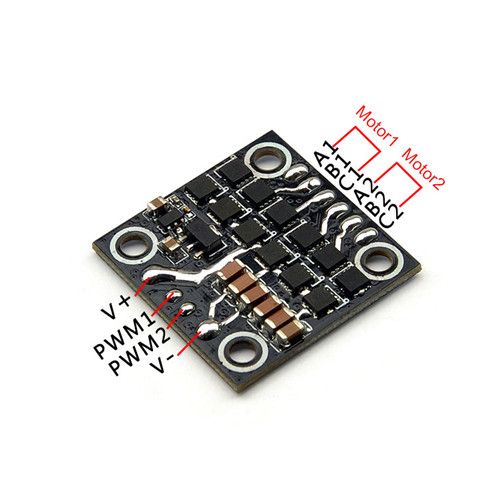

Detailed Images
