New Hobbywing Seaking 160A V4 Brushless ESC Electronic Speed Controller 3-8S Lipo Built-in BEC For Applicable 120CM RC Boat
| Part No.: | SEAKING-160A-V4 |
| Manufacturer: | Hobbywing |
Send to a friend
Features
● The ESC features a built-in Bluetooth module,allowing easy connection to a mobile app for parameter settings data reading firmware upgrades all without the need for additional devices, making it incredibly user-friendly.
● With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
● It can be used immediately without any additional waterproofing treatment.
● Dual-Channel Water Cooling for Lower Temperature
● The output voltages are switchable between 6.0V / 7.4V / 8.4V
● Which can easily drive various powerful servos and high-voltage servos.
● The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.
● With an IP67 protection rating, this ESC boasts outstanding waterproof and dustproof capabilities.
● It can be used immediately without any additional waterproofing treatment.
● Dual-Channel Water Cooling for Lower Temperature
● The output voltages are switchable between 6.0V / 7.4V / 8.4V
● Which can easily drive various powerful servos and high-voltage servos.
● The SeaKing 160A V4 ESC features a sleek, elongated design that is 15% narrower (7mm slimmer) than its predecessor, the SEAKING 180A V3. This streamlined profile enhances installation convenience, particularly in boats with limited space, offering greater adaptability for professional and recreational applications.
Product Details
● Product Name: Seaking 160A V4
● Product Number: 30206200
● Type
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof
● Specifications
Cont./Peak Current: 160A/800A
Input Voltage: 3-8S Lipo
BEC Output: Switch mode 6V/7.4V/8.4V @8A
● Wires & Connectors
Input Wires: Red-10AWG-160mm*1,Black-10AWG-160mm*1
Output Wires: Black-12AWG-150mm*3
Input Connectors: No
Output Connectors: 6.5mm Gold female plug
● ESC Programing via
LED Program Box: Not Supported
LCD G2 Program Box: Not Supported
LCD PRO: Not Supported
OTA Programmer: Not Supported
Program Port: Built-in Bluetooth
● Data Recording
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
● Firmware
Firmware Upgrade: Supported
● Size & Weight
Size: 91*41*25.5mm
Weight: 220g(Including wire and output plug)
● Applications
Boat Applicable: ≤120CM
● Product Number: 30206200
● Type
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Waterproof
● Specifications
Cont./Peak Current: 160A/800A
Input Voltage: 3-8S Lipo
BEC Output: Switch mode 6V/7.4V/8.4V @8A
● Wires & Connectors
Input Wires: Red-10AWG-160mm*1,Black-10AWG-160mm*1
Output Wires: Black-12AWG-150mm*3
Input Connectors: No
Output Connectors: 6.5mm Gold female plug
● ESC Programing via
LED Program Box: Not Supported
LCD G2 Program Box: Not Supported
LCD PRO: Not Supported
OTA Programmer: Not Supported
Program Port: Built-in Bluetooth
● Data Recording
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
● Firmware
Firmware Upgrade: Supported
● Size & Weight
Size: 91*41*25.5mm
Weight: 220g(Including wire and output plug)
● Applications
Boat Applicable: ≤120CM
Item Packing
Seaking 160A V4 ESC x 1

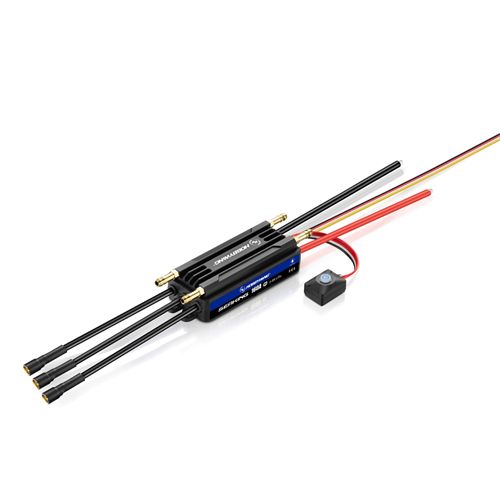

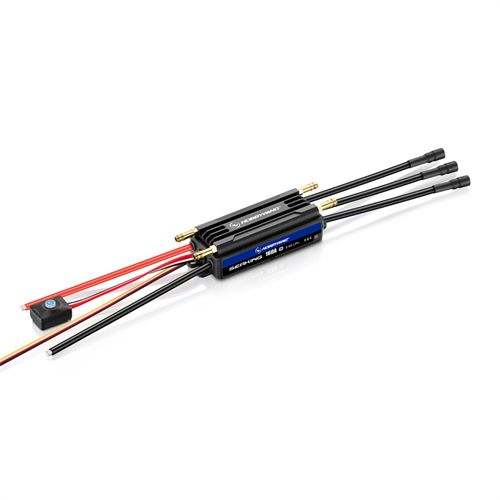

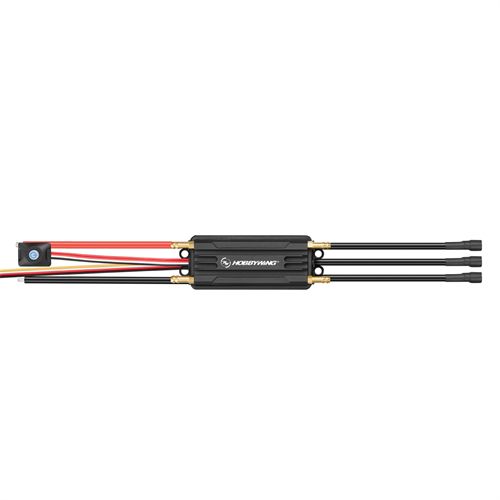

Detailed Images
