Large Torque Remote Control Servo Release Hook W/ 433Mhz Remote controller
| Part No.: | QA-DJITFQ |
| Manufacturer: | DJI |
Send to a friend
Features
Product Details
Large Torque Remote Control Servo Release Hook W/ 433Mhz Remote controller
Weight: 94g (including servo weight)
High torque MG995 servo, capable of pulling 10 kg load.
Power supply: 2-6S
Power supply connector: JST
Control method: The servo is controlled by a 433Mhz remote controller come with the release hook.
Operation method:
Press the button "开" (the upper button) to release the hook
Press the button "关" (the lower button) to close the hook
or
Press and hold “开” (longer than 3 seconds) to release the hook, and release the button "开” to close the hook.
Hook Range settings:
Press and hold the “关” button for 5 seconds then release, the buzzer emits B.B and enters the closing range setting mode
Press 开/关 to adjust the range
Press and hold the “关” button for 5 seconds then release, the buzzer emits B.B.B to enter the opening range setting mode
Press 开/关 to adjust the range
Press and hold the “关” button for 5 seconds then release, the buzzer emits B.B.B.B to Exit setting mode
The range setting will be saved even when power is off.
Item Packing
Remote controller X 1

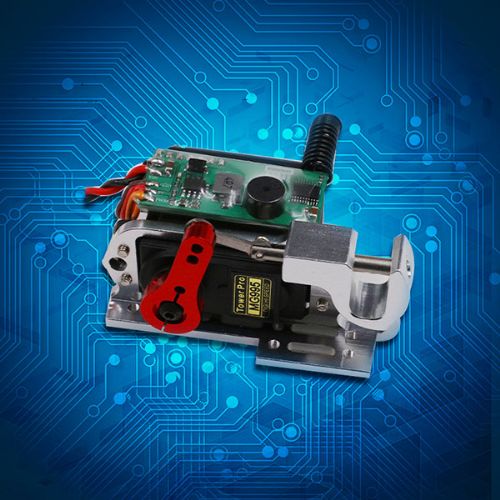

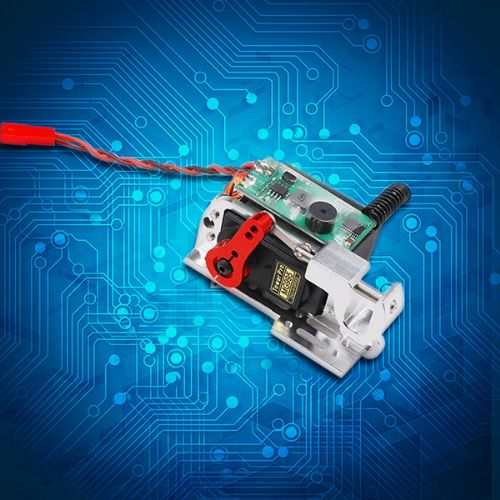

Detailed Images
