FrSky FAS150 ADV current sensor 0-150A Measurement Range support S.Port / FBUS protocol
| Part No.: | FAS150-ADV |
| Manufacturer: | Frsky |
Send to a friend
Features
The FAS150 ADV current sensor can be used to measure current (maximum 150A), and the battery voltage (60V) can be measured by soldering to the voltage sensing pad of the mainboard. The mainboard also includes a temperature sensor interface to meet the user’s needs for temperature data in specific applications.
Product Details

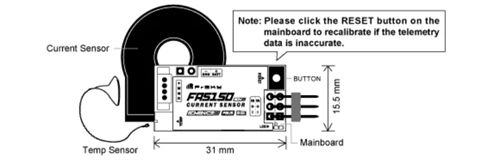

Sensor Dimension: 31×26×12.5mm (Length×Width×Height)
Mainboard Dimension: 31×15.5mm (Length×Width)
Weight: 18.2g
Measurement Range: 0 - 150A
Current Consumption: 30mA@5V
Supplying Voltage (S.Port): 4 - 10V
Measuring Voltage: 60V
Temp Measuring Range: -55℃ - 250℃ / -67℉ - 482℉ (Deviation: ±5%)
Compatible with FBUS/S.Port protocol
Mainboard Dimension: 31×15.5mm (Length×Width)
Weight: 18.2g
Measurement Range: 0 - 150A
Current Consumption: 30mA@5V
Supplying Voltage (S.Port): 4 - 10V
Measuring Voltage: 60V
Temp Measuring Range: -55℃ - 250℃ / -67℉ - 482℉ (Deviation: ±5%)
Compatible with FBUS/S.Port protocol
Item Packing
1×FrSky FAS150 ADV Current Sensor

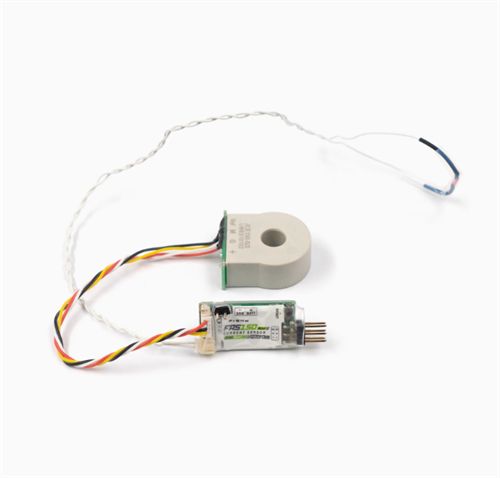

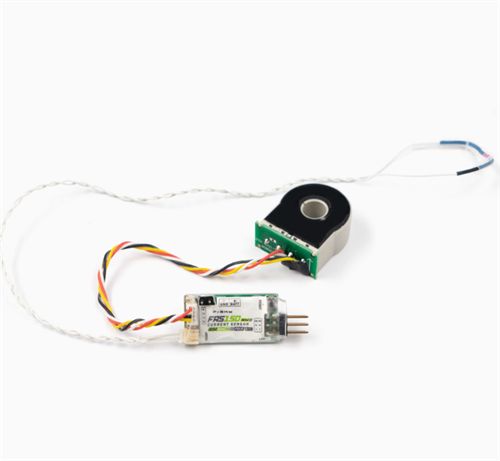

Detailed Images
