FLYSKY 2.4G FS-NV14 14CH RC Transmitter with touch screen For DIY Drone Parts

FLYSKY 2.4G FS-NV14 14CH RC Transmitter with touch screen For DIY Drone Parts
Part No.: FS-NV14
Manufacturer: FLYSKY

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Description:
- It is equipped with a 32-bit M4 core high-performance processor, 2Mb 180MHz,
 supplemented by industrial-grade 166MHz SDRAM.
- USB HID output for use with simulator software
- Haptic feedback motor
- Up to 14 channels
- Includeds 2 receivers as standard, one small single and one larger dual antenna receiver.
- Optional bluetooth module
- Unique ergonomic design
- Unique finger grip design further enhances hand feel
- Collapsible onmi antenna
- 3.5inch 320*480 color capacitive touch screen
- New lanyard eye design
- Detachable RF module bay
- Unique switch placement for ease of use without sacrificing performance
- Unique battery compartment design to house the dual 18650 batteries
- The combination of metal and plastic looks and feels great
- Optional remote control cover offering protection while still being small enough to fit into a backpack

Product Details

- Channels: 14
- Data output:Micro USB port
- Freq. range: 2.408-2.475 GHz
- Channel bandwidth: 500KHz
- Number of bands: 135
- Transmission power: 20dBm (EU)
- Receiver sensitivity: -95dBm
- 2.4G System: Removable RF module + internal AFHDS 2A
- Modulation type: GFSK
- Spread spec**** type: FHSS
- RC channel resolution: 4096
- Low voltage alarm: less than 3.7V
- Charging interface: USB
- Antenna type: internal and RF module
- Power input: 2*18650
- Display: STO35T standard LCD module 320*480 dots 3.5in LED with capacitive touch
- Online update: Yes
- Open without interference from ground (transmitting and receiving 1m from the ground): more than 500m
- Certification: CE,FCC ID: N4ZNV1400
- Compatible receiver: FS-X8B / FS-iA8X

Item Packing

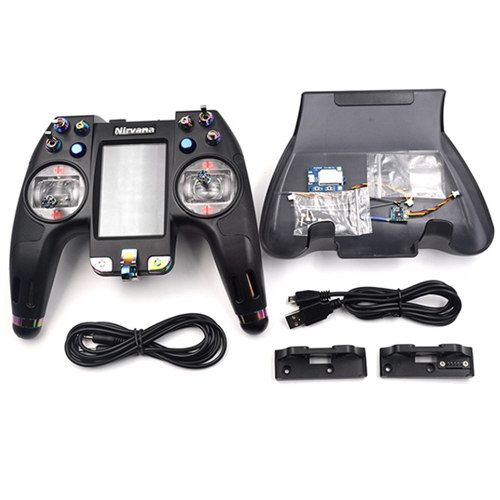

FLYSKY 2.4G FS-NV14 14CH RC Transmitter with touch screen For DIY Drone Parts x 1

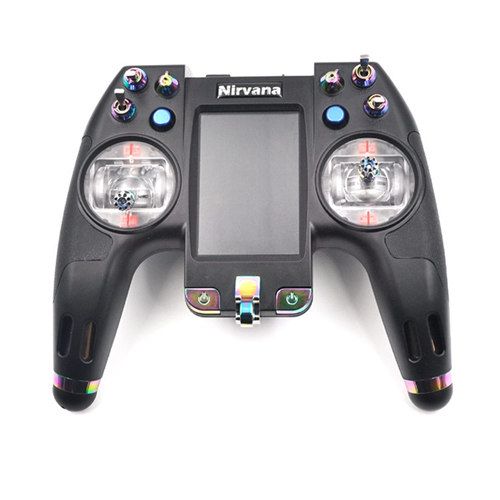

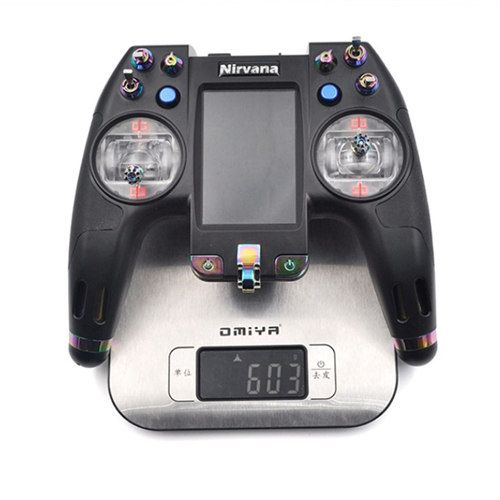

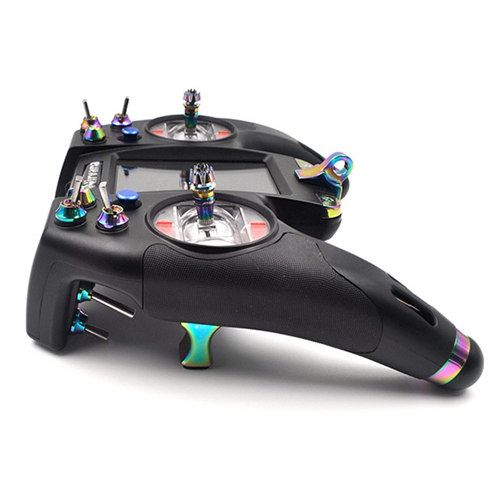

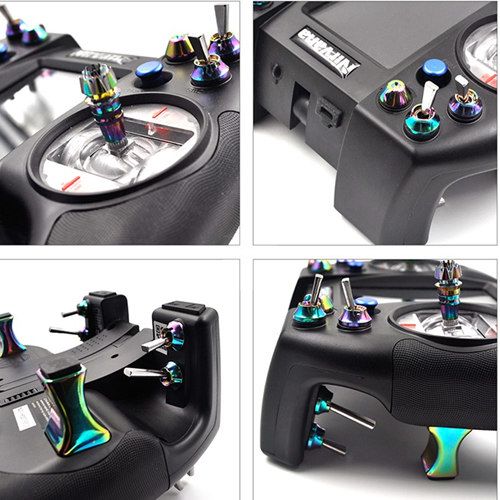

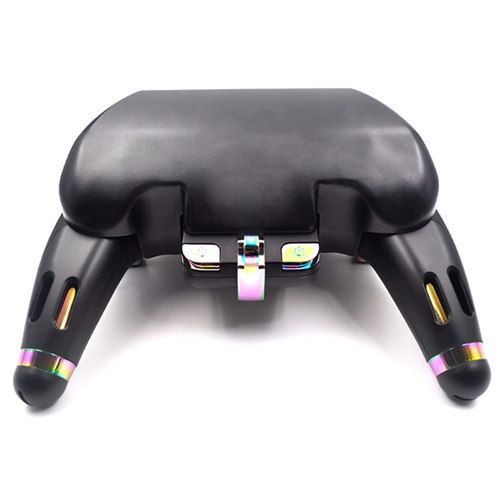

Detailed Images
