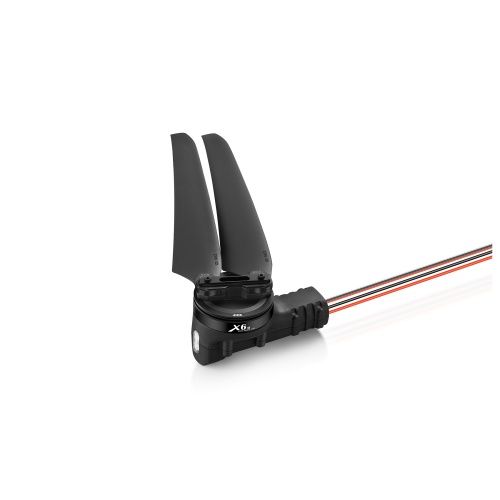

Hobbywing X6-SE-CCW Integrated Propulsion System 2270 Propeller 2.2kg Thrust Outrunner RC Accessories
| Part No.: | X6-SE-CCW |
| Manufacturer: | Hobbywing |
Send to a friend
Features
Extreme Lightweight Design
With a lightweight injection-molded motor base,the overall propulsion system weight is 373g(including propellers) Achieves an industry-leadingthrust-to-weight ratio of 16:1 with exceptionalpayload capacity
High Efficiency and Long Endurance
Recommended single-axis takeoff weight:2-2.5kg,System’s efficiency under asingle-axis thrust of 2.2kg up to 10g/W,Flight time Over 45min Per battery
With a lightweight injection-molded motor base,the overall propulsion system weight is 373g(including propellers) Achieves an industry-leadingthrust-to-weight ratio of 16:1 with exceptionalpayload capacity
High Efficiency and Long Endurance
Recommended single-axis takeoff weight:2-2.5kg,System’s efficiency under asingle-axis thrust of 2.2kg up to 10g/W,Flight time Over 45min Per battery
Product Details
Model：CM-X6-SE
Steering: CCW
Max Thrust：6.2kg
Recommended takeoff weight per axis：2.2kg
Efficiency of recommended takeoff weight：10g/W
Input voltage：9-27V
Rated voltage：23V
Lithium compatible：6S (LiPo)
Tube outer diameter：25mm
Weight (with cable and Props)：373±15g
Cable specification：Power cable: 16AWG*410±10mm signal cable:530±10mm
Operating temperature：-20-50°C
Ingress Protection：IP43
Motor
Model：6208-280KV
Weight (with wire)：173g±10g
Motor diameter：68.7mm
Slot&Pole：24N28P
ESC
Mode：60A-BLDC
Communication protocol：UAVCAN
ESC size：55mm*25mm（PCB）
Weight (without cable)：15g
Peak current (3 seconds)：60A (3s)
Continuous current：30A
Throttle range calibration：Not supported
Double throttle signal：PWM+CAN
Operating pulse width：1100-1940μs
Fault storage：Supported
Propeller
Model：HF227.0"
Weight：66g
Material of Props：Carbon nylon folding Props
Mounting dimensions：D18-2*M3&D20-2*M3， centre hole D8
Steering: CCW
Max Thrust：6.2kg
Recommended takeoff weight per axis：2.2kg
Efficiency of recommended takeoff weight：10g/W
Input voltage：9-27V
Rated voltage：23V
Lithium compatible：6S (LiPo)
Tube outer diameter：25mm
Weight (with cable and Props)：373±15g
Cable specification：Power cable: 16AWG*410±10mm signal cable:530±10mm
Operating temperature：-20-50°C
Ingress Protection：IP43
Motor
Model：6208-280KV
Weight (with wire)：173g±10g
Motor diameter：68.7mm
Slot&Pole：24N28P
ESC
Mode：60A-BLDC
Communication protocol：UAVCAN
ESC size：55mm*25mm（PCB）
Weight (without cable)：15g
Peak current (3 seconds)：60A (3s)
Continuous current：30A
Throttle range calibration：Not supported
Double throttle signal：PWM+CAN
Operating pulse width：1100-1940μs
Fault storage：Supported
Propeller
Model：HF227.0"
Weight：66g
Material of Props：Carbon nylon folding Props
Mounting dimensions：D18-2*M3&D20-2*M3， centre hole D8
Item Packing
Hobbywing X6-SE-CCW Set x1
