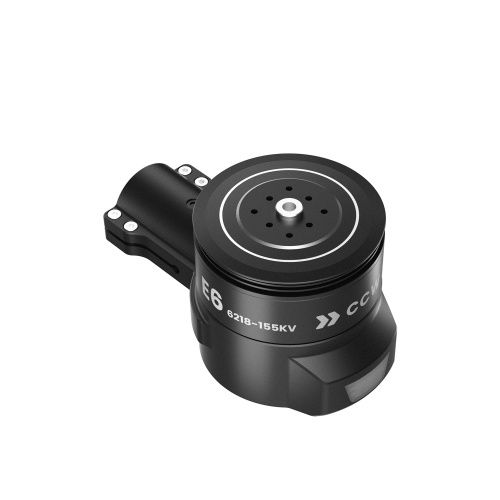

SIYI E6-CCW Propulsion System 6kg/rotor Efficiency 7.0 G/W Surging Thrust for Drone Accessories
| Part No.: | SY-E6-CCW |
| Manufacturer: | SIYI |
Send to a friend
Features
E6 is a high thrust integrated propulsion system developed by SIYI Technology independently, especially for drone platforms of 3 to 6 kg thrust per rotor. Combining precise control and high reliability, it adopts FOC vector control and dual throttle redundancy, modular design, glue - filling and sealing, intelligent data monitoring and fault storage functions, and IPX6 protection, making it an ideal choice for enterprise drones and agriculture drones.
Product Details
Model：SY-E6-CCW
Product Weight：825g(with propellers)
Voltage Platform：12-14S(LiPo)
Mounting Tube Diameter：Φ30mm
Signal Support：CAN/PWM(Compatible with 5V/3.3V)
Throttle Pulse Width：1050-1950us(Fixed throttle)
Operating Temperature：-20~50°C
Protection Rating：IPX6
Maximum Thrust(Single-axis)：Maximum thrust 12.5kg(at sea level)
Recommended Thrust(Single-axis)：Recommended takeoff weight 3-6kg (at sea level)
ESC
Overcurrent Capability：120A peak, maximum continuous current 70A
Maximum Operating Voltage：63V
Communication Protocol：CAN
Motor
Motor Stator Size：62*18mm
KV：155KV
Propeller((Foldable)
Diameter * Pitch：24*9.0
Material：Carbon fiber nylon composite
Weight：109.6g
Foldable/Direct Propeller：Foldable propeller
Product Weight：825g(with propellers)
Voltage Platform：12-14S(LiPo)
Mounting Tube Diameter：Φ30mm
Signal Support：CAN/PWM(Compatible with 5V/3.3V)
Throttle Pulse Width：1050-1950us(Fixed throttle)
Operating Temperature：-20~50°C
Protection Rating：IPX6
Maximum Thrust(Single-axis)：Maximum thrust 12.5kg(at sea level)
Recommended Thrust(Single-axis)：Recommended takeoff weight 3-6kg (at sea level)
ESC
Overcurrent Capability：120A peak, maximum continuous current 70A
Maximum Operating Voltage：63V
Communication Protocol：CAN
Motor
Motor Stator Size：62*18mm
KV：155KV
Propeller((Foldable)
Diameter * Pitch：24*9.0
Material：Carbon fiber nylon composite
Weight：109.6g
Foldable/Direct Propeller：Foldable propeller
Item Packing
SIYI E6-CCW Set x1
Detailed Images
