HOBBYWING NEW QUICRUN-WP-860-DUAL-BRUSHED FOR 1/8 Sport

HOBBYWING NEW QUICRUN-WP-860-DUAL-BRUSHED FOR 1/8 Sport
Part No.: QUICRUN-WP-860
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

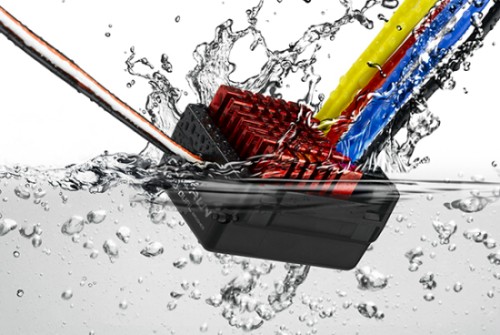

1.1 Water-proof and dust-proof, suitable for all-weather condition races.
1.2 Small size with built-in capacitor module.
1.3 Four running modes to fit various vehicles
       Fwd/Br/Rev
       Fwd/Br
       Fwd/Rev (also called "Crawler Mode")
       Boat mode
       (Note: Fwd =Forward, Br=Brake, Rev=Reverse)
1.4 Great current endurance capability.
1.5 Switch mode built-in BEC has powerful output.
1.6 Automatic throttle range calibration, easy to use.
1.7 Easy to set the ESC parameters with dial switches.
1.8 Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

Product Details

Model
WP-1625-BRUSHED
WP-1060-BRUSHED
WP-860-
DUAL-BRUSHED
Fwd. Cont. / Peak Current
Rev. Cont. / Peak Current
25A /100A
25A /100A
60A / 360A
30A /180A
60A /360A
30A /180A
Voltage Range
2-3S Lipo or 5-9 NiMH
2-4S Lipo or
5-12 NiMH
Cars
Applicable
1/18 &1/16:
Touring Car, Buggy, Monster, Truggy
1/10:
Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
1/8&1/10:
Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank;
Boat
Motor Limit *
2S Lipo or
6 cells NiMH
280、370 or 380 Size Motor
RPM<30000 @7.2V
540 or 550 Size Motor: ≥12T
or RPM<30000 @7.2V
540, 550, 775 Size Motor: ≥12T
or RPM<30000 @7.2V
3S Lipo or
9 cells  NiMH
280、370 or 380 Size Motor
RPM<20000 @7.2V
540 or 550 Size Motor: ≥18T
or RPM< 20000 @7.2V
540, 550, 775 Size Motor: ≥18T
or RPM<20000 @7.2V
4S Lipo or
12 cells  NiMH
Not Available
540, 550, 775 Size Motor: ≥24T
or RPM<15000 @7.2V
Resistance
Fwd 0.003Ω
Rev 0.003Ω
Fwd 0.001Ω
Rev 0.002Ω
Fwd 0.001Ω
Rev 0.002Ω
BEC Output
1A/5V (Linear Mode)
2A/5V (Linear Mode)
3A/5V (Switch Mode)
PWM Frequency
1KHz
Dimension / Weight
34*24*14 / 23.5g
36.5*32*18 / 39g
46.5*36*26.3 / 73g
Cooling Fan
Without cooling fan
Cooling fan works with 2-3S Lipo
Running Modes
Fwd/Br/Rev
Fwd/Br/Rev
Fwd/Br
Fwd/Rev(Crawler)
Fwd/Br/Rev
Fwd/Br
Fwd/Rev(Crawler)
Boat mo


Item Packing

-HOBBYWING NEW QUICRUN-WP-860-DUAL-BRUSHED  X 1

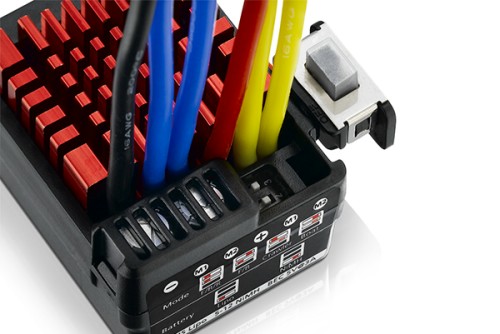

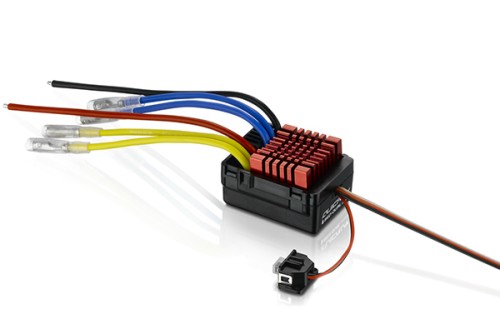

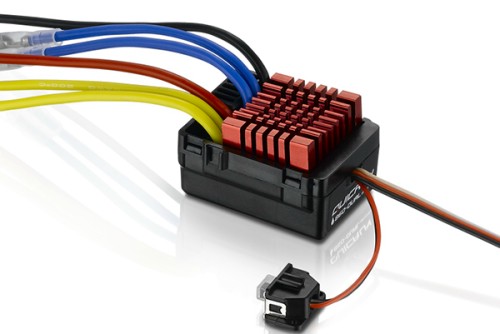

Detailed Images
