New CUAV DroneCan High Precision RM3100 Magnetic C-Compass For Pixhawk And Autopilot
| Part No.: | CUAV-RM3100 |
| Manufacturer: | CUAV |
Send to a friend
Features
*RM3100 magnetic sensor
*CUAV self-developed M4C software
*Built-in STM32F4 processor
*Compatible with APM/PX4 flight software platform
*CUAV self-developed M4C software
*Built-in STM32F4 processor
*Compatible with APM/PX4 flight software platform
Product Details
MCU: STM32F4
Protocol: DroneCAN/UAVCAN
Sensor: RM3100
Software Architecture: CUAV M4C
Communication rate: 2Mb
Refresh rate: 80Hz
Noise: 15nT
Accuracy: 0.25°(effective value)
Repetition accuracy: 0.05°
Resolution: 0.01°
Sensitivity: 13nT
Range: -800 T to +800 T
Controller type: PX4/ArduPilot (CUAV/Pixhawk e.g.)

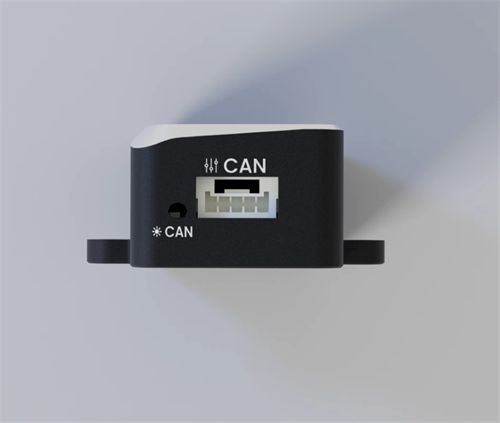

Interface: GHR-04V-S
Operating Voltage: 4.75 - 5.3V
Operating temperature: -20~80°C
Operating humidity: 5% - 95% (non-condensing)
Casing material: Aluminum alloy.
Weight: 13g
Protocol: DroneCAN/UAVCAN
Sensor: RM3100
Software Architecture: CUAV M4C
Communication rate: 2Mb
Refresh rate: 80Hz
Noise: 15nT
Accuracy: 0.25°(effective value)
Repetition accuracy: 0.05°
Resolution: 0.01°
Sensitivity: 13nT
Range: -800 T to +800 T
Controller type: PX4/ArduPilot (CUAV/Pixhawk e.g.)
Interface: GHR-04V-S
Operating Voltage: 4.75 - 5.3V
Operating temperature: -20~80°C
Operating humidity: 5% - 95% (non-condensing)
Casing material: Aluminum alloy.
Weight: 13g

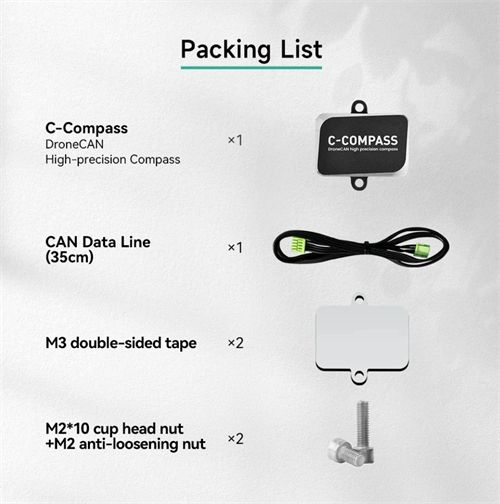

Item Packing
1×C-Compass DroneCAN
1×CAN Data Line (35cm)
2×M3 double-sided tape
2×M2*10 cup head nut + M2 anti-loosening nut.
1×CAN Data Line (35cm)
2×M3 double-sided tape
2×M2*10 cup head nut + M2 anti-loosening nut.

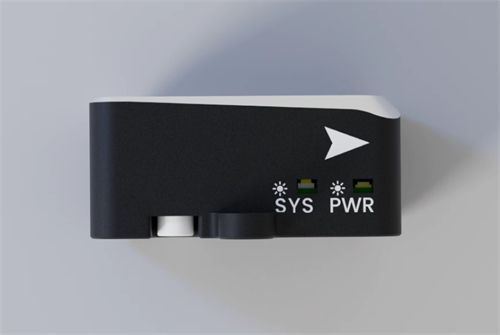

Detailed Images
