Foxeer Toothless 2 Mini 1200TVL Angle Switchable Starlight FPV Camera 1/2
| Part No.: | FO-1200TVL |
| Manufacturer: | Foxeer |
Send to a friend
Features

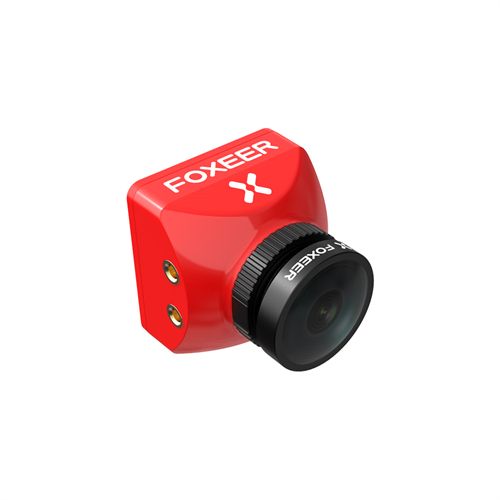

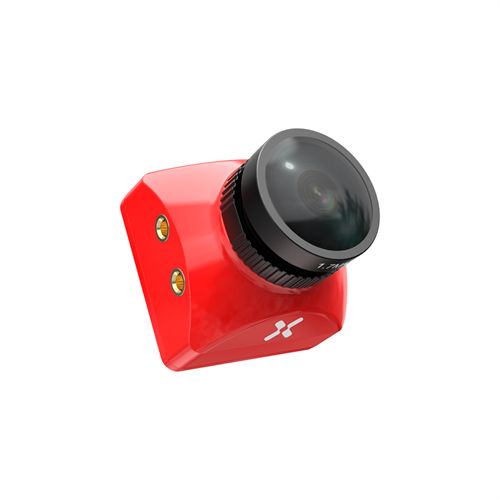

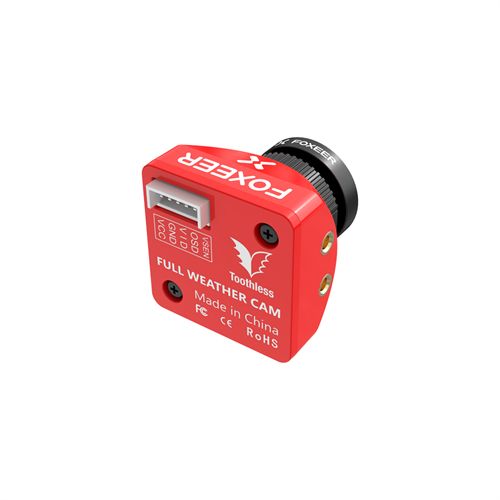

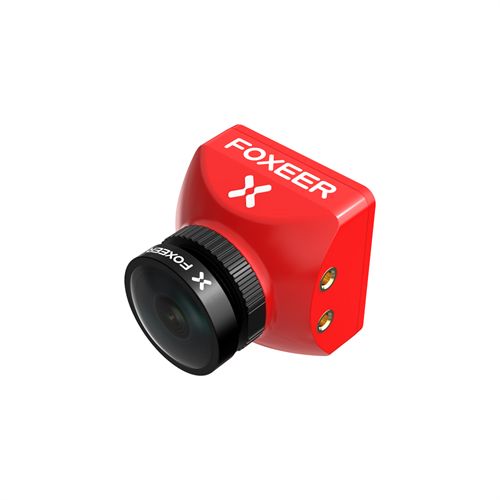

Foxeer Toothless 2 Mini 1200TVL Angle Switchable Starlight FPV Camera 1/2" Sensor Super HDR for RC FPV Racing Drones
Product Details
Sensor Type: Sony 1/2" CMOS Sensor
Scale: 4:3/16:9 Switchable
Tv System: PAL/NTSC Switchable
Resolution: 1200TVL
Lens: 1.7mm
FOV
- 4:3 WIDE FOV-H: 145° FOV-D:180°
- 4:3 NARROW FOV-H: 125° FOV-D:160°
- 16:9 FOV-H: 145° FOV-D:165°
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: CVBS Analog Signal
Minimum Illumination: 0.0001Lux
White Balance: Auto
DNR: 3DNR
WDR: 100dB
DAY/NIGHT: EXT/Auto/Color/B&W

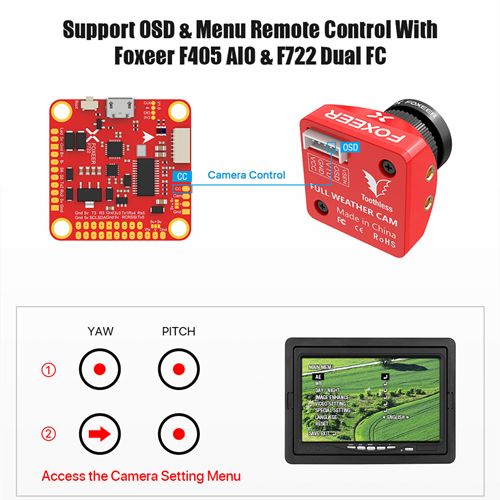

Flight OSD: Voltage/Cam Title/Time
Input Voltage: 3.8V~16V
Language ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
Storage Temperature: -20°~70°C
Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V

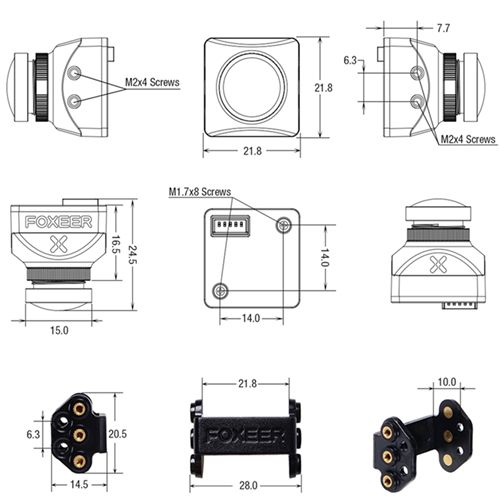

Dimension: 21.8*21.8mm(No support)
Weight: 9.7g(Exclude cable)
Scale: 4:3/16:9 Switchable
Tv System: PAL/NTSC Switchable
Resolution: 1200TVL
Lens: 1.7mm
FOV
- 4:3 WIDE FOV-H: 145° FOV-D:180°
- 4:3 NARROW FOV-H: 125° FOV-D:160°
- 16:9 FOV-H: 145° FOV-D:165°
Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: CVBS Analog Signal
Minimum Illumination: 0.0001Lux
White Balance: Auto
DNR: 3DNR
WDR: 100dB
DAY/NIGHT: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Input Voltage: 3.8V~16V
Language ENGLISH /中文/ PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本语 / EAAHNIKA
Storage Temperature: -20°~70°C
Consumption: 50mA±15% @ DC12V 115mA±15% @ DC5V
Dimension: 21.8*21.8mm(No support)
Weight: 9.7g(Exclude cable)

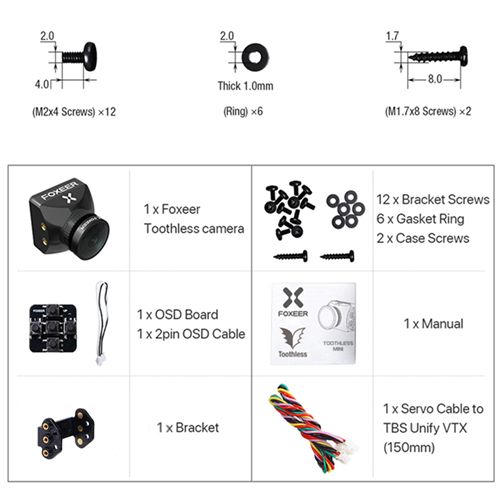

Item Packing
1 x Foxeer Toothless camera
1 x OSD Board
1 x 2pin OSD Cable
1 x Bracket
12 x Bracket Screws
6 x Gasket Ring
2 x Case Screws
1 x Manual
1 x Servo Cable to TBS Unify VIX(150mm)
1 x OSD Board
1 x 2pin OSD Cable
1 x Bracket
12 x Bracket Screws
6 x Gasket Ring
2 x Case Screws
1 x Manual
1 x Servo Cable to TBS Unify VIX(150mm)
Detailed Images
