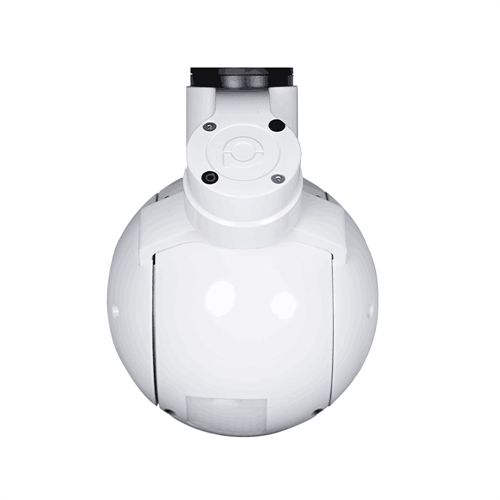

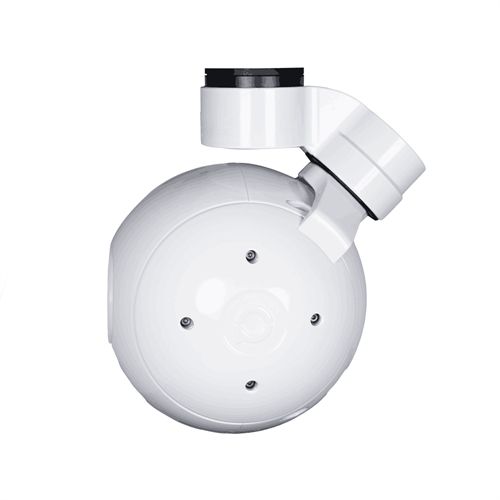

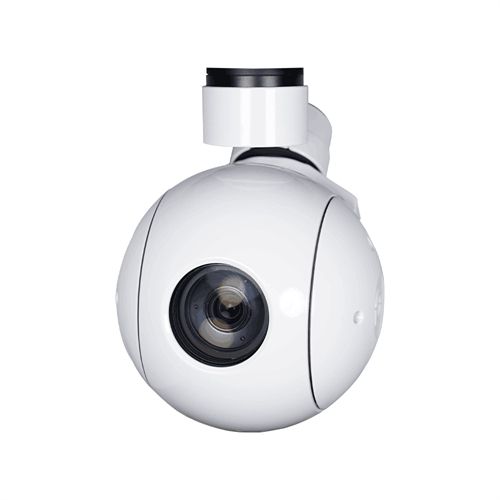

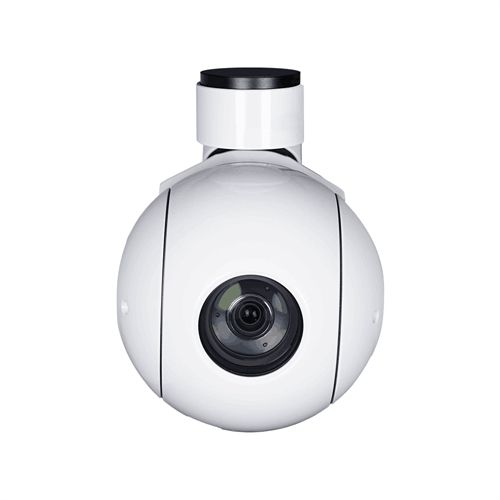

Q30T Pro II 30x Optical Zoom Lens Camera with 3-axis Gimbal for Surveillance and Rescue

Part No.:	Q30T-Pro
Manufacturer:	Feixiang

Send to a friend

Features

Q30T pro Ⅱ features a 30x optical zoom lens. It’s powered by SONY 1/2.8” “Exmor R” CMOS module, FHD 1080p video, fast auto-focus speed, designed for UAV aerial photography. A lightweight design combined with 3-axis gimbal makes the gimbal motors ultra-reactive. FOC solution can greatly compensate the vibration of UAV. Yaw axis could realize 360° continuous rotation with default SDI output. At the same time, Q30T pro can achieve target tracking. The image is stable even at 30 times optical zoom. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30T pro Ⅱ can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.

Product Details

Hardware Parameter
- Working voltage: 12V
- Input voltage: 4S ~ 6S
- Output voltage: 5V (connect with PWM)
- Dynamic current: 500mA @ 12V
- Idle current: 400mA @ 12V
- Power consumption: ≤ 6W
- Working environment temp.: -20℃ ~ +60℃

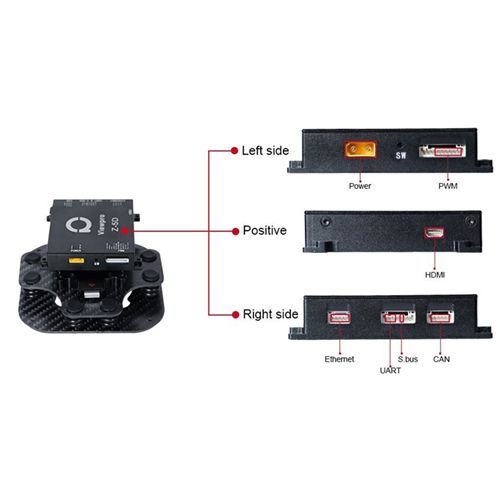

- Output :SDI / IP / micro HDMI(FHD output 1080P 60fps)
- Local-storage: SD card (Up to 128G, class 10, FAT32 or ex FAT format)
- Control method: PWM / TTL / S.BUS/TCP(IP output version)
Gimbal spec
- Pitch/Tilt: +45°~-90°
- Roll: ±39°
- Yaw/Pan: ±300°/±360°*N(IP/SDI output version)
- Vibration angle: Pitch/Roll: ±0.02°, Yaw：±0.03°
- One-key to center: √
Camera spec
- Imager Sensor: SONY 1/2.8" "Exmor R" CMOS
- Picture quality: Full HD 1080 (1920*1080)
- Effective pixel: 2.13MP
- Lens optical zoom: 30x, F=4.3~129mm
- Digital zoom: 12x (360x with optical zoom)
- Min object distance: 10mm(wide end) to 1200mm(tele end). Default 300mm
- Horizontal viewing angle: 1080p mode: 63.7°(wide end) ~ 2.3°(tele end); 720p mode: 63.7°(wide end) ~ 2.3°(tele end); SD: 47.8°(wide end) ~ 1.7°(tele end)
- Sync system: Internal
- S/N ratio: more than 50dB
- Min illumination: Color 0.01lux@F1.6
- Exposure control: Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
- Gain: Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps); Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
- White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
- Shutter speed: 1/1s to 1/10,000s, 22 steps
- Backlight compensation: Yes
- Aperture control: 16 steps
- Defog: Yes
- OSD: Yes
Camera Object Tracking
- Update rate of deviation pixel: 50Hz
- Output delay of deviation pixel: <10ms
- Minimum object contrast: 5%
- SNR: 4
- Minimum object size: 32*32 pixel
- Maximum object size: 128*128 pixel
- Tracking speed: ±48 ~ ±192 pixel/frame
- Object memory time: 100 frames (4s)
- The mean square root values of pulse noise in the object position: < 0.5 pixel
Packing Information
- N.W.: 876g
- Product meas.: 121.5*126.4*181.5mm

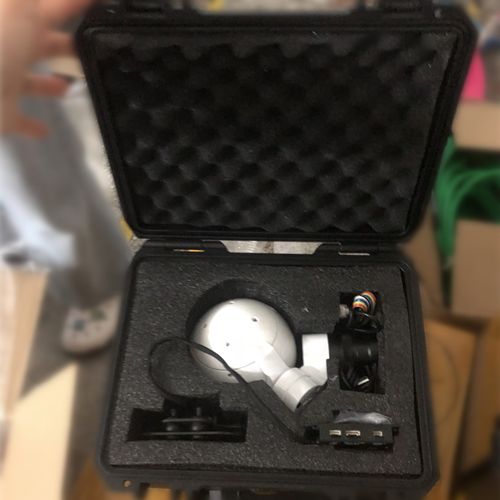

- Accessories: 1pc gimbal camera device / plastic box
- G.W.: 3058g
- Package meas.: 360*300*250mm
