2018 Newest Makeblock Me Ultrasonic Sensor 11001

Part No.:	11001
Manufacturer:	Makeblock

Send to a friend

Features

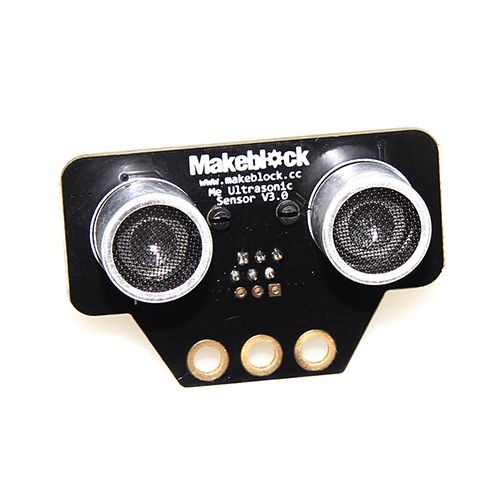

Me Ultrasonic Sensor is an electronic module to measuring distance in the range of 3cm to 400cm. It can be used for the projects to help the handcart avoid obstacles or other relevant distance-measuring and obstacle avoidance projects. Its yellow ID means that it has a single-digital port and needs to be connected to the port with yellow ID on Makeblock Orion.

Product Details

Technical specifications
● Operating voltage: 5V DC
● Measurement angle: 30 degree
● Measurement range: 3-400cm (with error less than 1cm)
● Ultrasonic frequency: 42 KHz
● Control mode: Single-digital port control
● Module size: 56 x 36 x 31 mm (L x W x H)

Functional characteristics
● Anti-reverse protection – connecting the power supply inversely will not damage IC
● White area of module is the reference area to contact metal beams
● Support mBlock GUI programming, and applicable to users of all ages
● Adopt RJ25 port for easy connection
● Provide pin-type of port to support most development boards including Arduino series

Item Packing

2018 Newest Makeblock Me Ultrasonic Sensor 11001 x 1
