JX RD-C7638HV-180 38kg.cm 180° coreless full CNC aluminium hulls and structure Robot servo
| Part No.: | RD-C7638HV-180 |
| Manufacturer: | JX |
Send to a friend
Features
- High performance robot servo
- High-precision metal gears with hard anodizing
- Full CNC aluminium hulls and structure
- High quality coreless motor
- Dual ball bearings
- High-precision metal gears with hard anodizing
- Full CNC aluminium hulls and structure
- High quality coreless motor
- Dual ball bearings
Product Details
Dead band: 2μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Coreless
Max angle：180°±2°
Frequence: 330hz
Voltage：5.0V/7.2V/8.4V
Operating Speed(5.0V/7.2V/8.4V): 0.14/0.12/0.10sec/60°
Stall torque(5.0V/7.2V/8.4V): 31/33.5/38 kg.cm
Demension: 40X20X40mm
Weight: 76 g
Connector Wire Length: JR 265mm
Spline Count: 25T
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Coreless
Max angle：180°±2°
Frequence: 330hz
Voltage：5.0V/7.2V/8.4V
Operating Speed(5.0V/7.2V/8.4V): 0.14/0.12/0.10sec/60°
Stall torque(5.0V/7.2V/8.4V): 31/33.5/38 kg.cm
Demension: 40X20X40mm
Weight: 76 g
Connector Wire Length: JR 265mm
Spline Count: 25T
Item Packing
JX RD-C7638HV-180 38kg.cm 180° coreless full CNC aluminium hulls and structure Robot servo x 1

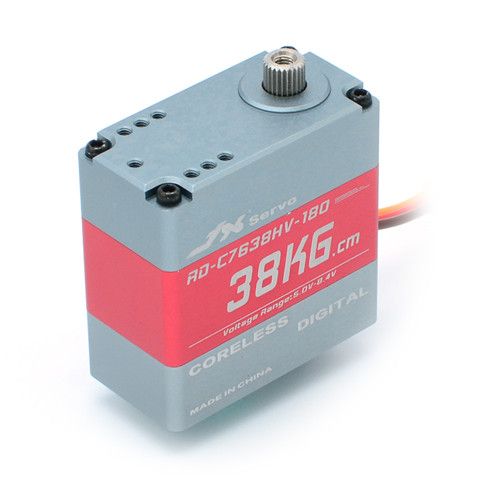

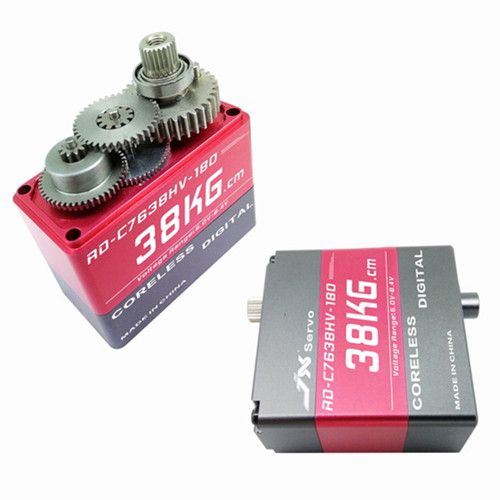

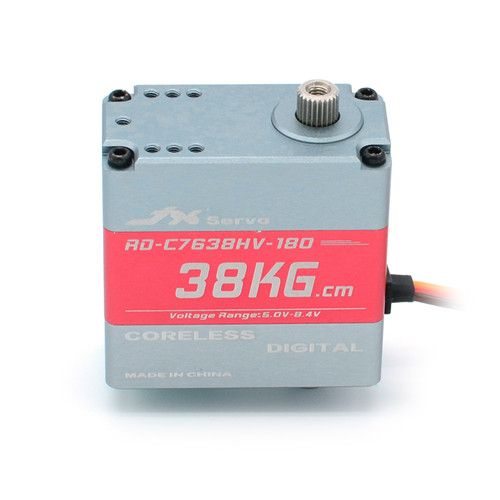

Detailed Images
