JX PDI-6209MG 4.8V-6V 0.13sec/60°9.35KG Digital Metal Gear Servo for 1/10 RC Car Parts
| Part No.: | PDI-6209MG |
| Manufacturer: | JX |
Send to a friend
Features
High Speed 0.13sec/60 @6V
9.35kg large torque.9.35kg·cm @6V
Aluminiums case: It can enhance the heat dissipation, ensure that servo motor can work well
Full metal gear: It's better for accuracy, service life has been greatly increased
It is suitable for 1/10 RC car.
9.35kg large torque.9.35kg·cm @6V
Aluminiums case: It can enhance the heat dissipation, ensure that servo motor can work well
Full metal gear: It's better for accuracy, service life has been greatly increased
It is suitable for 1/10 RC car.
Product Details
Number of teeth: 25
Rotation angle: 120 °
Deadband: 2 μ s
Pulse width: 900-2100us (suitable for remote control)
Angle: 120 °
Motor: iron core
Speed (4.8V): 0.15 sec / 60 °
Speed (6V): 0.13 sec / 60 °
Torque (4.8V): 8.65 kg. cm (120.15 oz / in)
Torque (6V): 9.35 kg cm (129.88 oz / in)

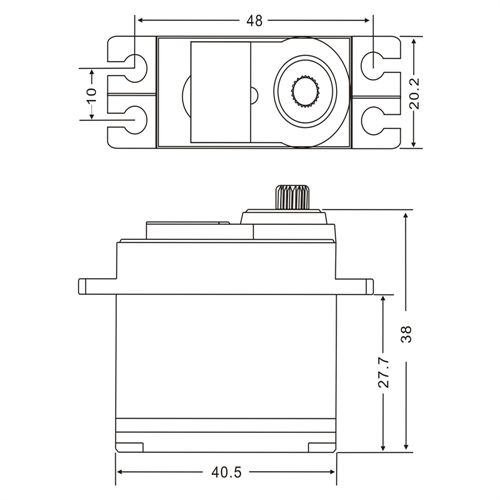

Size: 40.5x20.2x38mm/1.59x0.80x1.49in
Weight: 62 g (2.18 oz)
Connecting wire: JR 265 mm (10.43 in)
Bearing: 2BB
Rotation angle: 120 °
Deadband: 2 μ s
Pulse width: 900-2100us (suitable for remote control)
Angle: 120 °
Motor: iron core
Speed (4.8V): 0.15 sec / 60 °
Speed (6V): 0.13 sec / 60 °
Torque (4.8V): 8.65 kg. cm (120.15 oz / in)
Torque (6V): 9.35 kg cm (129.88 oz / in)
Size: 40.5x20.2x38mm/1.59x0.80x1.49in
Weight: 62 g (2.18 oz)
Connecting wire: JR 265 mm (10.43 in)
Bearing: 2BB

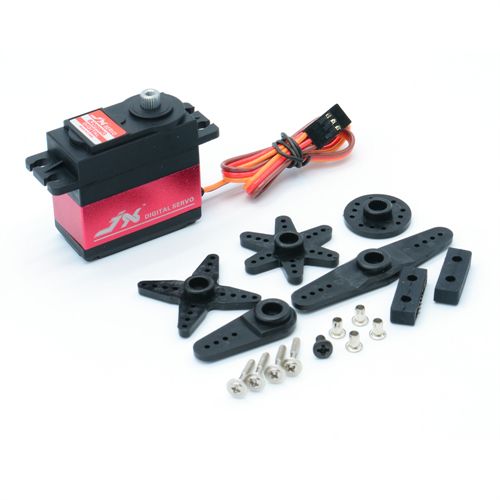

Item Packing
1 x PDI-6209MG Digital Metal Gear Servo
1 x Set of Accessories
1 x Set of Accessories
Detailed Images
