JX CLS6322HV 21kg Large Torque Aluminium Shell Metal Gear High Voltage Hollow Cup Servo For RC Car Robot Drone Parts
| Part No.: | CLS6322HV |
| Manufacturer: | JX |
Send to a friend
Features
-- High-performance 22KG large torque hollow cup servo
-- High precision gear Made in Taiwan
-- All metal high voltage servo
-- Double ball bearing
-- High precision gear Made in Taiwan
-- All metal high voltage servo
-- Double ball bearing
Product Details
Working voltage: 6.0-7.40V
Working temperature: -20 ~ + 60 ℃
Deadband setting: 2μs microseconds
Pulse width: 500-2500μs
Angle: 180 °
Working frequency: 1520μs / 300Hz
Motor: Hollow Cup Motor
Operating speed (6.0V): 0.09sec / 60 °
Operating speed: 7.4V): 0.07sec / 60 °
Torque (6.0V): 17.21 kg.cm (238.98oz / in)
Torque (7.4V): 21.06kg.cm (292. 44oz / in)
Size: 40 5X20.5X40mm /1.59X0.81X1.57in
Weight: 63g (2.22oz)
Cable length: JR 265 mm (10.43in)
Working temperature: -20 ~ + 60 ℃
Deadband setting: 2μs microseconds
Pulse width: 500-2500μs
Angle: 180 °
Working frequency: 1520μs / 300Hz
Motor: Hollow Cup Motor
Operating speed (6.0V): 0.09sec / 60 °
Operating speed: 7.4V): 0.07sec / 60 °
Torque (6.0V): 17.21 kg.cm (238.98oz / in)
Torque (7.4V): 21.06kg.cm (292. 44oz / in)
Size: 40 5X20.5X40mm /1.59X0.81X1.57in
Weight: 63g (2.22oz)
Cable length: JR 265 mm (10.43in)

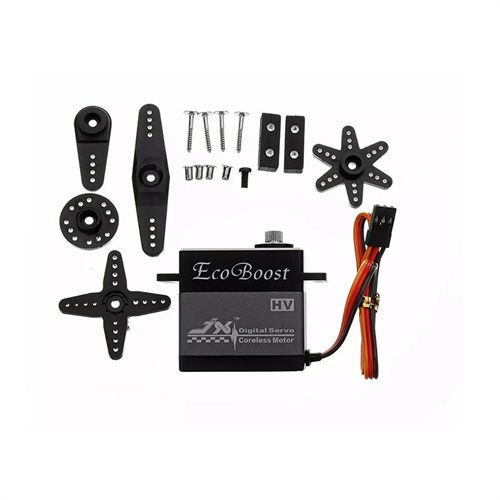

Item Packing
1 x Servo
1 x Servo Accessories
1 x Servo Accessories

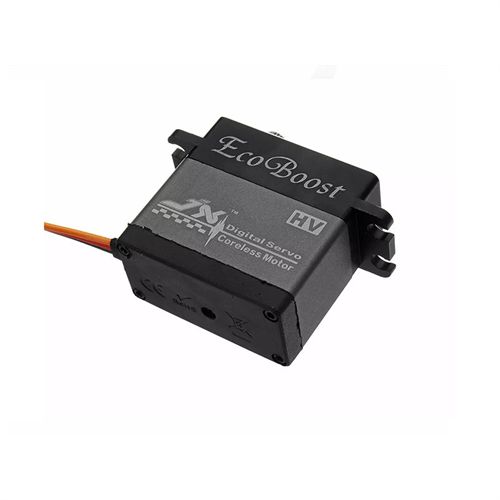

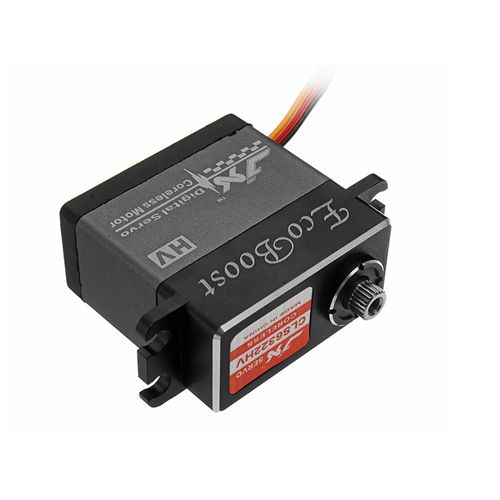

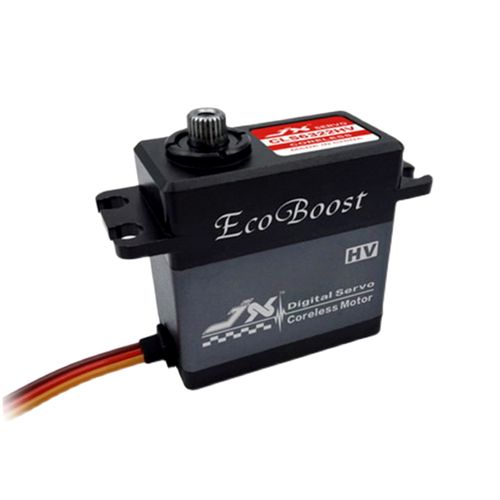

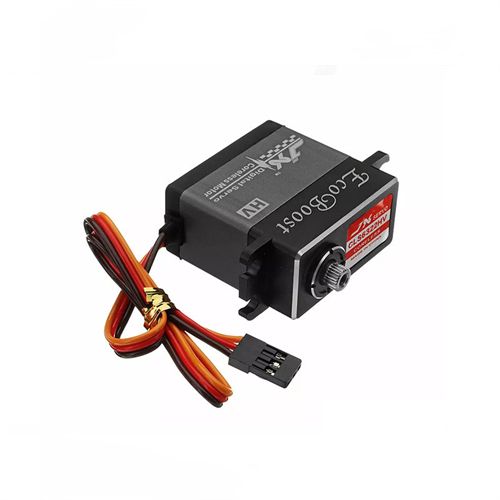

Detailed Images
