Hobbywing HW38020250 Combo XeRun AXE540 2300kv FOC Sensored Brushless System

Hobbywing HW38020250 Combo XeRun AXE540 2300kv FOC Sensored Brushless System
Part No.: AXE540-2300COMBO
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

New sensor technology has changed the feel, performance, and overall tune-ability of the new Axe ESC and Motor in ways some
have never experienced. Field-oriented Control is the name of this new tech, and is something all new to the scale trail, rock racing,
and rc world in-general. This new style of sensor allows extremely accurate control and sensing of the motor while maintaining
extreme performance and reliability. The motor and ESC are able to match the RPM of the motor to your throttle position under all
driving conditions. This greatly improves down hill driving giving this system the ability to drive down hill under complete control.
FOC technology also makes the whole system extremly silent, the motor doesn't create the annoying PWM noise when it is running.

Product Details

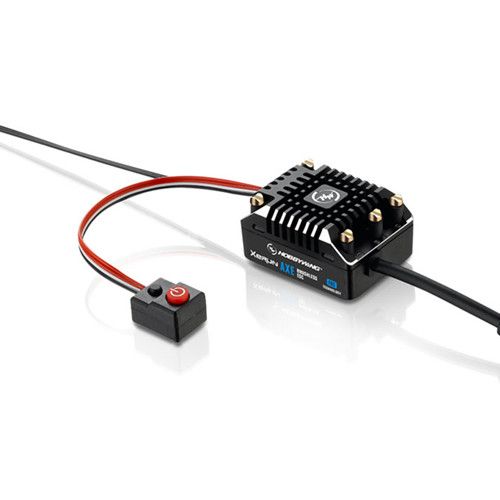

ESC
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: SD FOC
Waterproof: YES (IP67)
Applications: 1/10 Rock Crawler
Cont./Peak Current: 60A/360A
Input Voltage: 2-3S Lipo/6-9 Cell NiMH
BEC Output: Switch Mode:6V/7.4V@3A
Wires & Connectors
Input Wires: Red-14AWG-200mm*1/ Black-14AWG-200mm*1
Output Wires: No
Input Connectors: XT60
Output Connectors: Solder Posts
ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Bluetooth Connection: Supported
Firmware Upgrade: Supported
Size: 47.4x36.2x24.6mm
Weight: 82g

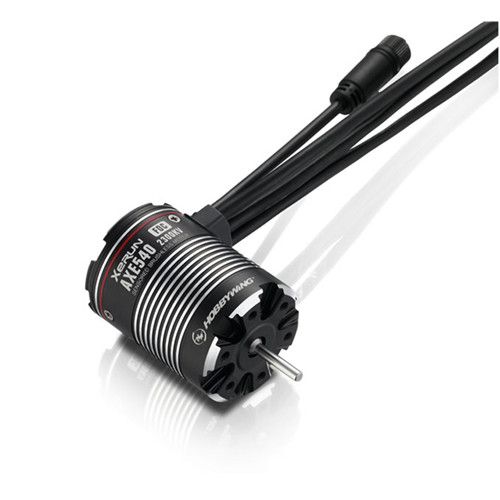

Motor
Poles: 4
Resistance: .037Ω
No Load Current: 1.5A
Diameter: 36.0mm (1.42")
Length: 48.8mm (1.92")
Shaft Diameter: 3.175 (0.125")
Shaft Length: 15.5mm (0.61")
Weight: 175g (6.17oz)

Item Packing

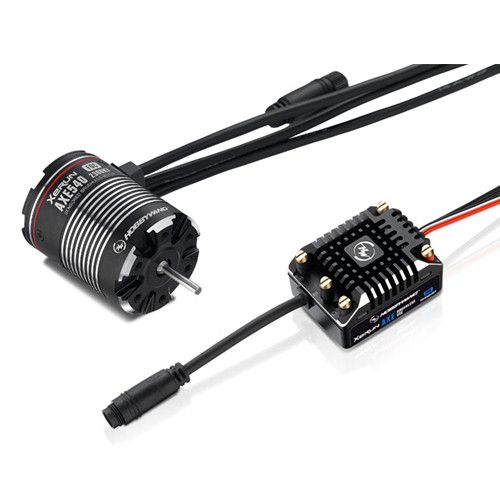

Hobbywing XERUN AXE540 2300KV-FOC Sensored Brushless System  x 1set

Detailed Images
