Waveshare Motor Driver Board 5V Regulator Drives Motors and Servos for micro:bit

Part No.: | WS-MDB-15220 |
Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Motor Driver Board 5V Regulator Drives Motors and Servos for micro:bit
Product Details
Model:Motor Driver for micro:bi
SKU:15220
Weight: 19g
Power supply:6V~12V (VIN terminal)
Servo voltage:5V
Logic voltage:3.3V
Driver:TB6612FNG

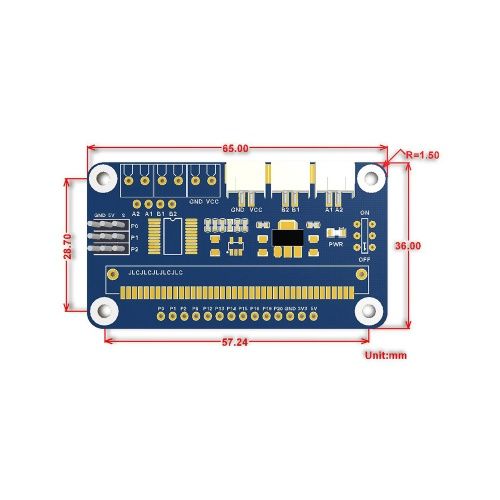

Dimension:65mm×36mm
Mounting hole size:3.0mm
SKU:15220
Weight: 19g
Power supply:6V~12V (VIN terminal)
Servo voltage:5V
Logic voltage:3.3V
Driver:TB6612FNG
Dimension:65mm×36mm
Mounting hole size:3.0mm
Item Packing
Motor Driver x1

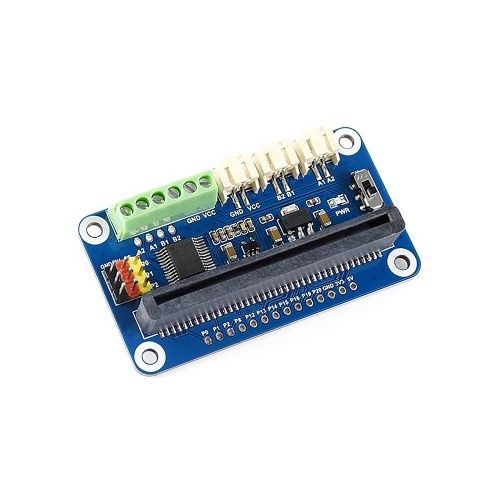

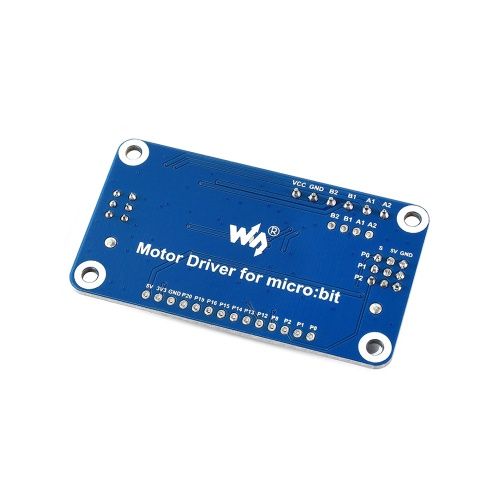

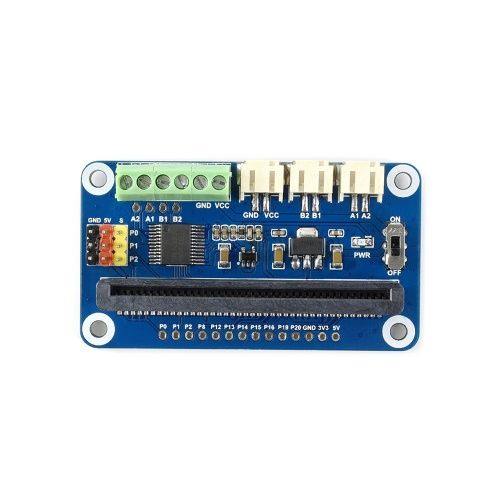

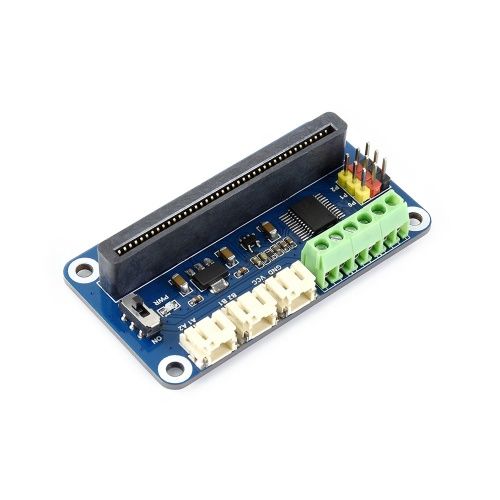

Detailed Images
