CUAV SX Radio Telemetry 1000mw FPV Transmitter Module For Pixhawk Pixhack Flight Control FPV RC Drone Quadcopter

CUAV SX Radio Telemetry 1000mw FPV Transmitter Module For Pixhawk Pixhack Flight Control FPV RC Drone Quadcopter
Part No.: CUAV-SX
Manufacturer: CUAV

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

CUAV SX Radio  module to solve the low cost wireless data solutions provides unprecedented scope. This module is simple and easy to use, especially suitable for unmanned units and point to point network transmission over the horizon, can provide the critical stable data transmission between UAV and equipment. Their size is small, saving valuable machines

Hight power and modulates
Adjustable transmitting power from 1mw-1000mw

Ultra high sensitivity
In low bit rate mode, the receiver has the highest -113 DBM sensitivity

Long distance
105 km (65 mi) *****
security and encryption
Support 256-bit AES encryption for secure data communications

CNC Integral forming shell
CNC aluminum alloy shell, lightweight, strong, beautiful and anti interference

Product Details

CUAV® SX RF
PERFORMANCE
FREQUENCY RANGE: ISM 902 to 928 MHz
TRANSMIT POWER (SOFTWARE SELECTABLE): Up to 30 dBm*
CHANNELS: 10 hopping sequences share 50 frequencies
Low data rate: 10 kb/s; Middle data rate: 110 kb/s; High data rate: 250 kb/s
MAXIMUM DATA THROUGHPUT: High data rate: 120 kb/s
AVAILABLE CHANNEL FREQUENCIES: Low and middle data rate: 101**; High data rate: 50
Low data rate: -113 dBm; Middle data rate: -106 dBm; High data rate: -103 dBm
Low data rate, +/- 250 kHz: 40 dB; Low data rate, +/- 500 kHz: 50 dB Middle data rate, +/- 250 kHz: 30 dB; Middle data rate, +/- 500 kHz: 40 dB High data rate, +/- 500 kHz: 30 dB; High data rate, +/- 1000 kHz: 45 dB
RECEIVER RF SELECTIVITY: Below 900 MHz and above 930 MHz; > 50 dB
RURAL RANGE LINE OF SIGHT*** : Low data rate: Up to 105 km (65 mi)
URBAN RANGE LINE OF SIGHT**** : Low data rate: Up to 18 km (11 mi)
INDOOR RANGE: Low data rate: Up to 300 m (1,000 feet)
NETWORKING AND SECURITY
SPREADING TECHNOLOGY: Frequency Hopping Spread Spectrum (FHSS)
Peer-to-peer (master/slave relationship not required), point-to-point/point-to-multipoint, mesh
Optional 256-bit AES CBC encryption. Encryption is enabled with the ATKY command.
GENERAL
DIMENSIONS 尺寸
WEIGHT: 40g
ROHS: Compliant
MANUFACTURING: ISO 9001:2000 registered standards
HOST INTERFACE CONNECTOR: 37 castellated SMT pads
ANTENNA CONNECTOR OPTIONS: SMA
ANTENNA IMPEDANCE: 50 ohms unbalanced
MAXIMUM INPUT RF LEVEL AT ANTENNA PORT : 6 dBm
OPERATING TEMPERATURE: -40° C to 85° C
POWER REQUIREMENTS: power
SUPPLY VOLTAGE: 5 V typical
RECEIVE CURRENT (VCC = 5 V) : 40 mA
TRANSMIT CURRENT (VCC = 5 V): 900 mA @ 30 dBm; 640 mA @ 27 dBm; 330 mA @ 20 dBm
SLEEP CURRENT (VCC = 5 V): 2.5 uA
REGULATORY APPROVALS 认证
UNITED STATES: FCC ID: MCQ-XBPSX
CANADA: IC: 1846A-XBPSX
AUSTRALIA: RCM

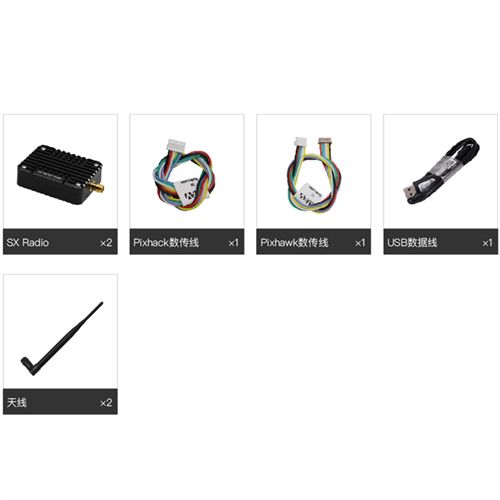

Item Packing

2 x SX 1000mw Radio date transmission
2 x SX-PIXHAWK date transmission wire
1 x micro USB wire
2 x 900MHZ Date transmission antenna

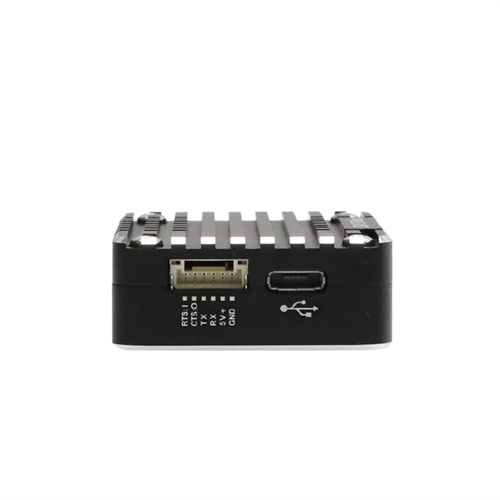

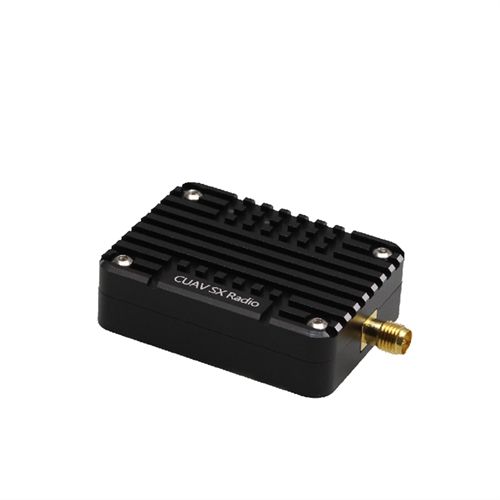

Detailed Images
