DALRC 5.8GHz 32CH 600mW AV Wireless Transmission Q Transmitter TX Module Dupont Plug

DALRC 5.8GHz 32CH 600mW AV Wireless Transmission Q Transmitter TX Module Dupont Plug
Part No.: TX6032-B
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-DALRC 5.8GHz 32CH 600mW AV Wireless Transmission Q Transmitter TX Module Dupont Plug

Product Details

- Frequency: 5.8GHz
- Power: 600mW/27DB
- Work voltage: 6V~28VDC
- Work current: 310mA@12V
- Channel: 32
- Dimension: 23*25*7.7mm
- Weight: 13g
- Port: Dupont Plug

Channels:

A1:  5.645G

B1:  5.740G

C1:  5.725G

D1:  5.733G

A2:  5.665G

B2:  5.760G

C2:  5.745G

D2:  5.752G

A3:  5.685G

B3:  5.780G

C3:  5.765G

D3:  5.771G

A4:  5.705G

B4:  5.800G

C4:  5.785G

D4:  5.790G

A5:  5.885G

B5:  5.820G

C5:  5.805G

D5:  5.809G

A6:  5.905G

B6:  5.840G

C6:  5.825G

D6:  5.828G

A7:  5.925G

B7:  5.860G

C7:  5.845G

D7:  5.847G

A8:  5.945G

B8:  5.860G

C8:  5.865G

D8:  5.866G


Item Packing

-DALRC 5.8GHz 32CH 600mW AV Wireless Transmission Q Transmitter TX Module X 1

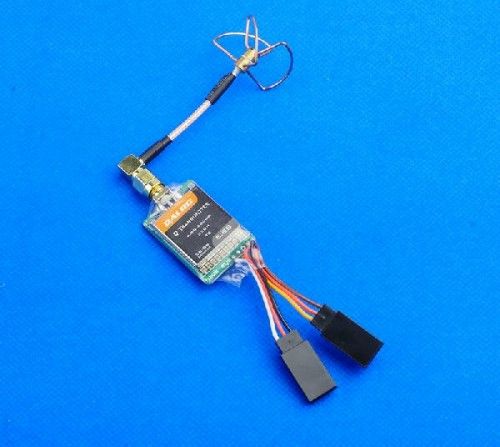

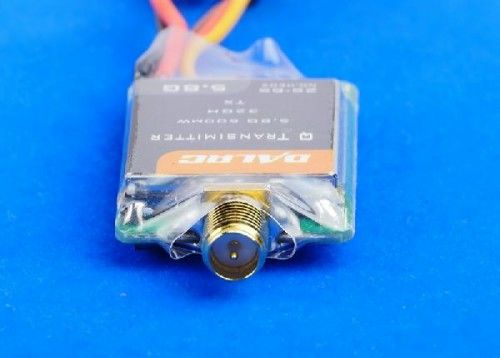

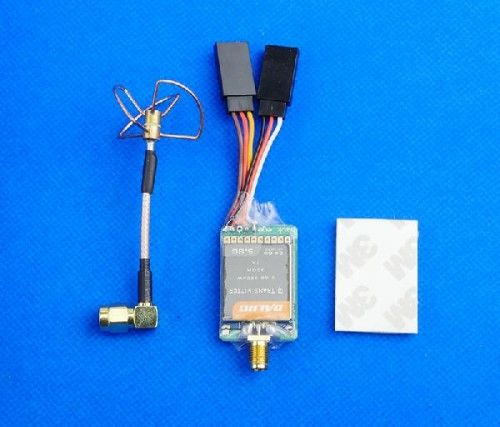

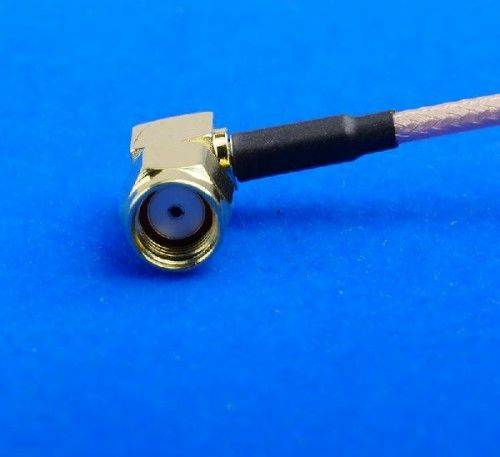

Detailed Images
