DYS MR Series MR2205 2300KV Brushless Motor CCW For FPV Mini Quad Racer

DYS MR Series MR2205 2300KV Brushless Motor CCW For FPV Mini Quad Racer
Part No.: MR2205-2300CCW
Manufacturer:

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

1. All the bearing are NSK from Japan
2. With Kawasaki, Japan 1200#0.2mm high efficiency silicon steel
3. With 40UH high temperature powerful magnet
4. More professional balancing test, making concentricity, balance is greatly enhanced.

Product Details

tem Name:MR2205
KV: 2300KV
Pull: 980g
Motor size:Φ27.7×18.5
Battery: 3-4S Lipo

KV.2300
Configu ration.NP
Stator Diameter.22.0mm
Stator Length.5.0mm
Shaft Diameter.3.0mm

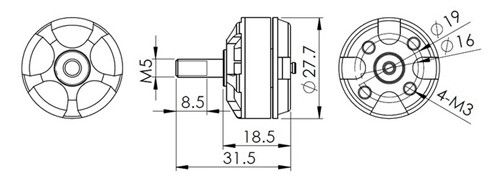

Motor Dimensions(Dia.*Len).Φ27.7×18.5mm
Weight (g).29.5g
No.of Cells(Lipo).3-4S
Max Continuous current(A).24.1A
Max Continuous Power(W).356.7W
Internal resistance.0.012Ω

Item Packing

- 1 X DYS MR2205 2300KV Brushless Motor CCW

- 1X 8mm Wrench for Lock Nut

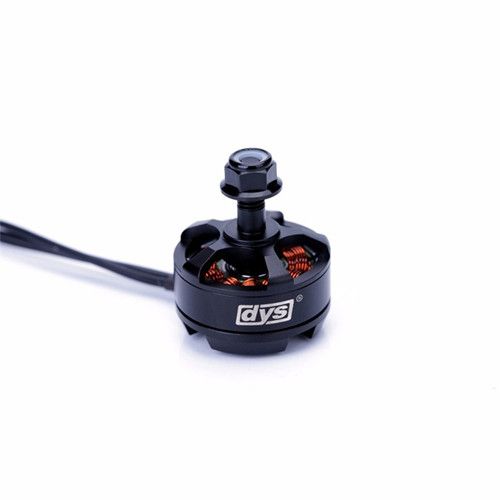

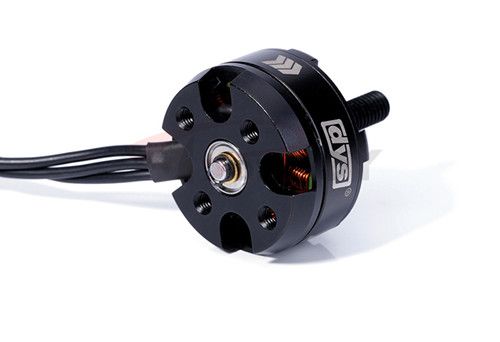

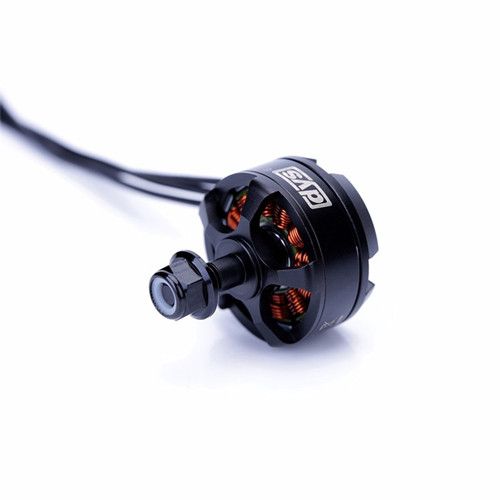

Detailed Images
