EV-PEAK C1-XR 100W 10A AC/DC 1-6S Battery Balance Charger for RC Model
| Part No.: | C1-XR |
| Manufacturer: | Feixiang |
Send to a friend
Features
Create a safe charging condition and maximum reduce the danger caused by negligence or setting error of user.
Synchronous buck&boost converter technology makes conversion efficiency up to 90%.
Accept all typs of RC/Drone/Airsoft batteries: LiPo/LiLo/LiFe/NiMH/NiCd/Pb.
Perform 1-5cycles of C>D or D>C continually for NiMH/NiCd refreshing.
Various of charging mode to meet different demand.
Easy to operate.
Synchronous buck&boost converter technology makes conversion efficiency up to 90%.
Accept all typs of RC/Drone/Airsoft batteries: LiPo/LiLo/LiFe/NiMH/NiCd/Pb.
Perform 1-5cycles of C>D or D>C continually for NiMH/NiCd refreshing.
Various of charging mode to meet different demand.
Easy to operate.
Product Details
Brand Name: EV-PEAK
Item NO: C1-XR
AC Input:100V-240V
DC Input: 11.0V-18.0V
Charge power: max. 100W
Dishcarge power: max. 5W
Charge current: 0.1-10.0A
Discharge current: 0.1-2.0A
Balance tolerence: ±0.01V
NiCd/NiMH battery cell count: 1 - 15cells
LiPo/LiLo/LiFe battery cell count: 1 - 6series
Pb battery voltage: 2 V - 24V
Dimension:130*115*61 mm
Weight:380g
Item NO: C1-XR
AC Input:100V-240V
DC Input: 11.0V-18.0V
Charge power: max. 100W
Dishcarge power: max. 5W
Charge current: 0.1-10.0A
Discharge current: 0.1-2.0A
Balance tolerence: ±0.01V
NiCd/NiMH battery cell count: 1 - 15cells
LiPo/LiLo/LiFe battery cell count: 1 - 6series
Pb battery voltage: 2 V - 24V
Dimension:130*115*61 mm
Weight:380g

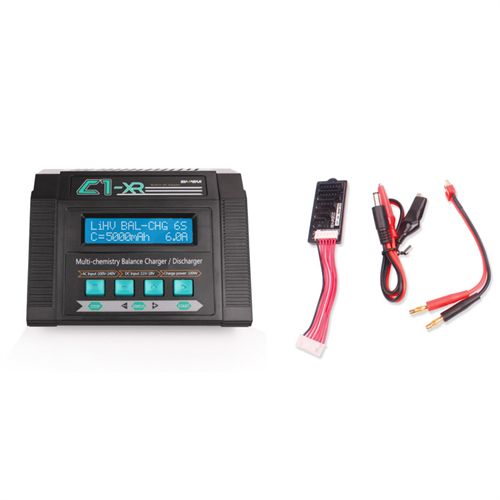

Item Packing
1 x Charger
1X AC power cord
1X DC input cable
1X Charging cable
1X Balancing adapter board XH
1 x Instruction
1X AC power cord
1X DC input cable
1X Charging cable
1X Balancing adapter board XH
1 x Instruction
Detailed Images
