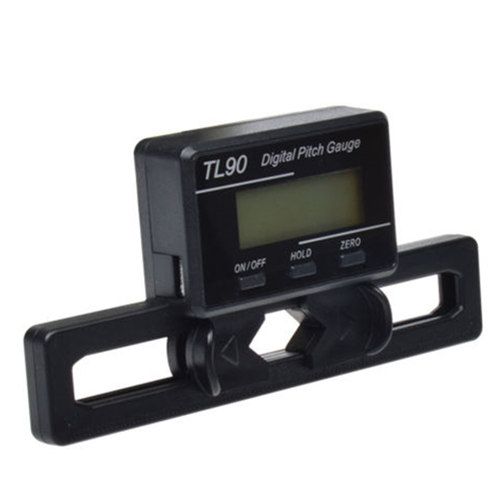

TL90 LCD Digital Pitch Gauge For ST250-800 Flybarless Helicopter
| Part No.: | TL90-LCD |
| Manufacturer: | Feixiang |
Send to a friend
Features
This gauge TL90 can be used on the helicopter with flybar or flybarless,the built-in digital gyro can detective
the pitch of the blade automatically and display on the LCD with backlight
LCD display with backlight
Screen automatic reversal function
Automatic level angle sense
Delay angle return to zero and locking
Suitable for the blade length from 250mm to 800mm
Product Details
Blade length:250mm-800mm
Working voltage: 3.0 V / DC (2 x CR2032, included);
Working temperature: 0 centigrade - 40 centigrade
Max. current consumption: 3mA;
Measure precision: 0.1 degree
Measure scope: ±90°
Pitch gauge Dimensions (L x H x P): 60 mm x 37 mm x 16 mm (pitch gauge)
Sensor size (L x H x P): 120 mm x 68 mm x 6 mm (sensor)
Weight: aroung 48 g
Working voltage: 3.0 V / DC (2 x CR2032, included);
Working temperature: 0 centigrade - 40 centigrade
Max. current consumption: 3mA;
Measure precision: 0.1 degree
Measure scope: ±90°
Pitch gauge Dimensions (L x H x P): 60 mm x 37 mm x 16 mm (pitch gauge)
Sensor size (L x H x P): 120 mm x 68 mm x 6 mm (sensor)
Weight: aroung 48 g
Item Packing
TL90 LCD Digital Pitch Gauge For ST250-800 Flybarless Helicopter x 1
Detailed Images
