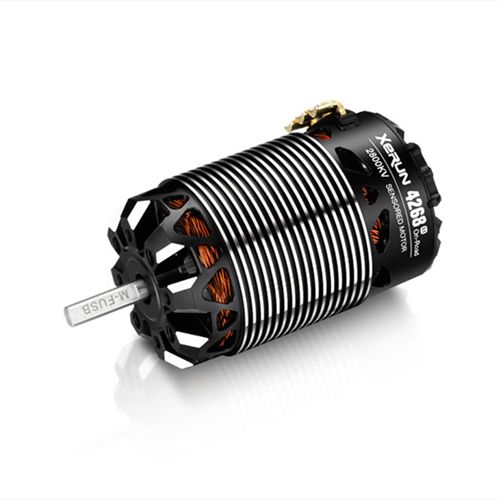

HobbyWing XeRun 4268SD 2800KV G3 OffRoad Brushless 4-pole SD Motor For RC 1/8 On-road Cars
| Part No.: | XeRun-4268SD-2800KVG3 |
| Manufacturer: | Hobbywing |
Send to a friend
Features
--Built-in intelligent integrated circuit is used so the sensor unit can easily be identified by the ESC
when pairing with Hobbywing's XeRun XR8 series of ESC's the motor will operate in “Pure Sensored” mode at all times, providing a better performance and a smoother throttle response.

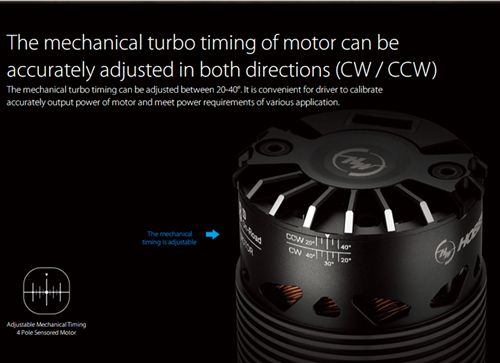

--The mechanical turbo timing can be adjusted between 20-40°. It is convenient for driver to calibrate accurately output power of motor and meet power requirements of various application.

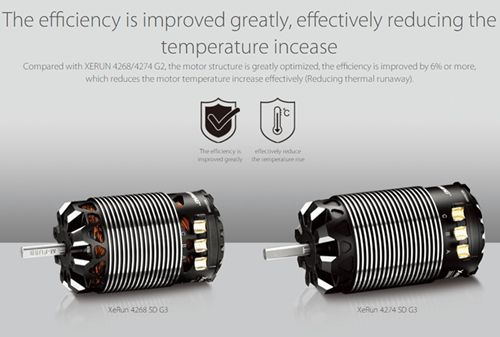

--Compared with XERUN 4268/4274 G2, the motor structure is greatly optimized, the efficiency is improved by 6% or more,which reduces the motor temperature increase effectively (Reducing thermal runaway).
--Excellent dustproof design.

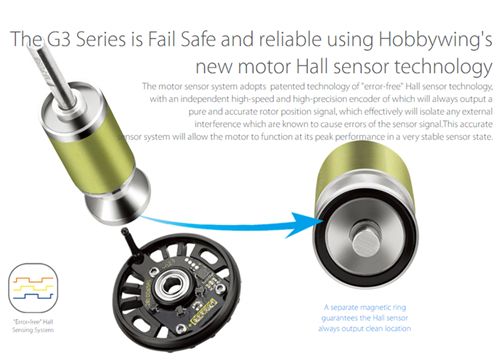

--The G3 Series is Fail Safe and reliable using Hobbywing's new motor Hall sensor technology
when pairing with Hobbywing's XeRun XR8 series of ESC's the motor will operate in “Pure Sensored” mode at all times, providing a better performance and a smoother throttle response.
--The mechanical turbo timing can be adjusted between 20-40°. It is convenient for driver to calibrate accurately output power of motor and meet power requirements of various application.
--Compared with XERUN 4268/4274 G2, the motor structure is greatly optimized, the efficiency is improved by 6% or more,which reduces the motor temperature increase effectively (Reducing thermal runaway).
--Excellent dustproof design.
--The G3 Series is Fail Safe and reliable using Hobbywing's new motor Hall sensor technology
Product Details
Product Name：XERUN-4268SD-2800KV-G3-OnRoa
Product Number：30401909
Scale：1/8th
Brushed/Brushless：BL
Sensored/Sensorles：SD
Pole Count：4
KV Ratin：2800kv
LiPo Cells：2-4S
No-load Current(A)：6.1A
O.D.(mm)：42(1.654in）
Length (mm)：67.8(2.669in)
Shaft Diameter (mm)：5.0(0.197in)
Weight (g)：300g
Front Bearing：D16*D5*T5
Rear Bearing：D11*D5*T5
Timing：20-40 Degrees(Adjustable）
Applications：1/8thOn-road
Product Number：30401909
Scale：1/8th
Brushed/Brushless：BL
Sensored/Sensorles：SD
Pole Count：4
KV Ratin：2800kv
LiPo Cells：2-4S
No-load Current(A)：6.1A
O.D.(mm)：42(1.654in）
Length (mm)：67.8(2.669in)
Shaft Diameter (mm)：5.0(0.197in)
Weight (g)：300g
Front Bearing：D16*D5*T5
Rear Bearing：D11*D5*T5
Timing：20-40 Degrees(Adjustable）
Applications：1/8thOn-road
Item Packing
XeRun 4268SD 2800KV G3 Brushless Motor x 1
Detailed Images
