Tarot Martin Motor Rc Brushless Motor 6S 5008 290KV TL50P08 for RC Quadcopter FPV Multicopter Drone Airplane Accessories
| Part No.: | TL50P08 |
| Manufacturer: | TAROT |
Send to a friend
Features
The Martin Series 5008/290KV Long Endurance Brushless Motor from Tarot is designed and built for long endurance multirotors. Fully CNC machined and crafted, the outer flat table is smooth and unmarked with excellent balance. The rotor is refined with high magnetic material neodymium iron boron, the stator is made of high-strength epoxy resin pressurized and reinforced for protection and high temperature resistance, the high flux outrunner motor is calibrated with special balancing, which improves the vibration problem caused by poor balance of ordinary outrunner motor, and the motor shaft is made of high speed alloy steel.
Product Details
Support lithium battery section: 6S
Paddle mounting diameter: 12mm/15mm
Recommended rotor size: 17-18 inch
Motor peripheral diameter: 55.6 mm
Stator diameter: 50.0 mm
Stator end thickness: 8.0 mm
Number of stator ends: 24N
Number of motor poles: 28P
Speed per Volt: 290RPM/Volt
20V unloaded current: 0.8Amps
Motor weight: 121 Grams
Motor shaft diameter: φ4mm
Motor shaft length: 24.0mm
Motor mounting hole distance: 25mm
Paddle mounting diameter: 12mm/15mm
Recommended rotor size: 17-18 inch
Motor peripheral diameter: 55.6 mm
Stator diameter: 50.0 mm
Stator end thickness: 8.0 mm
Number of stator ends: 24N
Number of motor poles: 28P
Speed per Volt: 290RPM/Volt
20V unloaded current: 0.8Amps
Motor weight: 121 Grams
Motor shaft diameter: φ4mm
Motor shaft length: 24.0mm
Motor mounting hole distance: 25mm
Item Packing
Martin 5008/290KV ×1
M3×8 cup head screws ×4
M3×8 semi-circular head screws ×2
M3×8 cup head screws ×4
M3×8 semi-circular head screws ×2

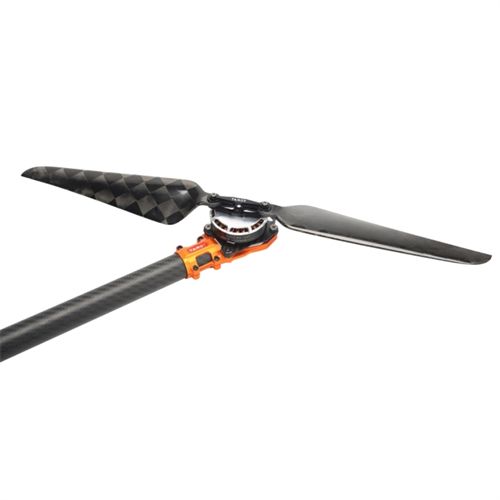

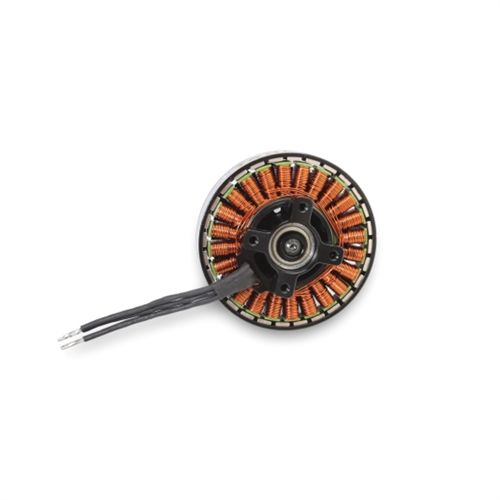

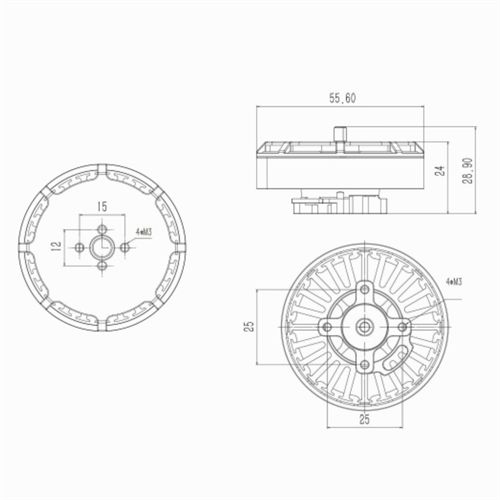

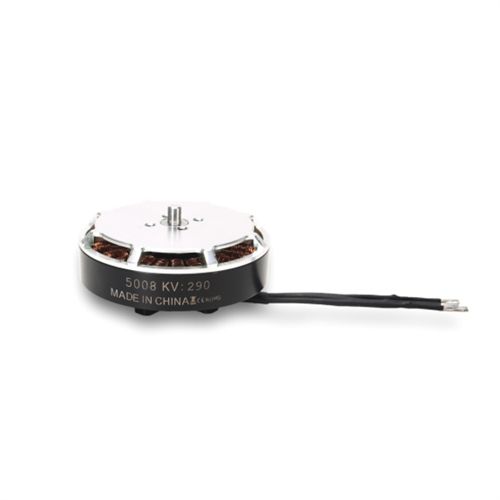

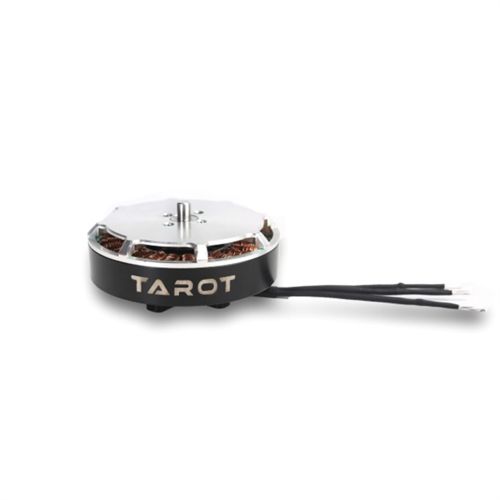

Detailed Images
