IFlight LC Filter Module 3A 5-30V Built-in Reverse Polarity Protection for RC FPV Freestyle Drone Camera AV Transmitter
| Part No.: | IF-LC-3A-5-30V |
| Manufacturer: | IFlight |
Send to a friend
Features
*Properties:
Ideal for sensitive FPV and RC components in a single battery setup.
Both the negative and positive leads are filtered (common mode)
Suitable for setups up to 36V and maximum 2A load.
*Functions:
Reduces DC-DC switcher supply ripple and helps clean loud from a shared battery.
Reduce the effects of interference radiated by the air and noise carried over the power wires.
Help dampen most of the high frequency power supply noise and interference.
Always suppress the noise in the power to your FPV setup (e.g. your VTX and FPV camera).
Product Details
Max 36V input
Maximum current: 2A
Built-in reverse polarity protection
The very low voltage drop
Weight only 0.5g
LC Power Filter-3A
3A LC Filter Specs:
Max 30V input
Maximum current: 3A
Built-in reverse polarity protection
The very low voltage drop
Dimension: 16 * 6 * 3mm
Weight only 0.6g
Properties:
Ideal for sensitive FPV and RC components in a single battery setup.
Both the negative and positive leads are filtered (common mode)
Suitable for setups up to 30V and maximum 3A load.
4pcs LC Filter Module 2A 3A 5-30V Built-in Reverse Polarity Protection Reduce the effect of radiated interference for FPV Drone
Functions:
Reduces DC-DC switcher supply ripple and helps clean loud from a shared battery.
Reduce the effects of interference radiated by the air and noise carried over the power wires.
Help dampen most of the high frequency power supply noise and interference.
Always suppress the noise in the power to your FPV setup (e.g. your VTX and FPV camera).
Maximum current: 2A
Built-in reverse polarity protection
The very low voltage drop
Weight only 0.5g
LC Power Filter-3A
3A LC Filter Specs:
Max 30V input
Maximum current: 3A
Built-in reverse polarity protection
The very low voltage drop
Dimension: 16 * 6 * 3mm
Weight only 0.6g
Properties:
Ideal for sensitive FPV and RC components in a single battery setup.
Both the negative and positive leads are filtered (common mode)
Suitable for setups up to 30V and maximum 3A load.
4pcs LC Filter Module 2A 3A 5-30V Built-in Reverse Polarity Protection Reduce the effect of radiated interference for FPV Drone
Functions:
Reduces DC-DC switcher supply ripple and helps clean loud from a shared battery.
Reduce the effects of interference radiated by the air and noise carried over the power wires.
Help dampen most of the high frequency power supply noise and interference.
Always suppress the noise in the power to your FPV setup (e.g. your VTX and FPV camera).
Item Packing
1×LC-3A-Filte

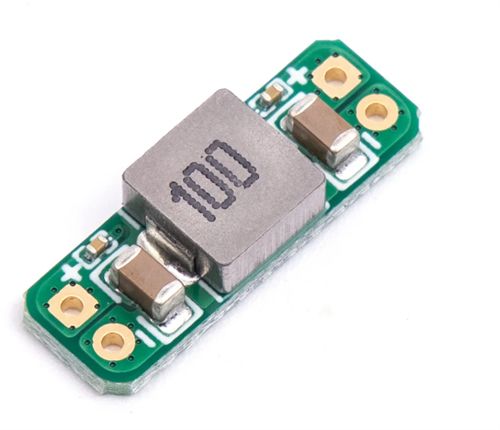

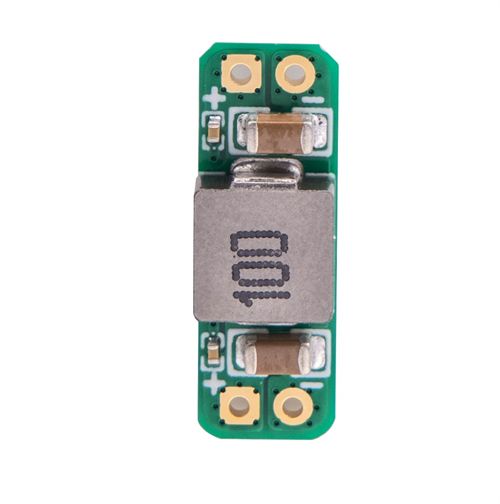

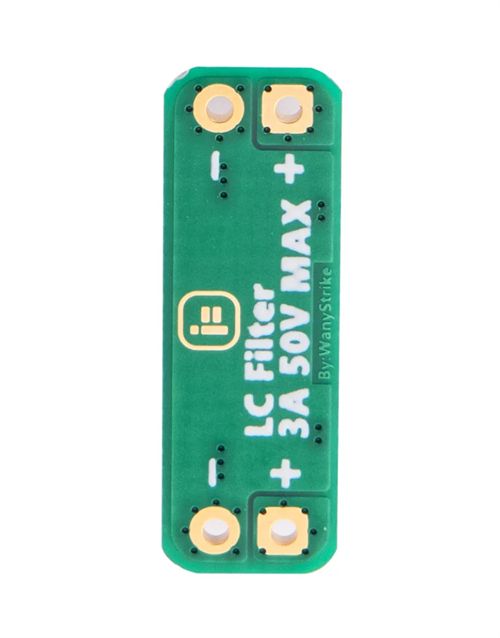

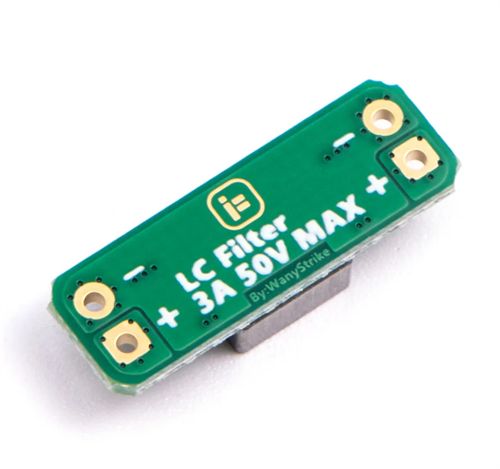

Detailed Images
