GIM6010-8 micro DC brushless geared motor for exoskeleton mechanical dogs and robot joint drive motors
| Part No.: | GIM6010-8 |
| Manufacturer: | Feixiang |
Send to a friend
Features
*Rated torque 5N. m @ 24V
*7ms rapid response
*Gear accuracy level 5
*1: 8 reduction ratio
*Dual coding/flange shell/output shaft/brake can be customized
*Dual temperature monitoring of motor internal and drive board
*All exterior components are machined, lightweight and aesthetically pleasing
*True three ring drive, newly upgraded current loop
*7ms rapid response
*Gear accuracy level 5
*1: 8 reduction ratio
*Dual coding/flange shell/output shaft/brake can be customized
*Dual temperature monitoring of motor internal and drive board
*All exterior components are machined, lightweight and aesthetically pleasing
*True three ring drive, newly upgraded current loop
Product Details
Weight: 388g+3g
Polar logarithm: 14 pairs
Number of phases: 3 phases
Drive mode: FOC
Reduction ratio: 8:1
Polar logarithm: 14 pairs
Number of phases: 3 phases
Drive mode: FOC
Reduction ratio: 8:1
Item Packing
1×GIM6010-8 micro DC brushless geared motor(Motor+Reduction)

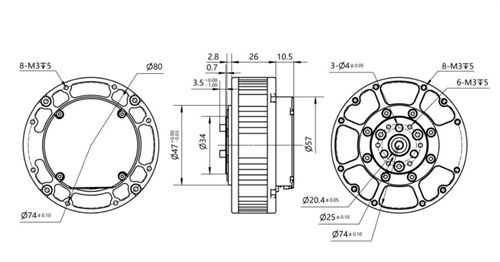

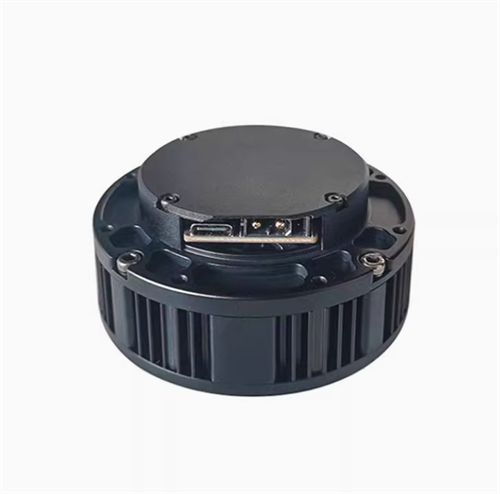

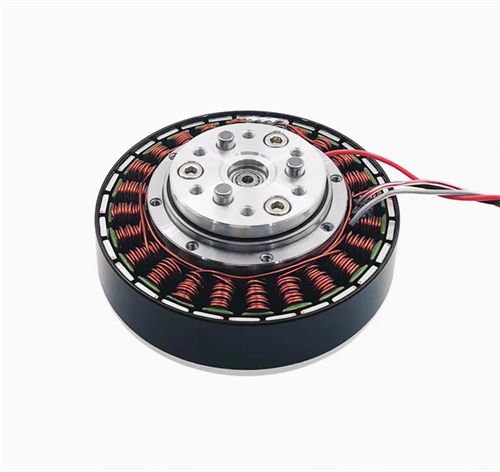

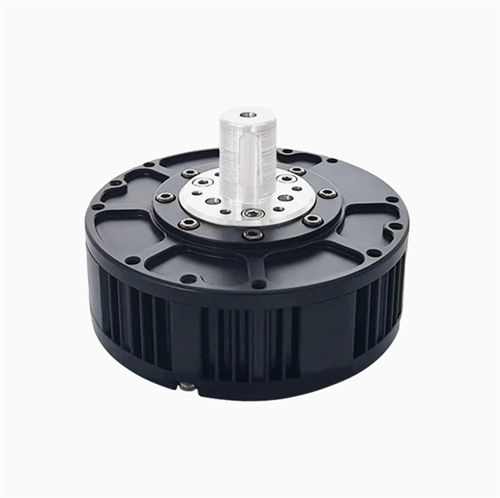

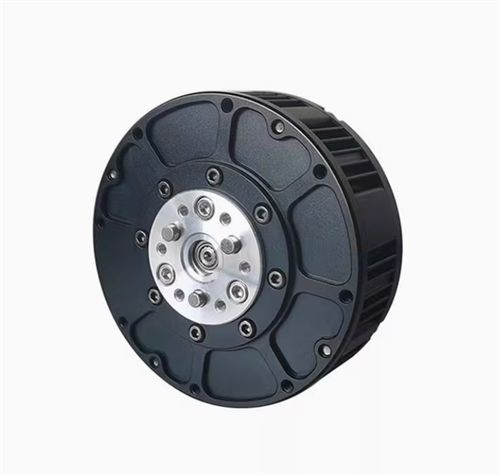

Detailed Images
