Axisflying Dual 5.8G 150MM Antennas SMA Internal Thread with Inner Pin for FPV Accessories
| Part No.: | AX-5.8G-D150 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Axisflying Dual 5.8G 150MM Antennas SMA Internal Thread with Inner Pin for FPV Accessories
Product Details
Model：Dual 5.8G 150MM
Interface：SMA Internal Thread with Inner Pin
Frequency Range：5.5GHZ-6GHZ
Maximum Gain：4.75dBi（5900MHz）
Minimum Gain：3.28dBi（5500MHz）
Highest VSWR：1.59（5500MHz）
Lowest VSWR：1.11（5900MHz）
Highest Radiation Efficiency：91%（5900MHz）
Lowest Radiation Efficiency：69%（5500MHz/5600MHZ）
Polarization：Right-Hand Circular Polarization（RHCP）
Interface：SMA Internal Thread with Inner Pin
Frequency Range：5.5GHZ-6GHZ
Maximum Gain：4.75dBi（5900MHz）
Minimum Gain：3.28dBi（5500MHz）
Highest VSWR：1.59（5500MHz）
Lowest VSWR：1.11（5900MHz）
Highest Radiation Efficiency：91%（5900MHz）
Lowest Radiation Efficiency：69%（5500MHz/5600MHZ）
Polarization：Right-Hand Circular Polarization（RHCP）
Item Packing
Axisflying Dual 5.8G 150MM Antenna x1

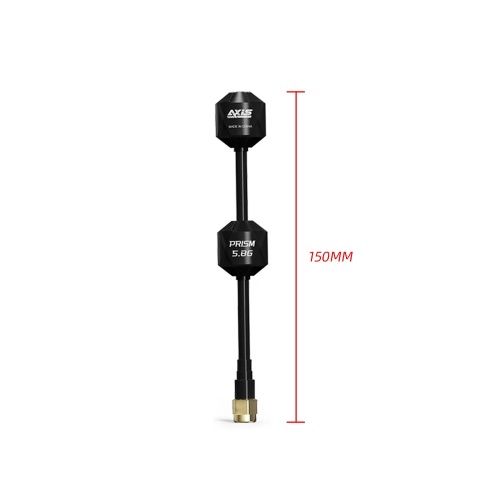

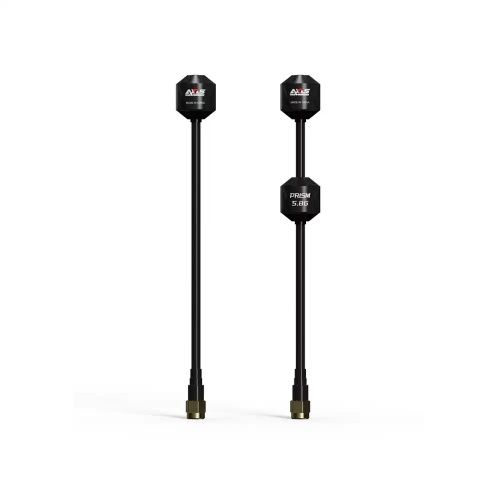

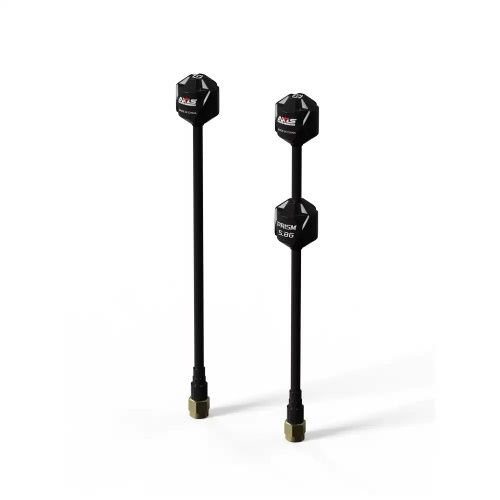

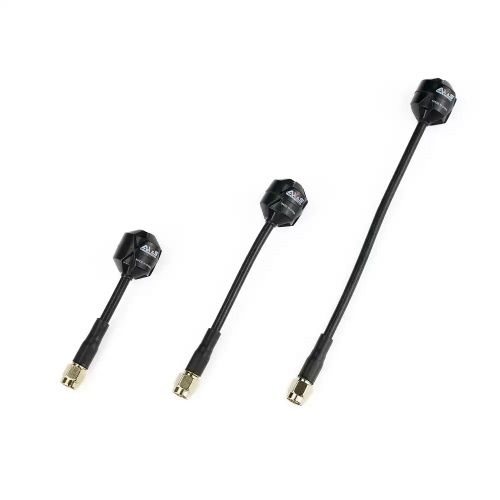

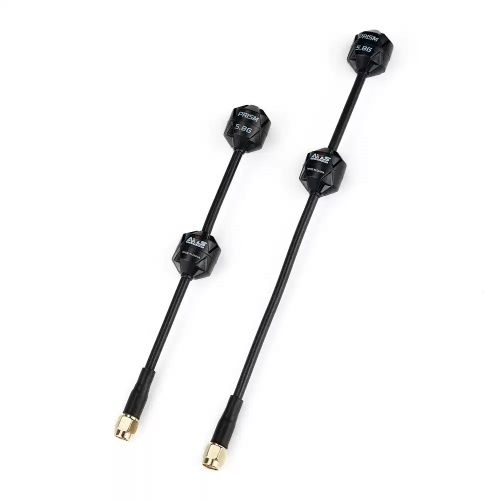

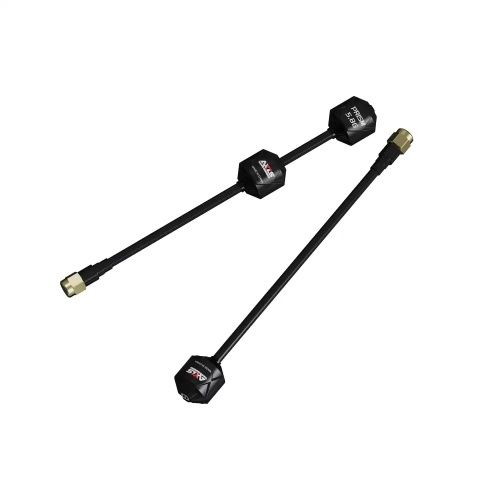

Detailed Images
