MINIWARE TS21-KU Precision Soldering Iron Digital Display 100W Max High Power Welding Pen Repair Kits
| Part No.: | TS21-KU |
| Manufacturer: | Feixiang |
Send to a friend
Features
100W maximum power, melts solder in just 3 seconds Compatible with PD protocol, supports DC power and LIPO battery Integrated light at the tip for easy soldering in low-light environments Built-in accelerometer for automatic sleep mode to prevent dry burning Multi-language display: Chinese, English, Russian, German Anti-slip heat-shrink tube, resistant to corrosion and wear, easy to install
Product Details
Model：TS21-KU
Interface：USB Type-C (DC power requires an adapter)
Power Supply：USB Type-C (Compatible with PD protocol)；DC 9-24V
Working Voltage And Power：PD 9-20V，18-100W DC 9-24V，36-60W
Temperature Control Range：100-450°C
Heating Time（30℃ to 300℃）：100W：3S、60W：3S、40W：4S、27W：5S、18W：6S
Temperature Stability： ±3%
Ground Resistance：2Ω
Controller Size：φ14*109mm
Tip Size：80.5mm
Weight (Controller+Tip)：32g
Tip Types：Compatible with 210 series tips
Other Functions：Boost mode, Rapid heating, High-heat mode, Sleep mode,
Firmware upgrade, Built-in lighting, Power protection,
Real-time tip monitoring
Interface：USB Type-C (DC power requires an adapter)
Power Supply：USB Type-C (Compatible with PD protocol)；DC 9-24V
Working Voltage And Power：PD 9-20V，18-100W DC 9-24V，36-60W
Temperature Control Range：100-450°C
Heating Time（30℃ to 300℃）：100W：3S、60W：3S、40W：4S、27W：5S、18W：6S
Temperature Stability： ±3%
Ground Resistance：2Ω
Controller Size：φ14*109mm
Tip Size：80.5mm
Weight (Controller+Tip)：32g
Tip Types：Compatible with 210 series tips
Other Functions：Boost mode, Rapid heating, High-heat mode, Sleep mode,
Firmware upgrade, Built-in lighting, Power protection,
Real-time tip monitoring

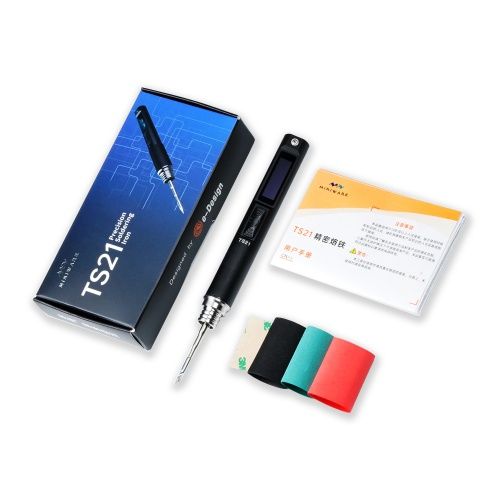

Item Packing
TS21 controller x1
Soldering tip（21-KU）x1
Heat shrink tube x3
User Manual x1
Soldering tip（21-KU）x1
Heat shrink tube x3
User Manual x1

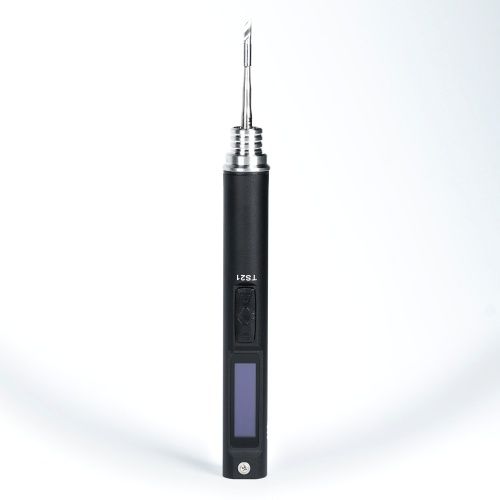

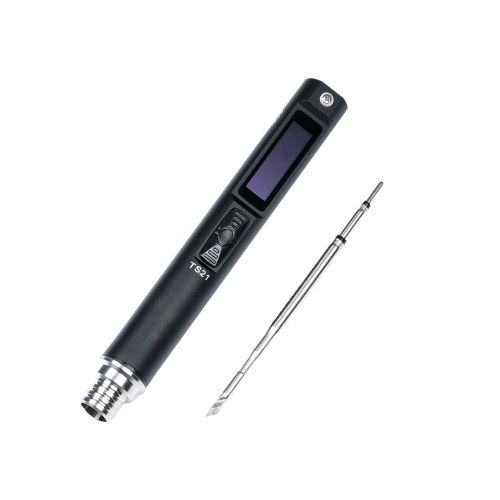

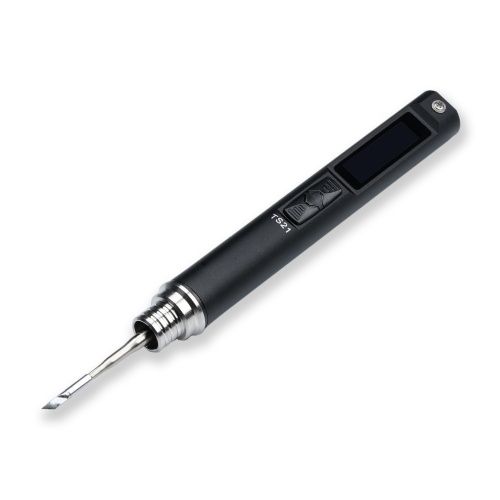

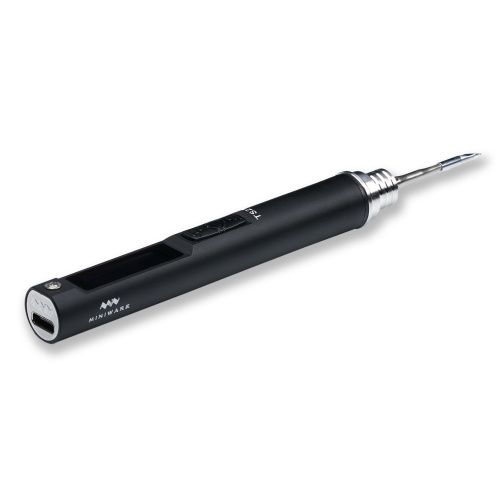

Detailed Images
