Hobbywing Accessories > Product details

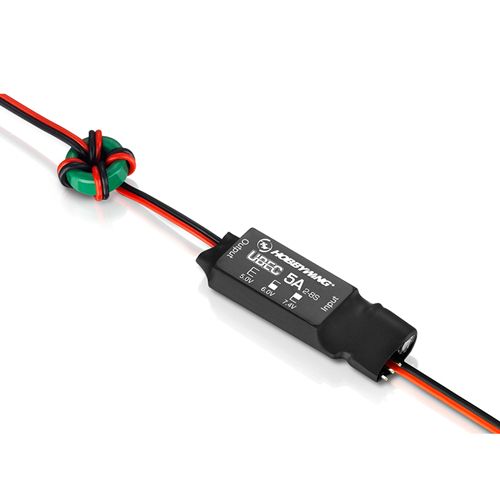

Hobbywing 5A UBEC DC Voltage Regulator 2-8S Lipo Output 5.0V 6.0V 7.4V Adjustable For Fixed Wing Aircraft Parts
| Part No.: | HW-UBEC-5A |
| Manufacturer: | Hobbywing |
Send to a friend
Features
The UBEC is an external DC voltage regulator. It works in switch-mode. It can obtain the DC voltage suitable for the receiver and other devices from a 2-8s LiPo battery pack and stably provide 5A output current. The UBEC can easily supply power to various equipment on the remote control model and is suitable for fixed wing aircraft.
• It has metal shield to help heat dissipation and reduce electromagnetic interference;
• High efficiency DC-DC regulator chip for transfer efficiency of over 90%.

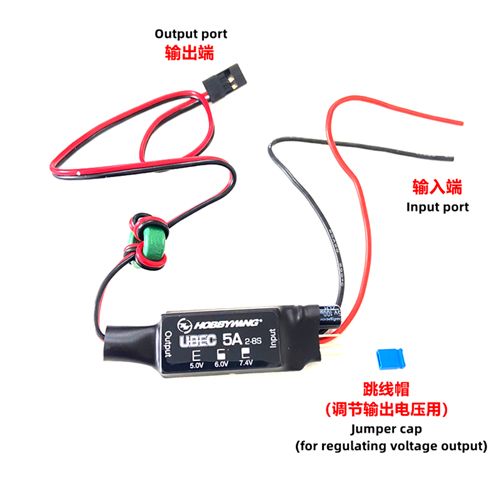

• Adjustable output voltage (5.0V/6.0V/7.4V) applicable for servos with different voltages.
• Multiple protections including over-current, (output end) short circuit and overheat.
• LED indicator for indicating the work status of the UBEC.
Product Details
Model: UBEC-5A
Main Input Voltage: 2-8S LiPo
Output Voltage: 5.0V /6.0V /7.4V
Output Amperage: Continuous Current: 5A, Peak Current: 15A
Weight: 21g
Size: 50*17*10mm
Main Input Voltage: 2-8S LiPo
Output Voltage: 5.0V /6.0V /7.4V
Output Amperage: Continuous Current: 5A, Peak Current: 15A
Weight: 21g
Size: 50*17*10mm
Item Packing
Hobbywing 5A UBEC x 1
Detailed Images
