Hobbywing Waterproof UBEC 10A Voltage Regulator Module 2-6S 6V/7.4V/8.4V Adjustable For RC Car Parts
| Part No.: | UBEC-10A-CAR |
| Manufacturer: | Hobbywing |
Send to a friend
Features
The UBEC uses an efficient DC-DC regulator chip with a conversion efficiency of more than 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. UBEC output voltage is adjustable in three stages (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use for a wide range of servos and electrical equipment such as lights, winches, wipers and etc. At the same time, the UBEC is equipped with overcurrent protection, output short-circuit protection, overheat protection, and IP67 waterproof dust design, and can be widely used on crawlers, trucks, and other electric models as well.
1. It adopted the advanced DC-DC regulator chip with conversion efficiency exceeds 90%;
2. 4 options for the output voltage, applicable for all kinds of receivers/gyros/servos, etc.
3. It owns BEC shoot-through protection, which prevent the input voltage from directly flowing to the output end and causing damages to receivers, servos and other electronic devices;
4. It featured other protections like over-current protection, short-circuit protection (at the output end) and thermal protection make the use more safe and reliable;
5 .Two cables are connected in parallel at the output end of the UBEC, allow larger current to flow into the receiver.
6. It has one status LED, which lights up when the output voltage is within the normal range;
7. The external switch can turn on/off the UBEC easily;
8. Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
Product Details
Input voltage：2-6s lithium batteries
Output voltage：6.0 / 7.4 / 8.4 V (3 options adjustable)
Output current：Continuous 10A，Instantaneous 15A
Measurement：45*20*16.2mm
Weight ：34g（including wires）
Item Packing

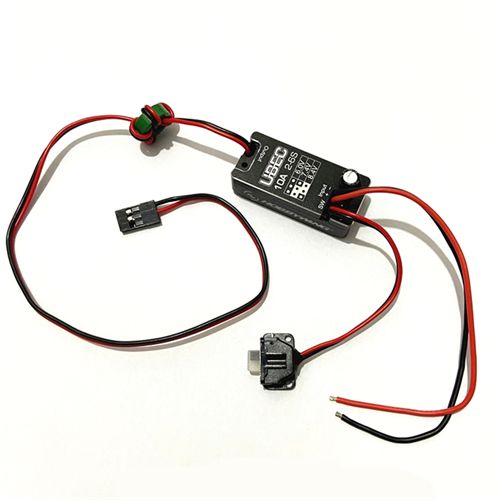

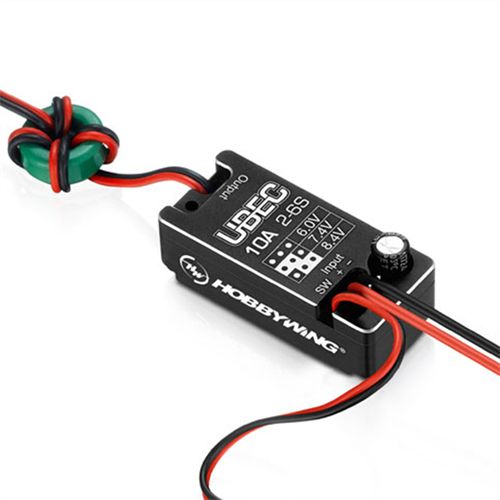

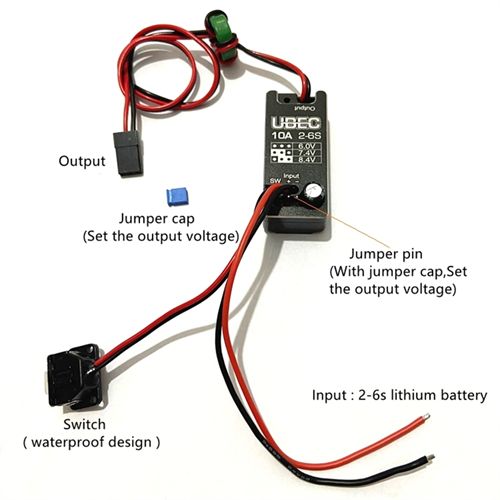

Detailed Images
