New Matek Systems M10Q-5883 GNSS Ublox SAM-M10Q Magnetic Compass Module QMC5883L For RC FPV Racing Drone
| Part No.: | M10Q-5883 |
| Manufacturer: | Matek |
Send to a friend
Features
* M10Q-5883 uses multi-constellation GNSS module powered by u-blox SAM-M10Q-00B.
* The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
* The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.
* More details about the SAM-M10Q, pls check out u-blox SAM-M10Q page
* The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.
* The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.
* More details about the SAM-M10Q, pls check out u-blox SAM-M10Q page
Product Details
* GNSS u-blox SAM-M10Q-00B (GPS, GLONASS, Galileo and BeiDou)
* Magnetic Compass QMC5883L
* Patch antenna 15*15*4mm
* Input voltage range: 4~9V (5V pad/pin)
* Power consumption: 13mA
* UART baudrate: 9600 default
* Operating Temperatures: -20~80 °C
* UART(TX, RX) interface for GNSS SAM-M10Q-00B
* I2C(DA, CL) interface for Compass QMC5883L
* JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
* GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
* Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
* 20mm*20mm*12.4mm
* 8g
* M10Q-5883_step.zip
* Magnetic Compass QMC5883L
* Patch antenna 15*15*4mm
* Input voltage range: 4~9V (5V pad/pin)
* Power consumption: 13mA
* UART baudrate: 9600 default
* Operating Temperatures: -20~80 °C
* UART(TX, RX) interface for GNSS SAM-M10Q-00B
* I2C(DA, CL) interface for Compass QMC5883L
* JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
* GNSS PPS LED, Green. (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)
* Protocol: UBX(u-blox) 5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz
* 20mm*20mm*12.4mm
* 8g
* M10Q-5883_step.zip
Item Packing
1x M10Q-5883
1x JST-GH-6P to JST-GH-6P 20cm silicon wire
1x JST-GH-6P to JST-GH-6P 20cm silicon wire

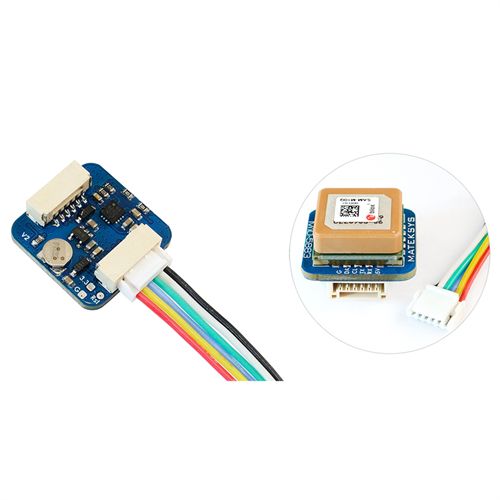

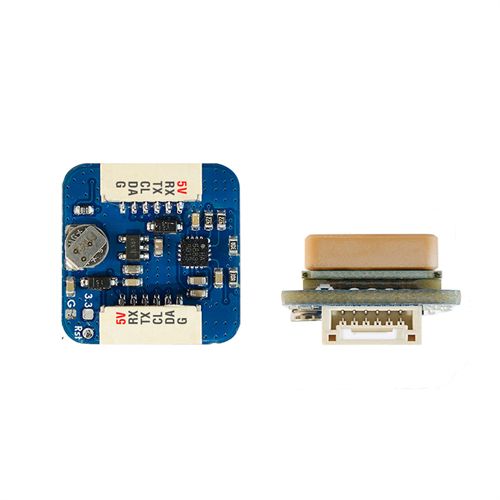

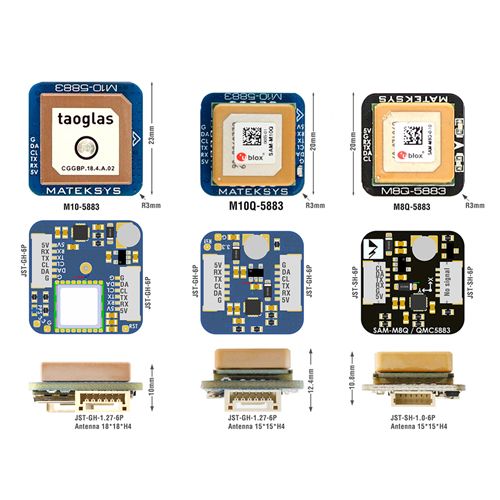

Detailed Images
