Makeflyeasy POS1 Navigation Module M8N High Precision Positioning and IST8310 Magnetic Compass
| Part No.: | MFE-POS1 |
| Manufacturer: | Feixiang |
Send to a friend
Features
With a built-in Ublox NEO-M8N module and IST8310 magnetic compass, the POS1 features high sensitivity, low power consumption and small size.
Product Details
Model： POS1
GPS：U-blox M8N
magnetic compass：IST8310
Positioning accuracy：2.5m
Update frequency：10hz(Max)
Cold start：26s
Hot start：1s
Tracking Sensitivity：-167dBm
Magnetic Compass Accuracy：1-2°
Magnetic Compass Resolution：3milli-gauss
Working Voltage：5V
Working Temperature：(-10℃~70℃)
Dimension：Module: 60×60×17(mm) Line: 300mm
Weight：54g
GPS：U-blox M8N
magnetic compass：IST8310
Positioning accuracy：2.5m
Update frequency：10hz(Max)
Cold start：26s
Hot start：1s
Tracking Sensitivity：-167dBm
Magnetic Compass Accuracy：1-2°
Magnetic Compass Resolution：3milli-gauss
Working Voltage：5V
Working Temperature：(-10℃~70℃)
Dimension：Module: 60×60×17(mm) Line: 300mm
Weight：54g
Item Packing
Makeflyeasy POS1 x1

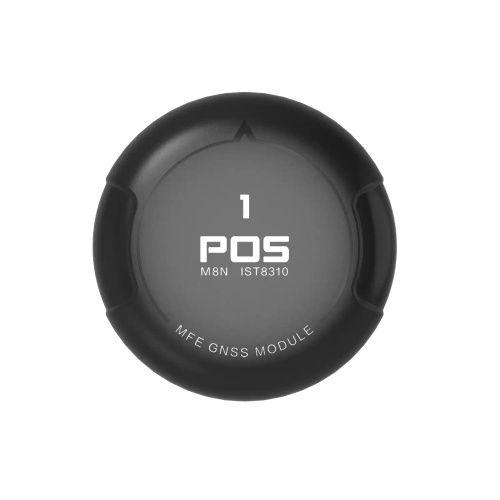

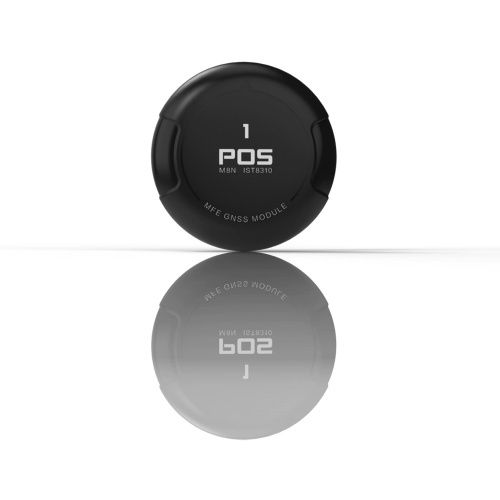

Detailed Images
