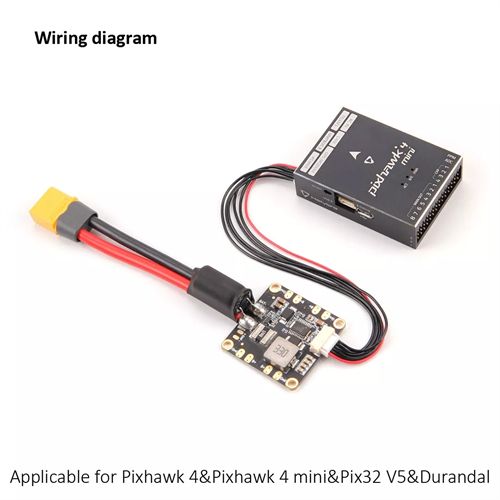

Holybro PM06 V2-14S Power Module Applicable for Pixhawk 4 Pixhawk 4 Mini Durandal Pix32 V5 Flight Controller
| Part No.: | HL-PM06-14S |
| Manufacturer: | Holybro |
Send to a friend
Features
Holybro PM06 V2-14S Power Module Applicable for Pixhawk 4 Pixhawk 4 Mini Durandal Pix32 V5 Flight Controller
Product Details
Input voltage: 2S-14S
Power Module rated current: 60A
Power Module max current: 120A (<60 sec)
UBEC output: DC 5.1V~5.3V
UBEC output current: 3A Max (Note: To ensure proper heat dissipation, UBEC output current needs to be limited to <2A when using 14S battery.)
Voltage Divider: 18.182
Amperes per Volt: 36.364
Mechanical Specification:
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 24g
Power Module rated current: 60A
Power Module max current: 120A (<60 sec)
UBEC output: DC 5.1V~5.3V
UBEC output current: 3A Max (Note: To ensure proper heat dissipation, UBEC output current needs to be limited to <2A when using 14S battery.)
Voltage Divider: 18.182
Amperes per Volt: 36.364
Mechanical Specification:
Dimensions: 35x35x5mm
Mounting hole: 30.5mm*30.5mm
Weight: 24g

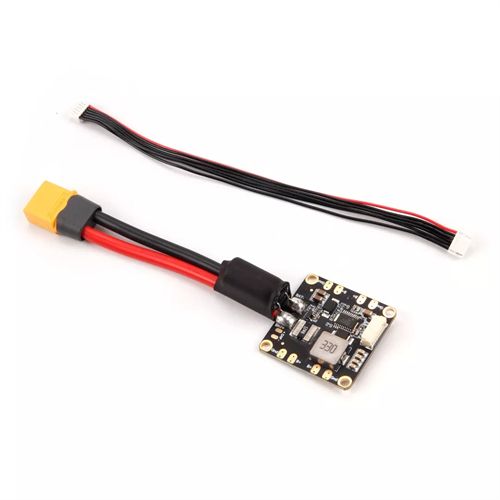

Item Packing
1x Power Module
1x 80mm XT60 connector wire
1x Electrolytic capacitor: 220uF 63V
1x JST GH 6pin cable
1x 80mm XT60 connector wire
1x Electrolytic capacitor: 220uF 63V
1x JST GH 6pin cable

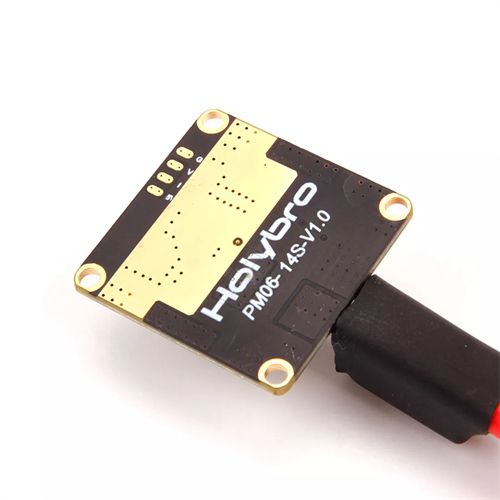

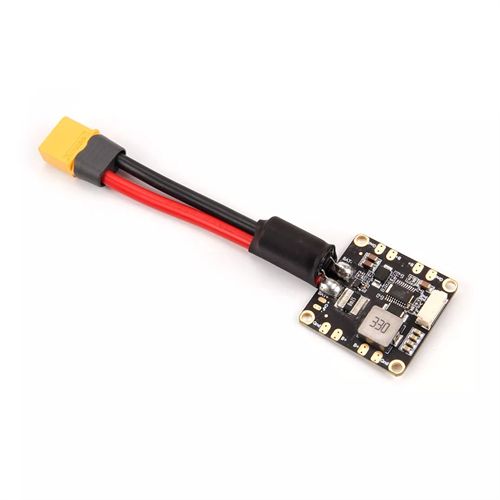

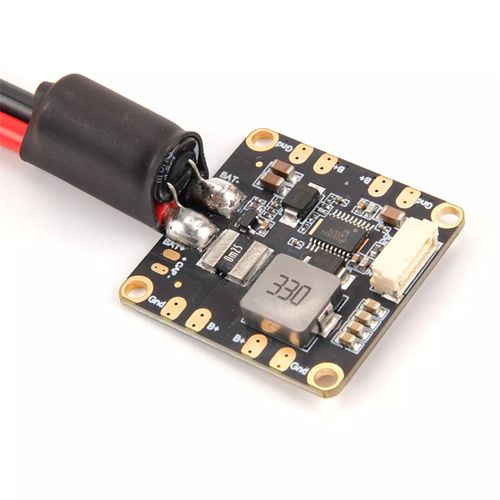

Detailed Images
