DIGITAL AIRSPEED SENSOR AS-DLVR-I2C DLVR-L10D for ArduPilot RC Multirotor Airplane VOTL UAV RC Model DIY Parts

DIGITAL AIRSPEED SENSOR AS-DLVR-I2C DLVR-L10D for ArduPilot RC Multirotor Airplane VOTL UAV RC Model DIY Parts
Part No.: DLVR-L10D
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

DIGITAL AIRSPEED SENSOR AS-DLVR-I2C DLVR-L10D for ArduPilot RC Multirotor Airplane VOTL UAV RC Model DIY Parts

Please confirm the use of flight control when purchasing. You can choose PIXHAWK and PX4, Hex Pixhawk Cube, Pixhawk CUAV V5 V7, Holybro Pixhawk 6C, MATEK H743 flight control

Product Details

* All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications

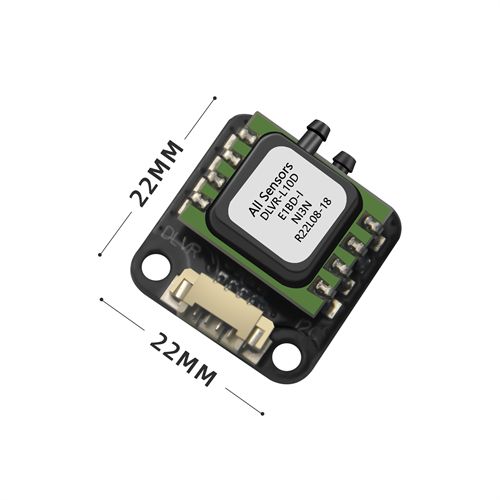

* Sensor: All sensors DLVR-L10D,  Industrial temperature range
DLVR-L10D Sensor datasheet, pls visit  www.allsensors.com
* Interface: I2C (SCL & SDA)
* Sensor I2C address: 0x28
* Pressure Ranges: 2500Pa
* Maximum Pressure: 75kPa
* Operating Temperature: -25°C ~ 85°C
* Board Supply voltage: 4~5.5V DC
* Working current: 5mA
* Red LED:  3.3V power indicator
* JST-GH sequence: 5V, SCL, SDA, GND
* Weight: 3.5g (sensor board)

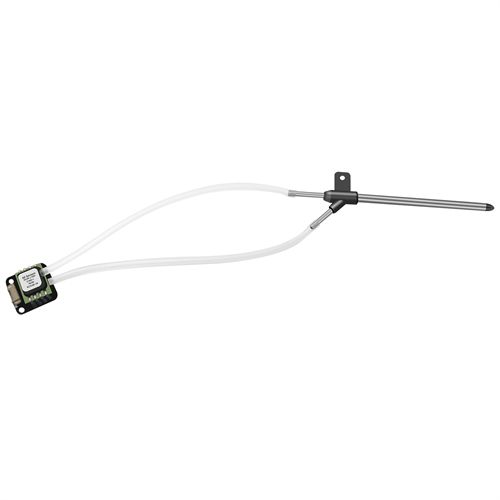

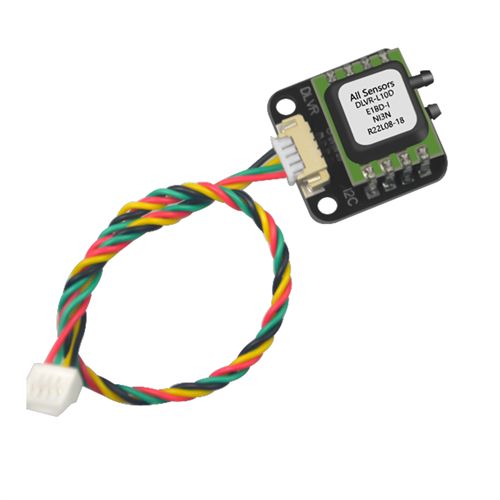

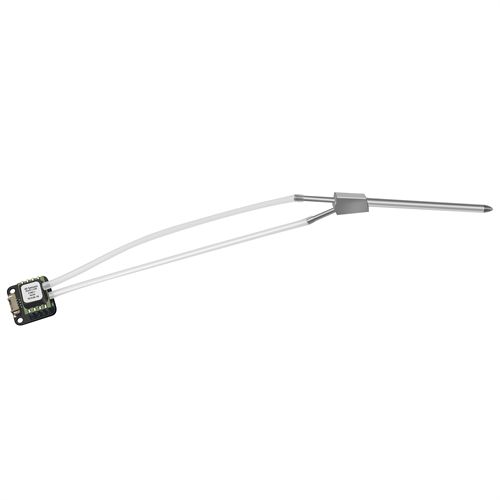

Including
* 1x AS-DLVR-I2C Sensor Board.
* 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
* Pitot Tube.
* Clear silicon tubing  40cm

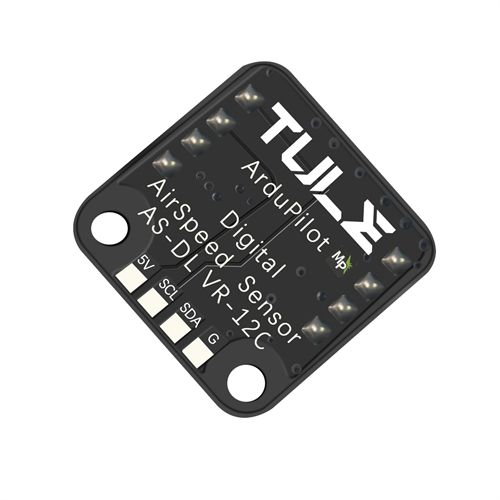

Wiring
* 5V to FC 4~5.5V
* SCL to FC I2C_SCL
* SDA to FC I2C_SDA
* G to FC GND

Parameters
* ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)

Item Packing

DIGITAL AIRSPEED SENSOR DLVR-L10D x 1

Detailed Images
