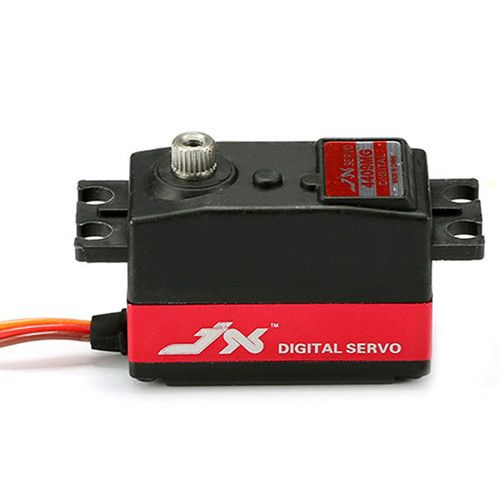

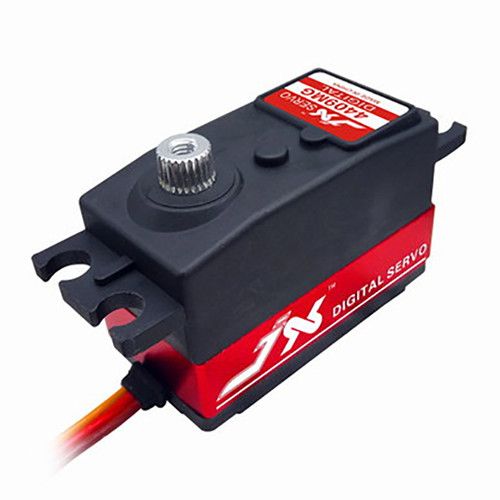

JX Servo PDI-4409MG 9kg Large Torque 180 Degree Digital Servo
| Part No.: | JX4409MG |
| Manufacturer: | JX |
Send to a friend
Features
High performance digital standard servo

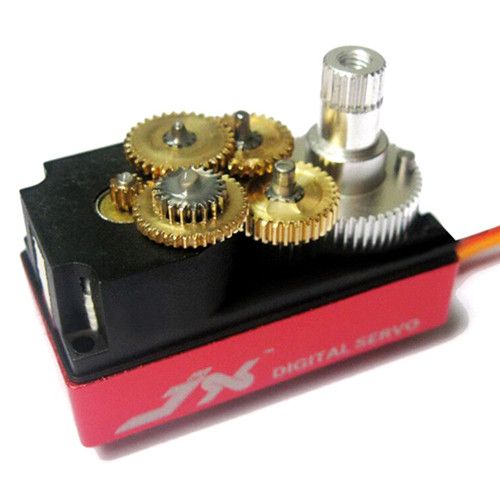

High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shel
Dual ball bearings
Pulse Width: 900-2100us
Angle: 120 Degree (Suitable for Remote Controller)
Maximum Pulse Width: 500-2500us
Maximum Angle 180 Degree (Suitable for Control Board)
High-precision Taiwan-made aluminium gears with hard anodizing
CNC aluminium middle Shel
Dual ball bearings
Pulse Width: 900-2100us
Angle: 120 Degree (Suitable for Remote Controller)
Maximum Pulse Width: 500-2500us
Maximum Angle 180 Degree (Suitable for Control Board)
Product Details
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 7.8 kg/cm
Stall Torque (6V): 9.2 kg/cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 7.8 kg/cm
Stall Torque (6V): 9.2 kg/cm
Dimensions: 40.5X20.3X28mm
Weight: 44.5 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

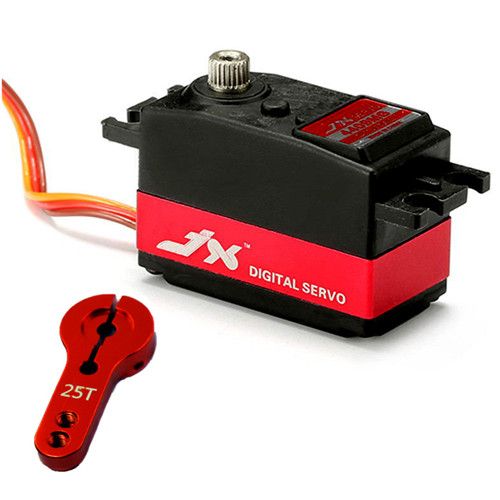

Item Packing
JX4409MG Servo x 1

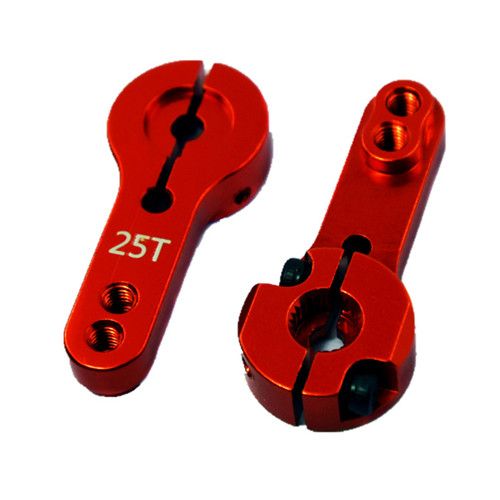

25T Metal arm x 1
25T Metal arm x 1
Detailed Images
