GXservo GX3225MG 25KG High Torque Digital Servo steering gear robotic steering gear for RC Car DIY Robotic

GXservo GX3225MG 25KG High Torque Digital Servo steering gear robotic steering gear for RC Car DIY Robotic
Part No.: GX3225MG
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Under the static working current, Shengyu servo is energized, but there is no movement.
* In the case of no-load current operation, Shengyu servos move under no-load conditions.
*The current of Shengyu servo when outputting the maximum torque under the condition of locked rotor current
*The baud rate can be modified to 500K, 250K, 128000, 115200, 76800, 57600, 38400
* The maximum number of available bus nodes depends on the power supply capacity and the allowable current specifications of the cable.
* The stall torque is the maximum stall torque of the steering gear. The actual working torque is selected from 1 / 3- -1/5 of this value as suitable for the operating point.

Product Details

Control system: PWM control system
Working angle: 90° + 5”
Temperature range: -20 degrees Celsius to +60 degrees Celsius
Direction: counterclockwise pulse 1500 To 2500 USEC
Voltage range: 6.0V ~ 7.4V
Driving method: Field effect quality tube driving
Test voltage: AT 6.0V / AT 7.4V
Motor type: Iron core strong magnetic carbon brush motor 1723
Torque: 22KG.CM/25KG.CM
Potentiometer: Indirect transmission
Speed: 0.18S / 60 degrees, 0.16S / 60 degrees
Amplifier Type: Digital
No-load current: 300MA / 450MA
Size: 40 * 20 * 39MM
Load current: 2300MA / 2900MA
Weight: 60G (without accessories)
Dead band width: 2 microseconds
Ball bearings: double ball bearings
Cycle: >15,000 times
Gear material: imported copper steel material

Item Packing

1×GXservo GX3225MG 25KG High Torque Digital Servo

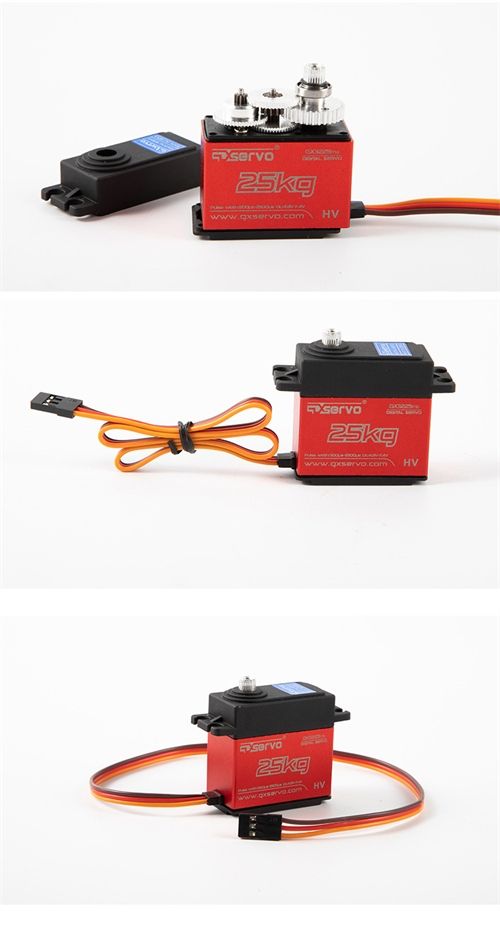

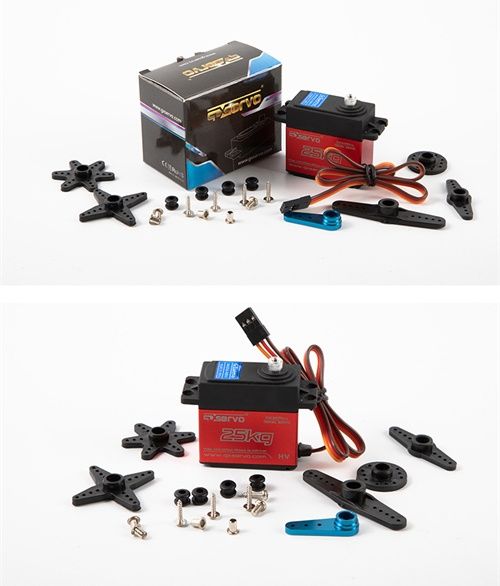

Detailed Images
