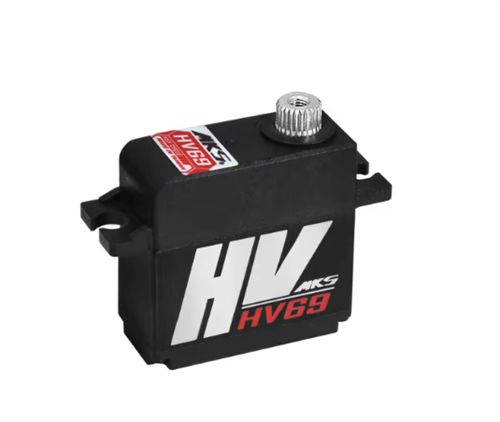

MKS HV69 servo empty cup motor servo metal gear digital servo

MKS HV69 servo empty cup motor servo metal gear digital servo
Part No.: MKS-HV69
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

MKS HV69 servo empty cup motor servo metal gear digital servo

Product Details

Model Number: MKS HV69
Brand Name: FaseLase

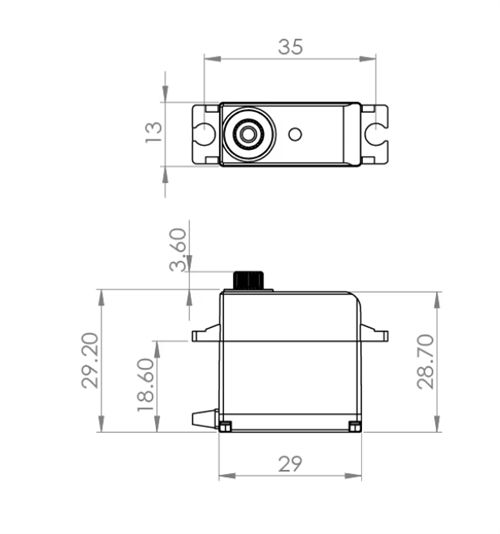

Dimensions: 29 x 13 x 28.7 mm
Weight: 21 g
The torsion (kg - cm) : 6.0 (4.8 V) / 7.5 (6.0 V) / 9.2 (7.4 V) / 10.2 (8.2 V)
Speed: 0.13 0.17 s (4.8 V)/s (6.0 V)/s (7.4 V) / 0.10 0.11 s (8.2 V)
Locked-rotor current (when locked):
Service voltage: 3.8v ~ 8.4v DC Volt (2S Lipo un-regulated)
Working frequency: 1520 ms / 333Hz
Dead zone: 0.001 ms (Default)
Bearing: 2* ball bearing
Gear: aluminum alloy gear
Motor: hollow cup motor

Item Packing

1×MKS HV69 Servo
