YIPIN 45kg Servo Coreless Motor Servo Waterproof IP68 Large Torque Magnetic Induct Steel Helical Gear for RC Car Underwater robot
| Part No.: | YIPIN 45kg |
| Manufacturer: | Feixiang |
Send to a friend
Features
*The shell of yinservo digital steering machine is made of aviation aluminum alloy through CNC precision manufacturing.
*It has steel precision gears and a high-efficiency and long-life brushless motor.
*With waterproof and dust-proof functions, reaching IP68 waterproof grade and can be used in water.
*The servo has the functions of slow start and block rotation protection.
*Supports the function of DIY setting parameters on the computer (requires purchasing a separate USB programming card to set parameters).
*Supports free adjustment of pulse width angle.
*It has steel precision gears and a high-efficiency and long-life brushless motor.
*With waterproof and dust-proof functions, reaching IP68 waterproof grade and can be used in water.
*The servo has the functions of slow start and block rotation protection.
*Supports the function of DIY setting parameters on the computer (requires purchasing a separate USB programming card to set parameters).
*Supports free adjustment of pulse width angle.
Product Details
Control System: Pulse width modulation control, 1520uS/333Hz.
Operating Voltage: 5 - 8.4V.
Temperature: -20°C to +60°C.
PWM Volts: 3.3 - 5V (advised).
Pulse Width Angle: 500 - 2500us; 180° (Support any angle within 357°).
Direction: Anticlockwise (500 - 2500us), opposite rotation is customizable.
Motor: CORELESS MOTOR.
Dead band: 2usec.
Gears Inside: Stiffen Stainless Steel Gears.
Signal: Digital.
Waterproof: IP68.
Bearing: 6BB.
Programmable: Supported.
Net Weight: 100.8g (without accessory).
Size: 40.5×21×50.15mm.
Wire length: JR300mm.
Operating Voltage: 5 - 8.4V.
Temperature: -20°C to +60°C.
PWM Volts: 3.3 - 5V (advised).
Pulse Width Angle: 500 - 2500us; 180° (Support any angle within 357°).
Direction: Anticlockwise (500 - 2500us), opposite rotation is customizable.
Motor: CORELESS MOTOR.
Dead band: 2usec.
Gears Inside: Stiffen Stainless Steel Gears.
Signal: Digital.
Waterproof: IP68.
Bearing: 6BB.
Programmable: Supported.
Net Weight: 100.8g (without accessory).
Size: 40.5×21×50.15mm.
Wire length: JR300mm.

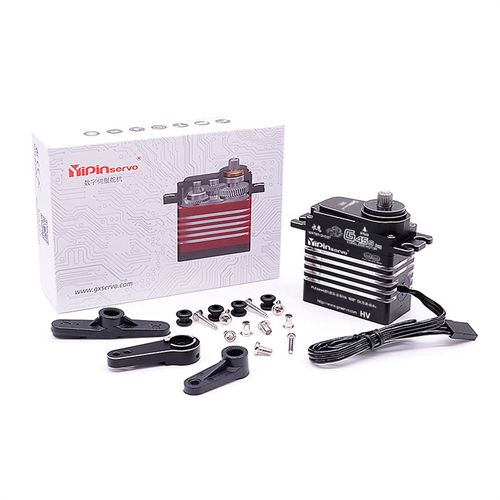

Item Packing
1×YIPIN 45kg Servo

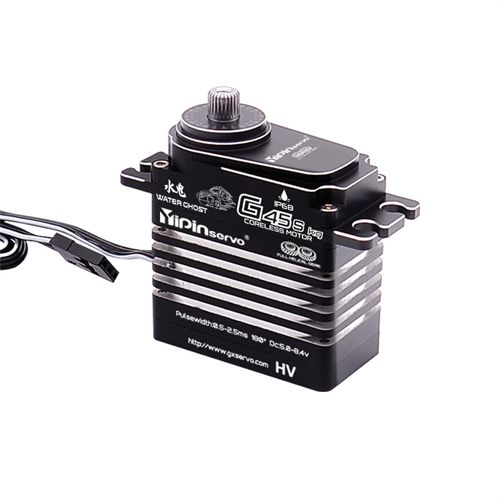

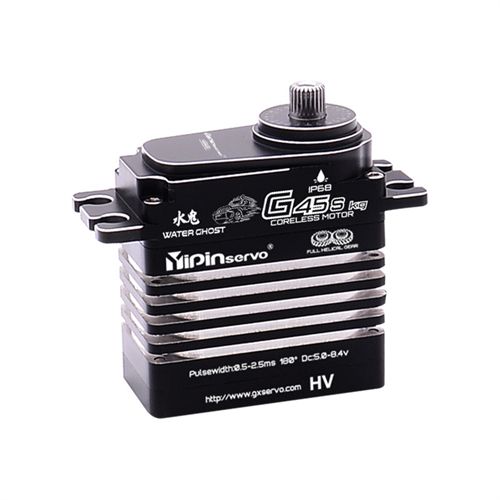

Detailed Images
