Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control Circuit for ST/RSBL Series Serial Bus Servos
| Part No.: | WS-SDB-27577 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control Circuit for ST/RSBL Series Serial Bus Servos
Product Details
Model：Bus Servo Driver HAT (A)
SKU：27577
Weight：82g
Controller：ESP32-WROOM-32
Power supply port：XT60 connector, 5.5×2.5mm DC jack
Power supply：9~25V (the input voltage and the servo voltage must be matched)
Communication interface：UART, USB Type-C port×2
Wireless communication：2.4G WiFi
Mounting hole diameter：3mm
Mounting hole spacing：58×49mm
PCB size：65×57 mm
SKU：27577
Weight：82g
Controller：ESP32-WROOM-32
Power supply port：XT60 connector, 5.5×2.5mm DC jack
Power supply：9~25V (the input voltage and the servo voltage must be matched)
Communication interface：UART, USB Type-C port×2
Wireless communication：2.4G WiFi
Mounting hole diameter：3mm
Mounting hole spacing：58×49mm
PCB size：65×57 mm

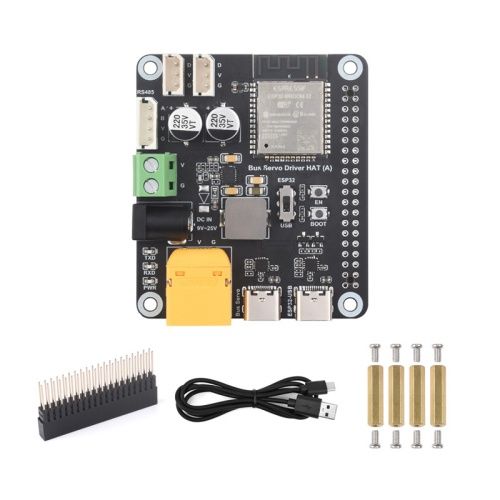

Item Packing
Bus Servo Driver HAT (A) x1
2×20 pin header x1
USB-A to USB-C cable x1
Screws pack x1
2×20 pin header x1
USB-A to USB-C cable x1
Screws pack x1

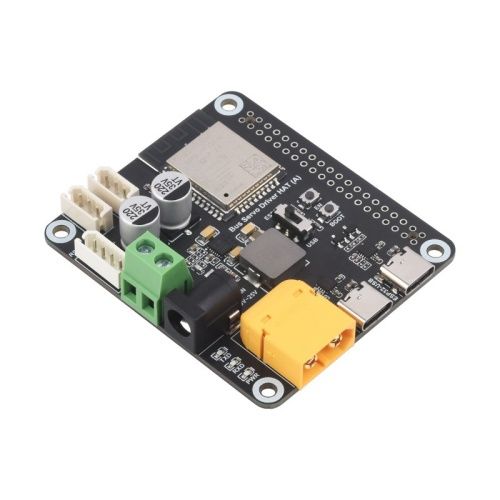

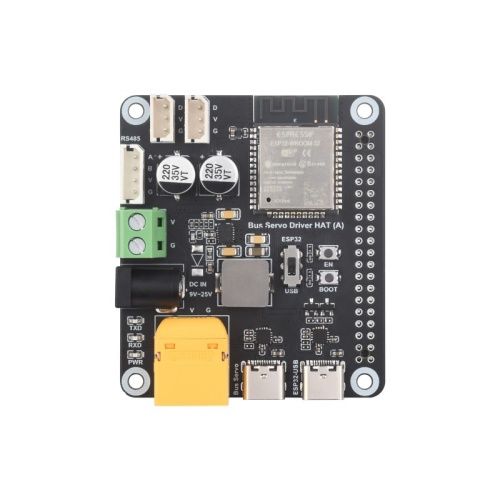

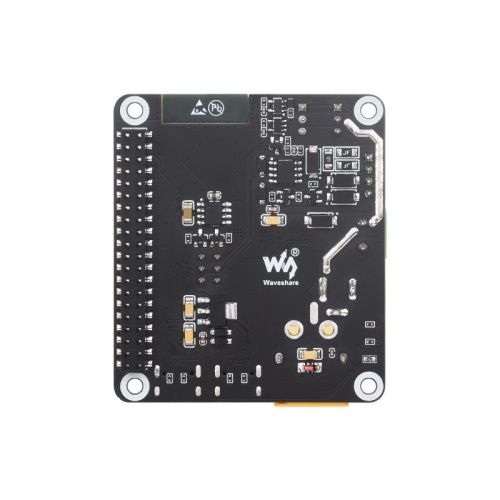

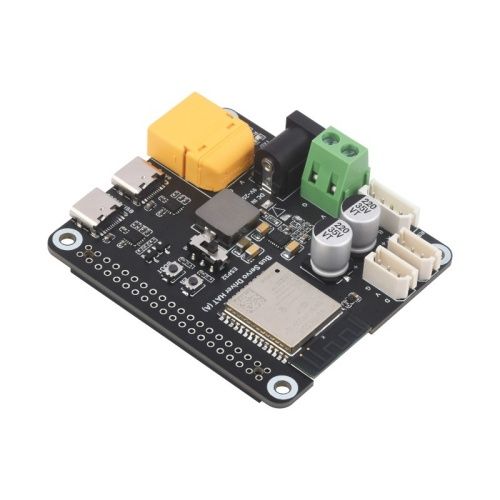

Detailed Images
