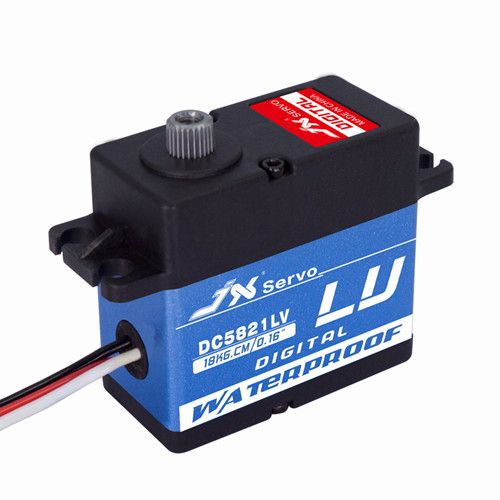

JX servo DC5821LV 20KG Full waterproof digital high quality servo
| Part No.: | DC5821LV |
| Manufacturer: | JX |
Send to a friend
Features
High-performance low-voltage digital core waterproof servo
Taiwan manufactures high-precision aluminum gears for hard anodic oxidation
Taiwan manufactures high-precision aluminum gears for hard anodic oxidation
Product Details
Double ball bearing
New waterproof
Specification:
Article number: DC5821LV
Dead-band: 2μs
working frequency: 1520μs / 330hz
Operating speed (4.8V): 0.18 sec / 60 °
Operating speed (6 V): 0.16 sec / 60 °
Stall torque (4.8 V): 16.5 kg. cm (582.02 oz / in)
Stall torque (6 V): 21.8 kg. cm (768.97 oz / in)
Dimensions: 40.5X20.2X40mm / 1.59X0.80X49 in
Weight: 58g (2.05oz)
Steering angle: 0-120 degrees
Connection cable length: JR 260mm
Stock: 2BB
Usage: For RC models
New waterproof
Specification:
Article number: DC5821LV
Dead-band: 2μs
working frequency: 1520μs / 330hz
Operating speed (4.8V): 0.18 sec / 60 °
Operating speed (6 V): 0.16 sec / 60 °
Stall torque (4.8 V): 16.5 kg. cm (582.02 oz / in)
Stall torque (6 V): 21.8 kg. cm (768.97 oz / in)
Dimensions: 40.5X20.2X40mm / 1.59X0.80X49 in
Weight: 58g (2.05oz)
Steering angle: 0-120 degrees
Connection cable length: JR 260mm
Stock: 2BB
Usage: For RC models

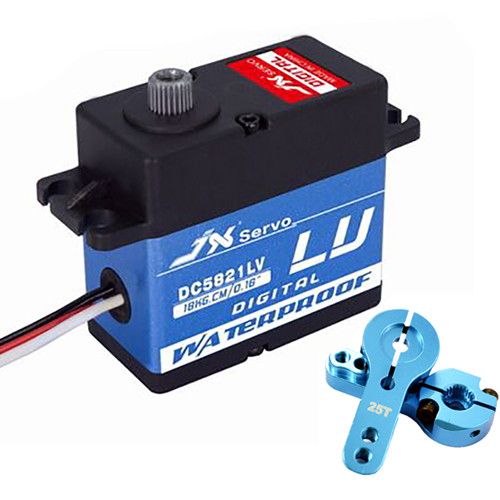

Item Packing
DC5821LV servo x 1
25T Arm x 1
25T Arm x 1
Detailed Images
