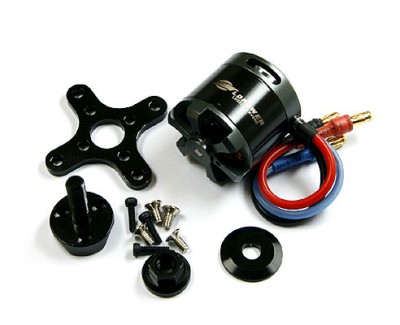

LD-POWER 2212M 900KV Outrunner Brushless Motor (Multi-rotor Version)

Part No.:	BM-LD221290M
Manufacturer:	Feixiang

Send to a friend

Features

-LD-POWER 2212 900KV Outrunner Brushless Motor (Multi-rotor Version)

Product Details

-Model:LD2212M
-Motor Diameter: 28mm
-Motor Length: 30mm
-Stator Diameter: 22mm
-Stator Length: 12mm
-Shaft :3.175mm
-Weight: 62.5
-Batteries:3-4 Cells
-No Load Current: 0.5A

LD2212M KV900
Voltage(V)	Propeller (inch)	Throttle	Current(A)	Thrust(g)	RPM (RPM/Min)	Power(W)
11.1	APC9047		1	150	3214	11.1
			2	240	4208	22.2
			3	320	4910	33.3
			4	400	5528	44.4
			5	470	6042	55.5
			6	530	6385	66.6
			7	580	6700	77.7
			8	640	7050	88.8
			9	690	7337	99.9
		100%	10.6	770	7800	117.66
	APC1047		1	170	2820	11.1
			2	260	3545	22.2
			3	340	4122	33.3
			4	420	4500	44.4
			5	490	4860	55.5
			6	550	5108	66.6
			7	600	5322	77.7
			8	660	5545	88.8
			9	710	5734	99.9
			10	740	5905	111
			12	820	6197	133.2
		100%	14.4	920	6550	159.84
14.8	APC8038		1	170	4611	14.8
			2	280	5931	29.6
			3	370	6848	44.4
			4	440	7457	59.2
			5	510	7971	74
			6	590	8562	88.8
			7	660	8905	103.6
			8	710	9291	118.4
			9	770	9617	133.2
			10	830	9968	148
		100%	12	920	10448	177.6
	APC9047		1	180	3591	14.8
			2	290	4500	29.6
			3	380	5348	44.4
			4	450	5905	59.2
			5	520	6385	74
			6	600	6822	88.8
			7	680	7285	103.6
			8	730	7628	118.4
			9	800	7988	133.2
			10	860	8254	148
			12	970	8811	177.6
			14	1060	9130	207.2
		100%	15.2	1110	9420	224.96

Item Packing

-LD-POWER 2212M 900KV X 1
